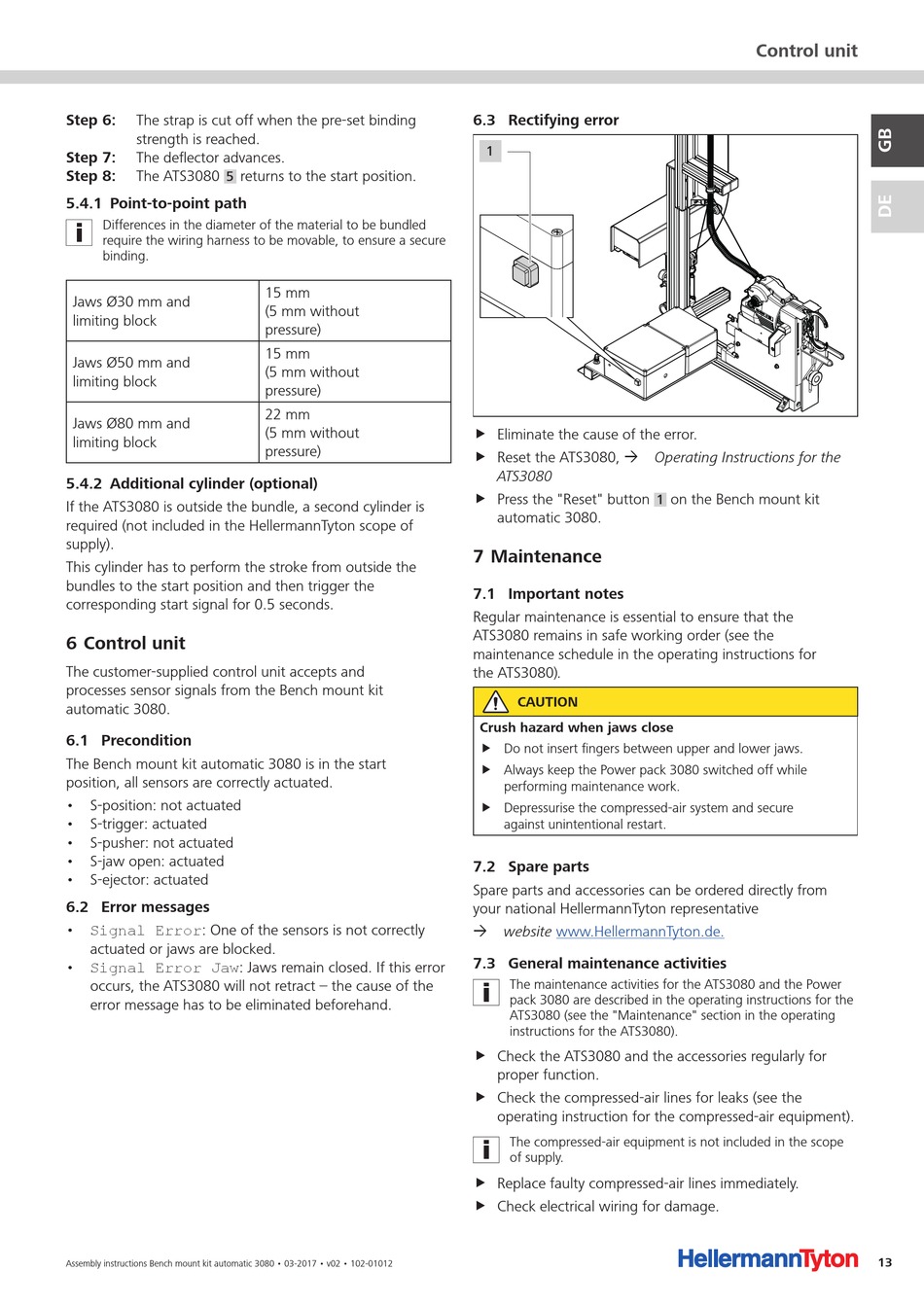

Step 6: The strap is cut off when the pre-set binding
strength is reached.
Step 7: The deflector advances.
Step 8: The ATS3080
5
5 .4 .1 Point-to-point path
Differences in the diameter of the material to be bundled
require the wiring harness to be movable, to ensure a secure
binding.
Jaws Ø30 mm and
limiting block
Jaws Ø50 mm and
limiting block
Jaws Ø80 mm and
limiting block
5 .4 .2 Additional cylinder (optional)
If the ATS3080 is outside the bundle, a second cylinder is
required (not included in the HellermannTyton scope of
supply).
This cylinder has to perform the stroke from outside the
bundles to the start position and then trigger the
corresponding start signal for 0.5 seconds.
6 Control unit
The customer-supplied control unit accepts and
processes sensor signals from the Bench mount kit
automatic 3080.
6 .1 Precondition
The Bench mount kit automatic 3080 is in the start
position, all sensors are correctly actuated.
• S-position: not actuated
• S-trigger: actuated
• S-pusher: not actuated
• S-jaw open: actuated
• S-ejector: actuated
6 .2 Error messages
• Signal Error: One of the sensors is not correctly
actuated or jaws are blocked.
• Signal Error Jaw: Jaws remain closed. If this error
occurs, the ATS3080 will not retract – the cause of the
error message has to be eliminated beforehand.
Assembly instructions Bench mount kit automatic 3080 • 03-2017 • v02 • 102-01012
returns to the start position.
15 mm
(5 mm without
pressure)
15 mm
(5 mm without
pressure)
22 mm
(5 mm without
pressure)
6 .3 Rectifying error
1
f Eliminate the cause of the error.
f Reset the ATS3080, à Operating Instructions for the
ATS3080
f Press the "Reset" button
automatic 3080.
7 Maintenance
7 .1 Important notes
Regular maintenance is essential to ensure that the
ATS3080 remains in safe working order (see the
maintenance schedule in the operating instructions for
the ATS3080).
CAUTION
Crush hazard when jaws close
f Do not insert fingers between upper and lower jaws.
f Always keep the Power pack 3080 switched off while
performing maintenance work.
f Depressurise the compressed-air system and secure
against unintentional restart.
7 .2 Spare parts
Spare parts and accessories can be ordered directly from
your national HellermannTyton representative
à website www.HellermannTyton.de.
7 .3 General maintenance activities
The maintenance activities for the ATS3080 and the Power
pack 3080 are described in the operating instructions for the
ATS3080 (see the "Maintenance" section in the operating
instructions for the ATS3080).
f Check the ATS3080 and the accessories regularly for
proper function.
f Check the compressed-air lines for leaks (see the
operating instruction for the compressed-air equipment).
The compressed-air equipment is not included in the scope
of supply.
f Replace faulty compressed-air lines immediately.
f Check electrical wiring for damage.
Control unit
on the Bench mount kit
1
