8 .3 Control boxes

Voltage supply 24 V
Compressed air supply 5–7 bar, oil-free
Compressed air con- with stroke, dia. 80 jaws approx. 0.4 m³/h
sumption rate at 5 bar inlet pressure, 1500 cycles/h

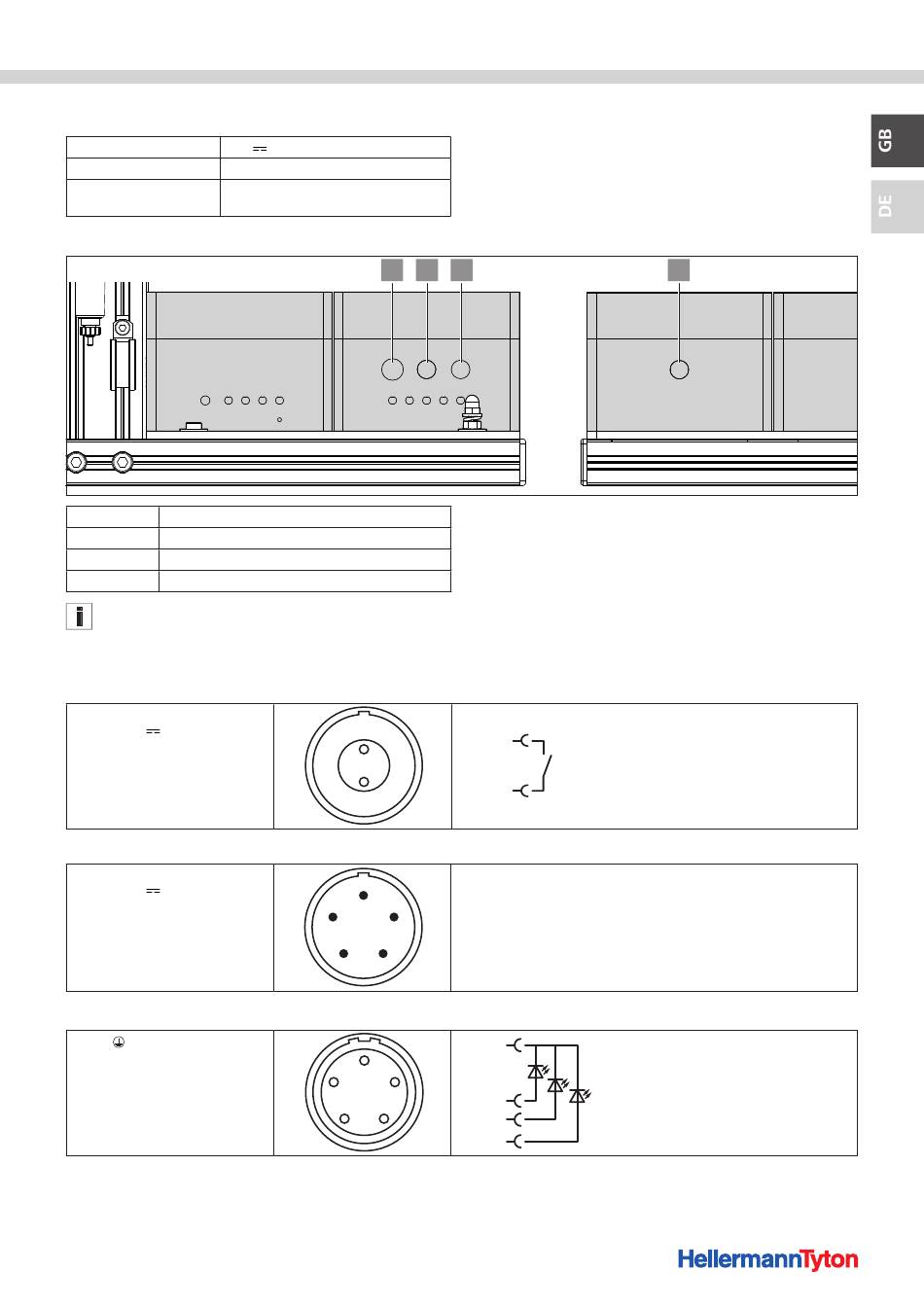

8 .3 .1 Interface overview, control boxes

X1 Control unit, customer-supplied
X2 Control unit, customer-supplied
X3 Control unit, customer-supplied
X4 Blanking plug
See circuit diagram for pinouts.

8 .3 .2 Connector pinouts, control boxes

Socket X1
PIN 1 = start signal
PIN 2 = +24 V
Socket X2
PIN 1 = 0V
PIN 3 = +24 V
Socket X3
PIN 1 =
PIN 2 = 0 V
PIN 3 = Error signal
PIN 4 = Error jaw
PIN 5 = OK signal
Assembly instructions Bench mount kit automatic 3080 • 03-2017 • v02 • 102-01012
, max. 500 mA
X1 X2
1
2
1
5 2
4 3
1
2 5
3 4
X3
PIN 1
Start
PIN 2
Power supply Bench mount kit automatic 3080
PIN 2
PIN 3
PIN 4
PIN 5
Technical data
X4
