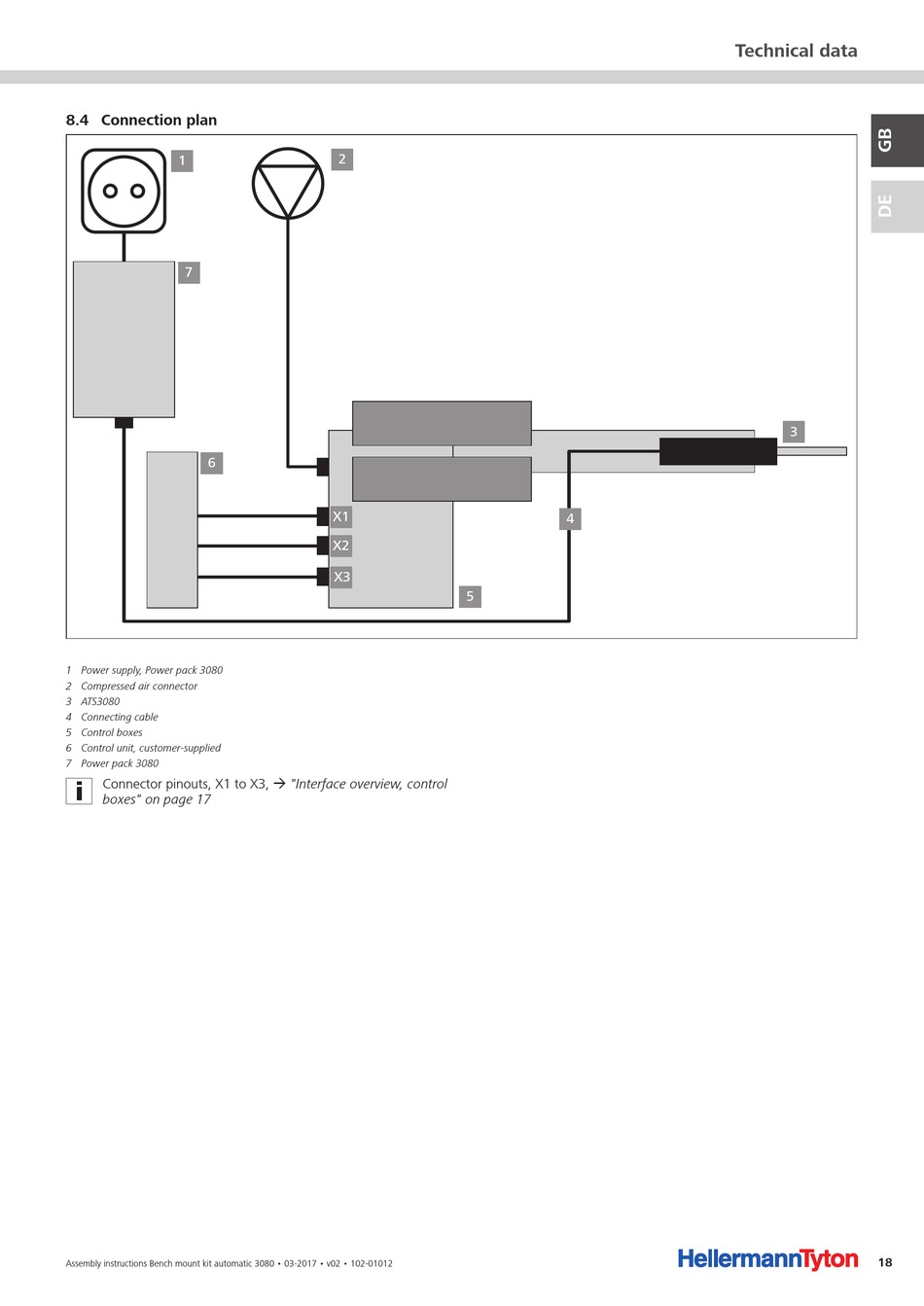

8 .4 Connection plan
1
7
6
1 Power supply, Power pack 3080
2 Compressed air connector
3 ATS3080
4 Connecting cable
5 Control boxes
6 Control unit, customer-supplied
7 Power pack 3080
Connector pinouts, X1 to X3, à "Interface overview, control
boxes" on page 17
Assembly instructions Bench mount kit automatic 3080 • 03-2017 • v02 • 102-01012
2
X1
X2
X3
5
Technical data
4
3
