3.4 Installation example

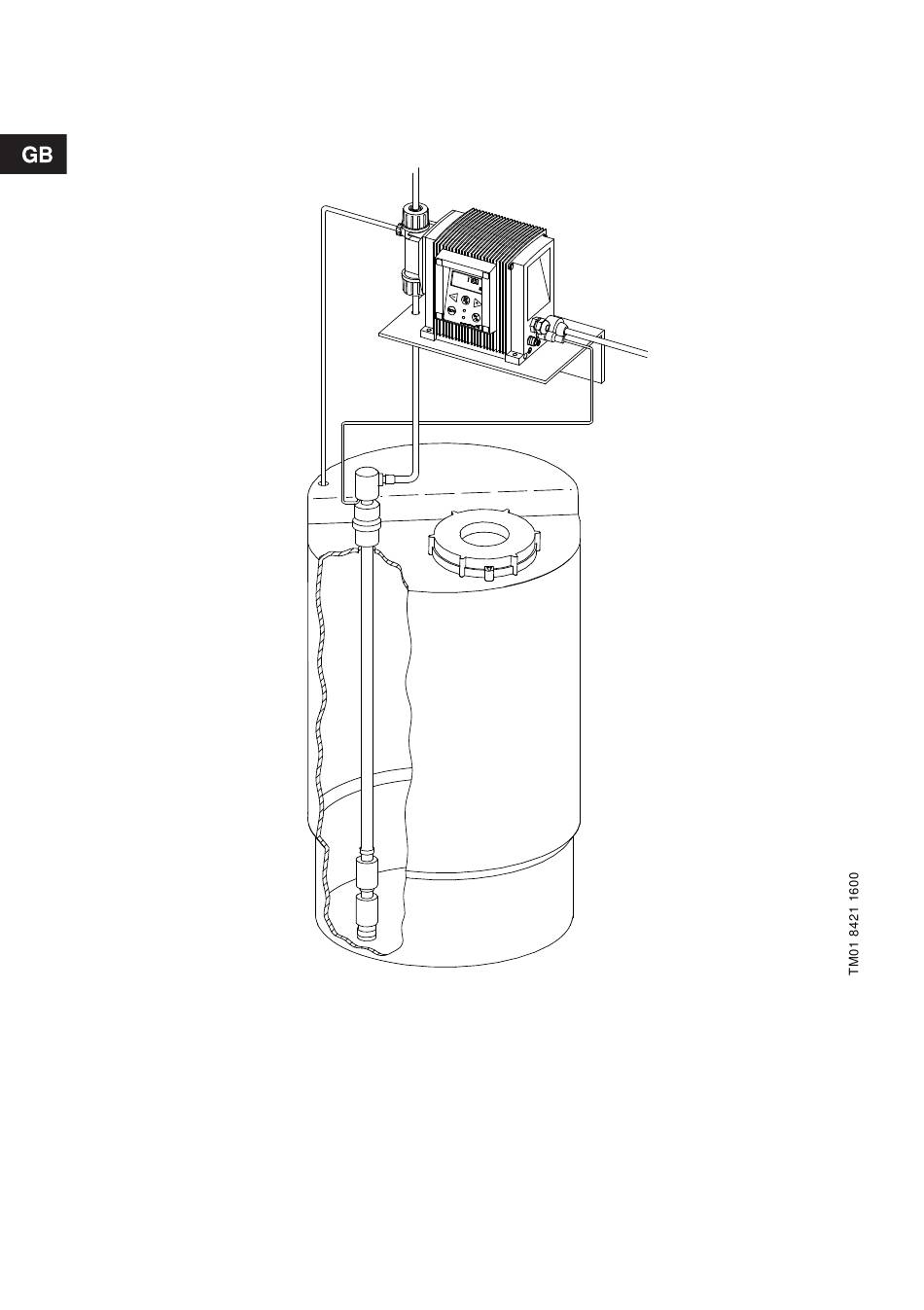

The drawing in fig. 2 shows an installation example.
The DMS pump can be installed in many different ways. The sketch below shows an example with side-
fitted control panel. The tank is a Grundfos chemical tank with a Grundfos level control unit.
Fig. 2
3.5 Electrical connection
• The electrical connection of the pump should be
carried out by qualified persons in accordance
with local regulations.
• For electrical data of the pump, see section 2.2.
• Do not lay signal cables, if any, together with
power cables.
