4. Functions

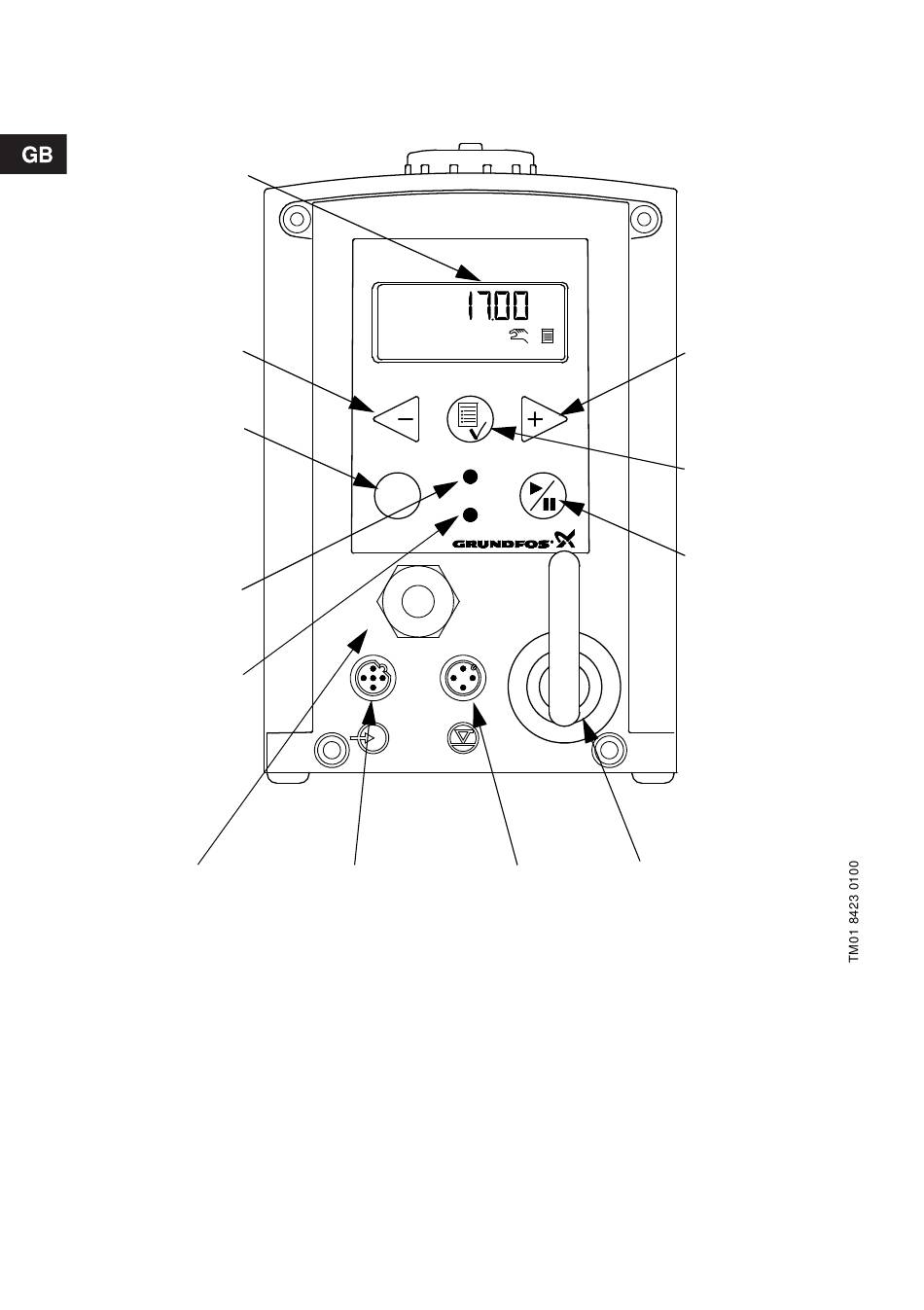

4.1 Control panel
LCD display,
see section 4.6
Navigation/
settings,
see section 4.6
Max. capacity
(priming),
see section 4.3
Green
indicator light,
see section 4.5
Red
indicator light,
see section 4.5
Connection
alarm relay.
Control variant
"AR" only,
see section 4.5
Fig. 4
10
100%
M12 connection
pulse/analog input,
see section 4.4
ml/h
M12 connection Mains connection
level control,
see section 4.4
Navigation/
settings,
see section 4.6
Menu,
see section 4.6
On/off button,
see section 4.6
