SIMOLINK Switch
5

Connections

5.1

Connector X1

Siemens AG GWE-477 762 4070.76 J
SIMOVERT MASTERDRIVES
02.2001
The SIMOLINK Switch features
♦ a connector for supplying the module power and mode activation via
binary inputs
♦ four SIMOLINK fiber-optic cable connections, each with one transmit
and one receive socket.
The 6-pin connector is on top of the housing. The 24 V power supply for
the SIMOLINK Switch and the mode activation signals (via binary
inputs) are connected to X1.
CH 1
CH 2
CH 3
CH 4
M
+24 V
Socket X1

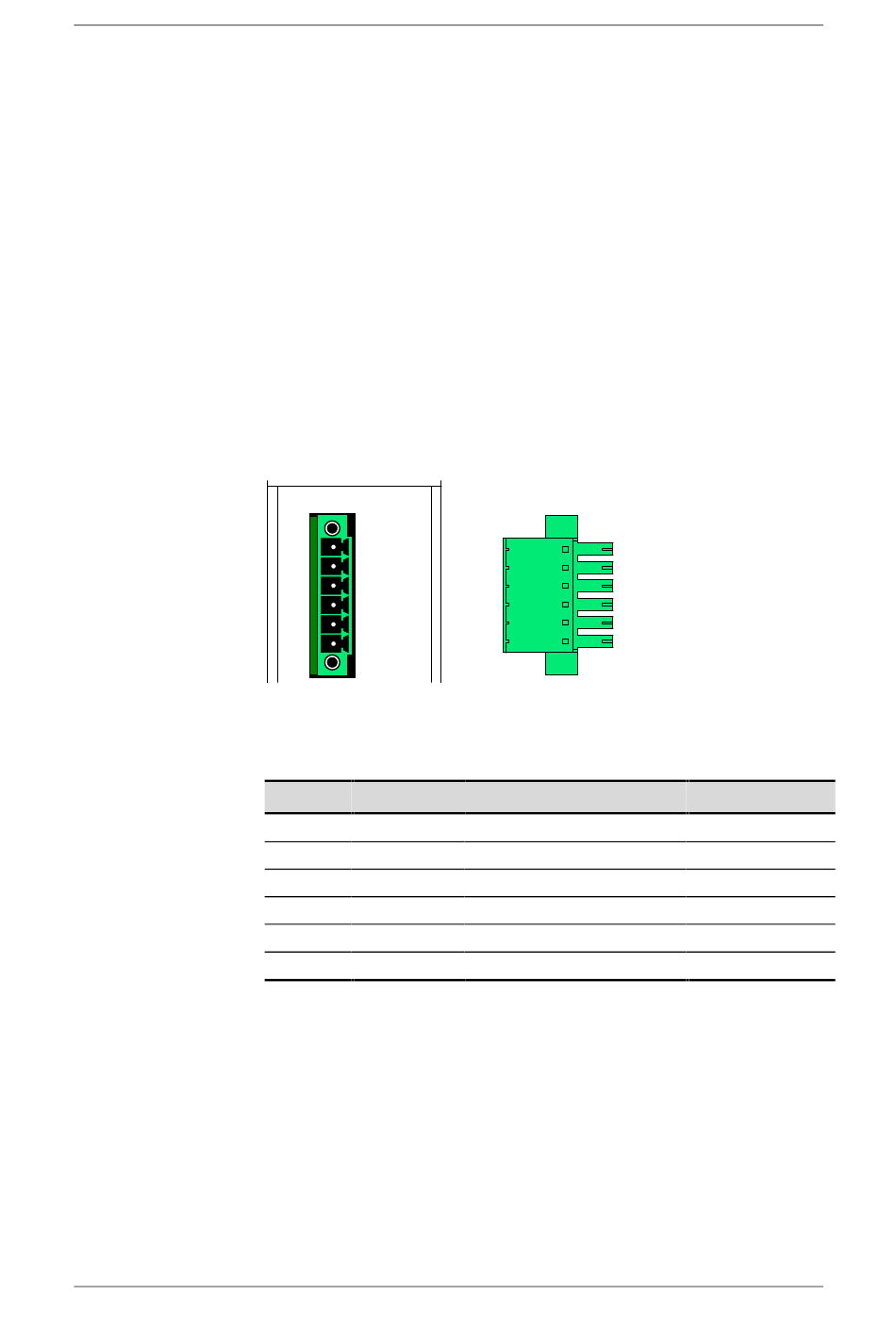

Fig. 5-1
Terminal Designation
1 CH1
2 CH2
3 CH3
4 CH4
5 M
6 +24 V
Connectable cross-section: 1.5 mm
Terminal 1 is the terminal to the rear of the module top plate (see plan view).
Table 5-1 Connector assignments
Operating Instructions
Connector
Meaning
Activation of SLS mode CH1
Activation of SLS mode CH2
Activation of SLS mode CH3
Activation of SLS mode CH4
Ground
24 V voltage supply
2
(AWG 16)
Connections
Range
24 V, approx. 7 mA
24 V, approx. 7 mA
24 V, approx. 7 mA
24 V, approx. 7 mA
+21 ... 28 V
5-1
