Installation

4.1

EMC measures

NOTE
4.2

Housing

Siemens AG GWE-477 762 4070.76 J
SIMOVERT MASTERDRIVES
02.2001
The SIMOLINK Switch module is snapped onto an EN 50022-compliant
TS 35 top-hat rail. The requisite mechanical mounting elements are
fitted in the housing.
The module is connected to ground via the top-hat rail. The ground
connection between the rail and the equipotential bonding conductor
must be made by the end-user during installation.
For further information, please refer to Chapter "Instructions for Design
of Drives in Conformance with EMC Regulations" of the SIMOVERT
MASTERDRIVES Compendium Motion Control, Order No.:
6SE7087-6QX50.

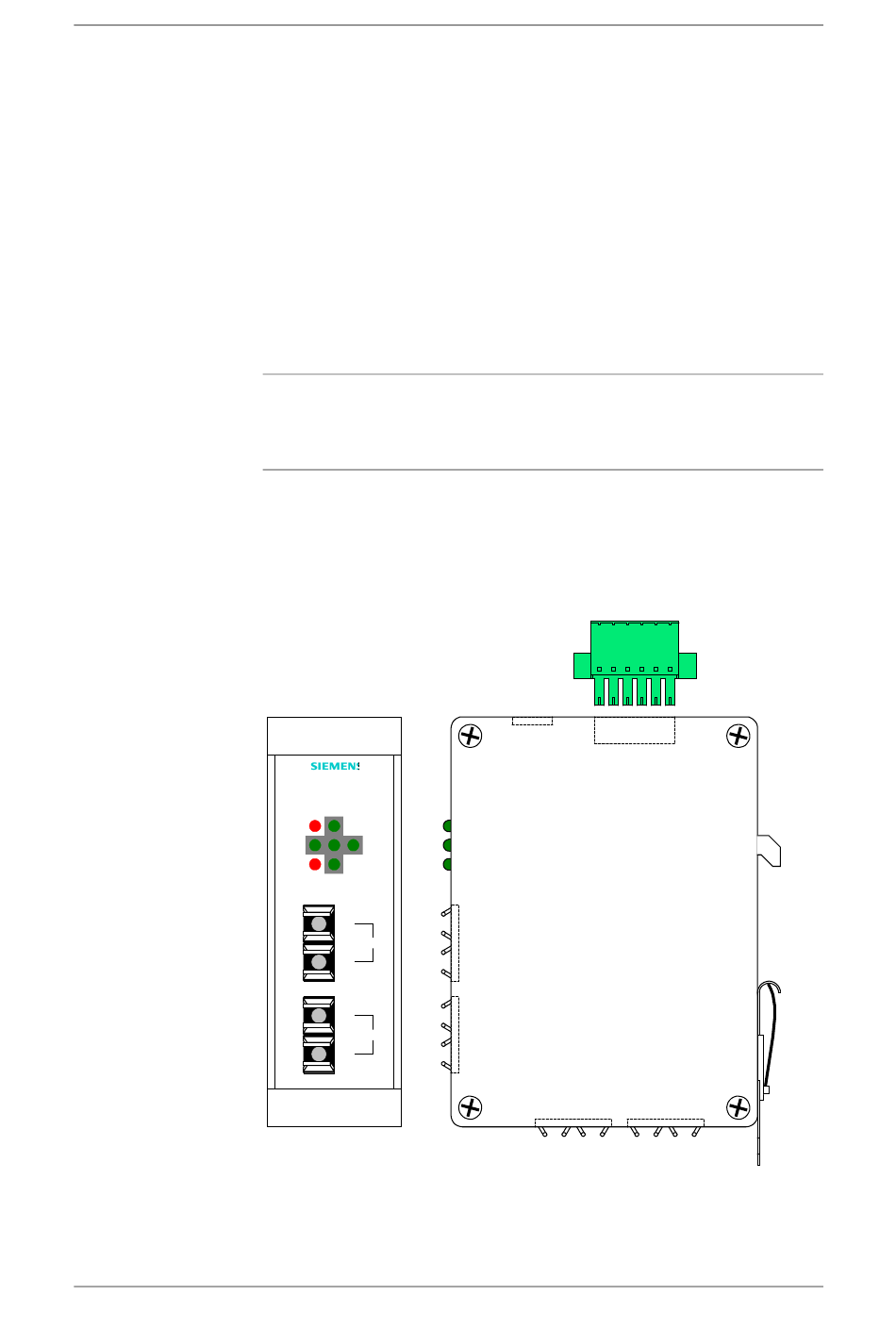

The following diagrams show a schematic illustration of the housing
and the layout of connections and operating elements.
SIMOLINK SWITCH SLS
CH 1
LOC
CH 4 CH 3
OFF
CH 2
RX
CH 3
TX
RX
CH 4
TX
Front view
Fig. 4-1
Operating Instructions
Installation
Side view
4-1
