SET-UP INSTRUCTIONS
STEP 5

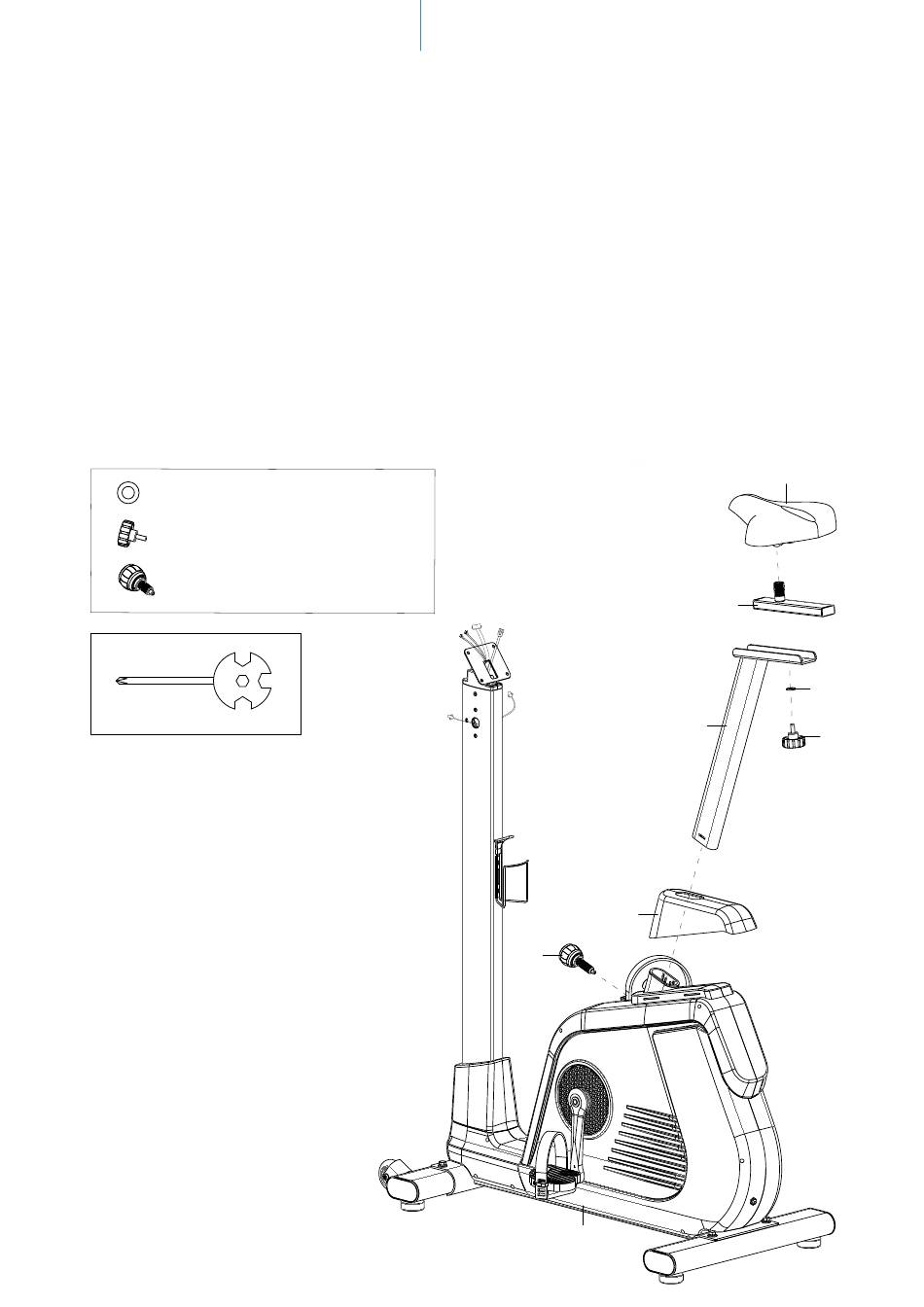

Attach the saddle (34) to the saddle adjuster (31) and then the saddle adjuster (31) to the seat
post (5) using the washer (11) and the quick adjuster (29).
Place the cover (28) on the main frame (1) as shown below and then fix the seat post (5) in the
desired position using the quick adjuster (27).
You can later adjust the seat height and the horizontal saddle position to your requirements by
loosening and refastening the quick adjusters (27 or 29) in the desired position.
However, make sure that the quick adjusters are always guided through a hole and tightened
securely and that the marked maximum positions (STOP mark on the tube) are never exceed-
ed.
#11
#30 Ф8*Ф20*2.0
#29 M8*20 L20
#27 M16*1.5 L27
x 1
38
#30 Ф8*Ф20*2.0
#29 M8*20 L20
#27 M16*1.5 L27
x 1
x 1
x 1
28
27
34
31
11
5
28
29
27
1
34
31
11
5
29
