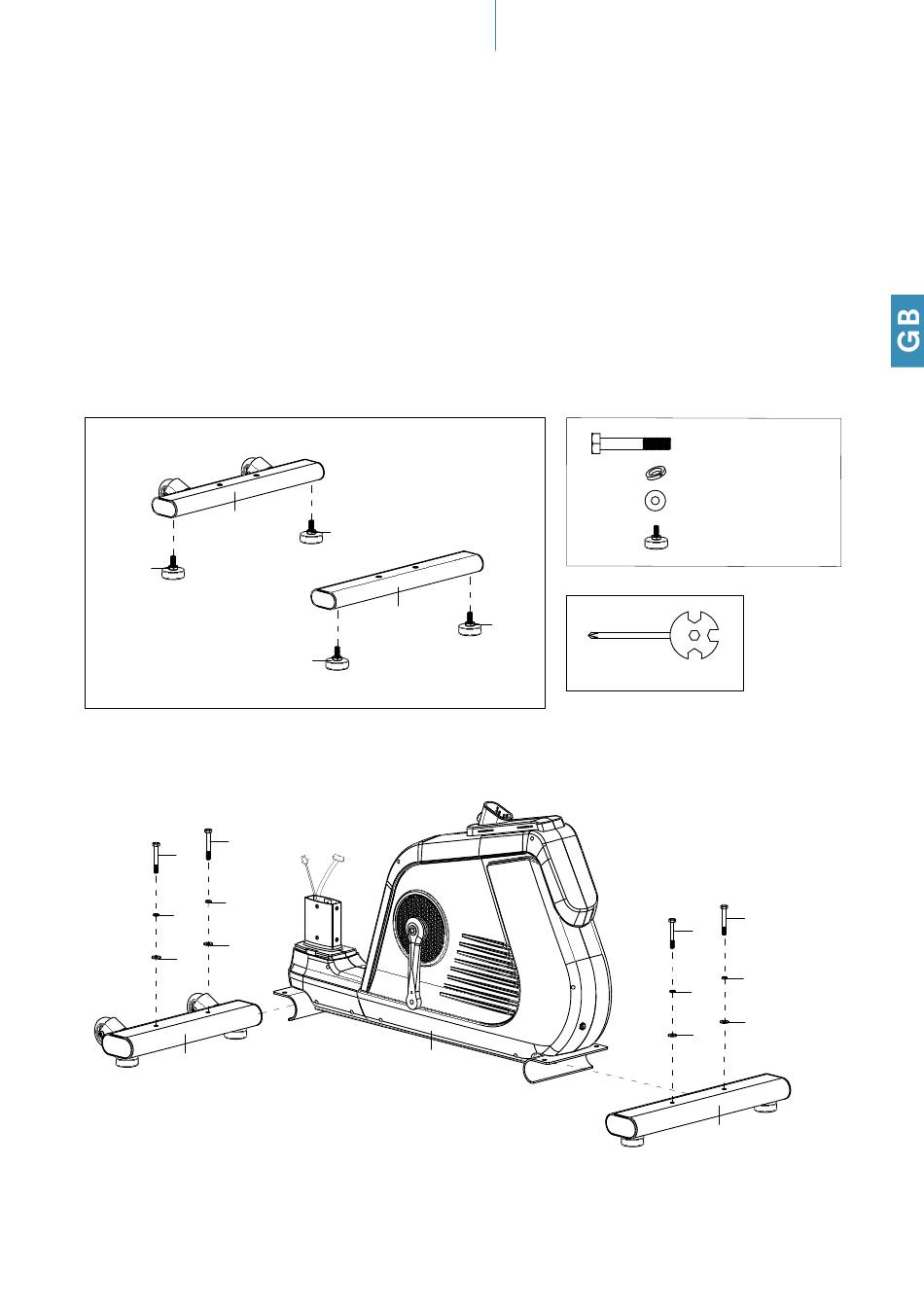

STEP 2
Attach the 4 adjustable feet (8) to the front (3) and rear (4) feet as shown.
Loosen the 4 screws (13), spring washers (12) and washers (11) from the two feet (3/4) and then
mount them with these parts on the main frame (1).
The adjustable feet (8) are used later to ensure that the appliance can be levelled.
3
2
8
1
3
8
8
13
13
12
12
11
11
3
35
SET-UP INSTRUCTIONS
4
8
1
x 4
#13 M8*65
x 4
#12 Ф8
x 4
#11 Ф8*Ф20*1.5
x 4
#8 M10*30*Ф52*19
x 1
13
13
12
12
11
11
4
8
