3.1

Tube Set

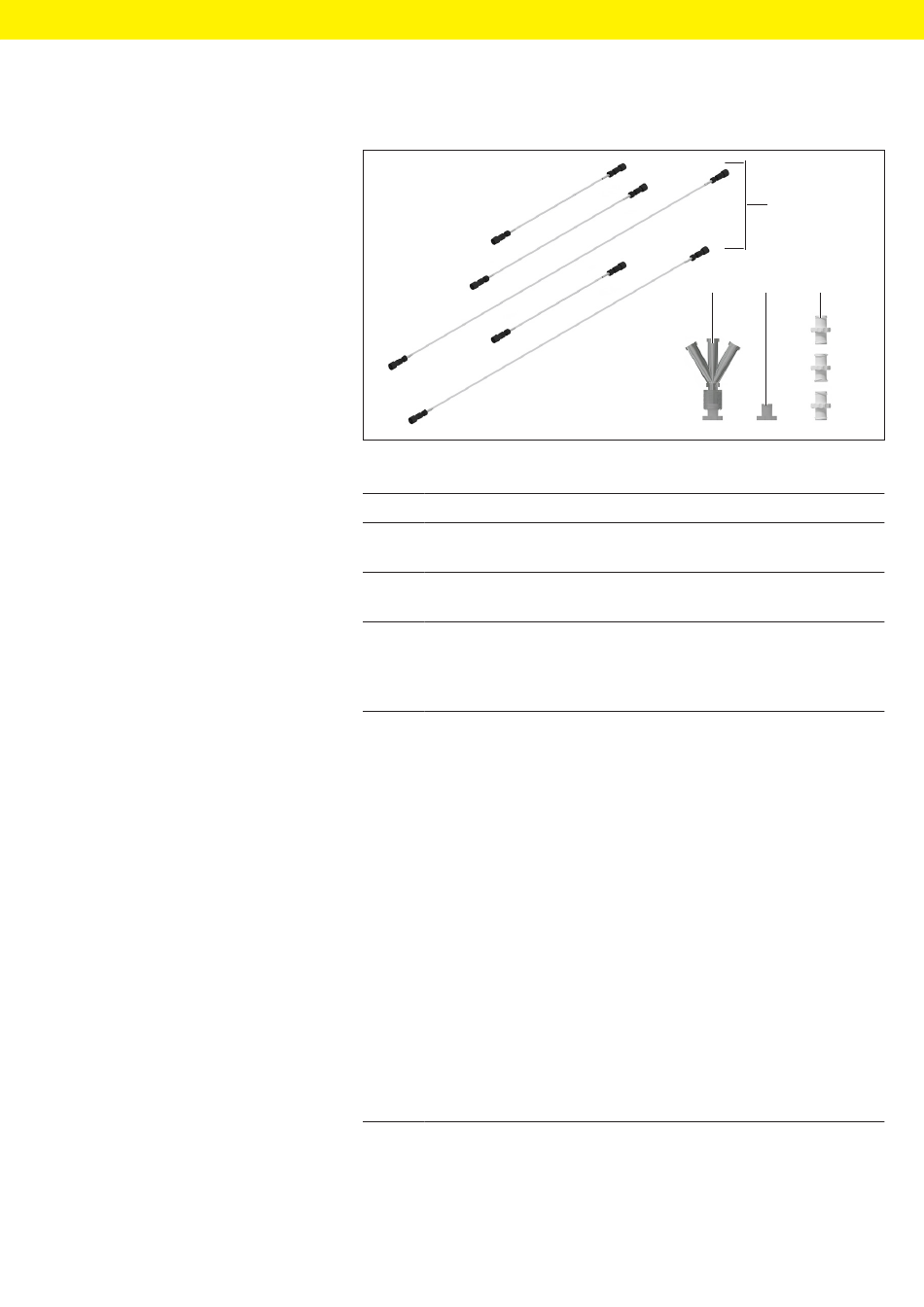

Fig. 2: Adapter tube set
Pos . Designation
1 Female to Female
Luer Lock connector
2 Female Luer thread-
ed cap
3 CIP fitting
4 Tube set
Installation Instructions Ambr
Product Overview
3 2
Description
Used to connect the tube set to the
ports on the filters for some filters.
Used to block the unused permeate
port on some filters.
4-way Luer fitting used for Clean-In-
Place (CIP) after the filtration process.
Supplied with a Female Luer threaded
cap to block the 4 port.
th
Enables connection of the filter to the
tube interface block and consists of
5 different lengths of tubing to accom-
modate various filter sizes:
— 1 x feed tube (common to all filters)
— 2 x retentate tubes (one short and
one long)
— 2 x permeate tubes (one short and
one long)
Details on which tube to use with each
filter are provided in chapter "3.2 Tube
Length for Filters", page 10.
Each tube is labeled "FEED", "RET" or
"PERM" to identify the corresponding
port. Each end of each tube is equipped
with compression and Luer fittings for
connection to the tube interface block
and the filter.
CF Adapter Kit
®
4
1
9
