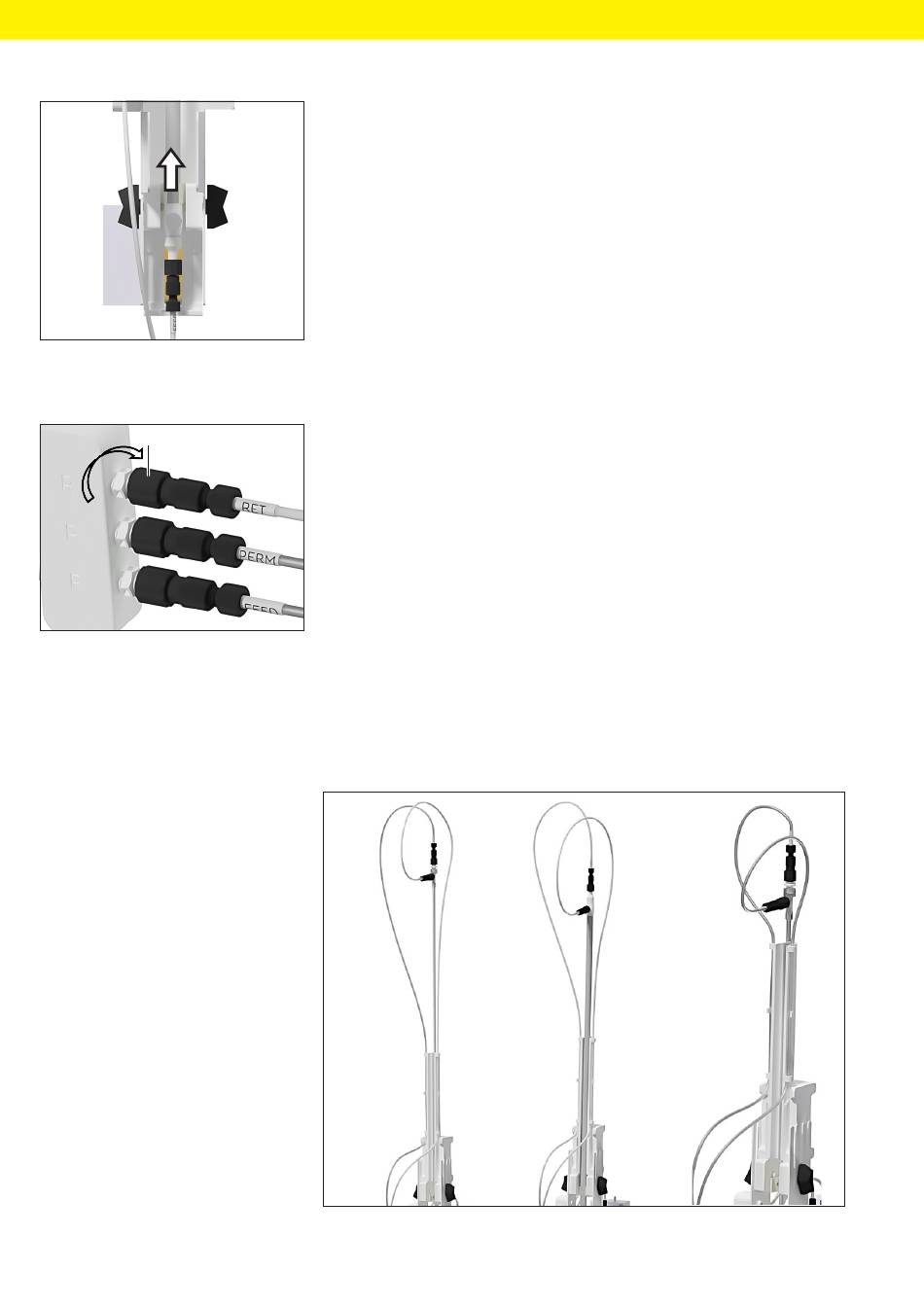

Adjust the height of the top filter clamp in the slot to suit the hollow fiber
t
filter.
The clips on the filter clamps can accommodate the "large" diameter
y
Hollow Fiber TFF Modules as well as the other "small" diameter hollow
fiber filters.
Connect the tubing from the hollow fiber filter to its corresponding port
t
on the tube interface block.
Engage the Luer fittings into the corresponding ports of the filter and | or
t
the tube interface block:
Screw in the Luer Lock rings (1) on the Luer fittings.
t
Ensure the Luer fittings are engaged in the corresponding ports on
t
the tube interface block, and tighten the Luer Lock rings.
The tubes are labeled "RET", "PERM" and "FEED". Ensure to connect
t
the correct tube to the correct port on the tube interface block.
Clip the tube interface block onto the side of the holder using the mag-
t
nets provided.
If using a hollow fiber filter with long retentate and permeate tubing (see
t
chapter "3.2 Tube Length for Filters", page 10), fit the filter guide on
top of the top filter clamp and thread the retentate and permeate tubing
on the sides of the filter guide.
The inserted adapter should look like this:
y
CF Adapter Kit
®
