Operation

12 Installation Instructions Ambr
5 Operation
5.1

Inserting the Adapter

Requirements
The operator is prompted to use 1 or more adapters on the screen of the
control unit.
Procedure
NOTICE The product can malfunction due to the use of unsuitable
t
filters! Ensure that the filters are suitable for the product (for suitability,
see chapter "9.3 Approved Sartorius Filters", page 23 | chapter "9.4
Other Approved Filters", page 24).

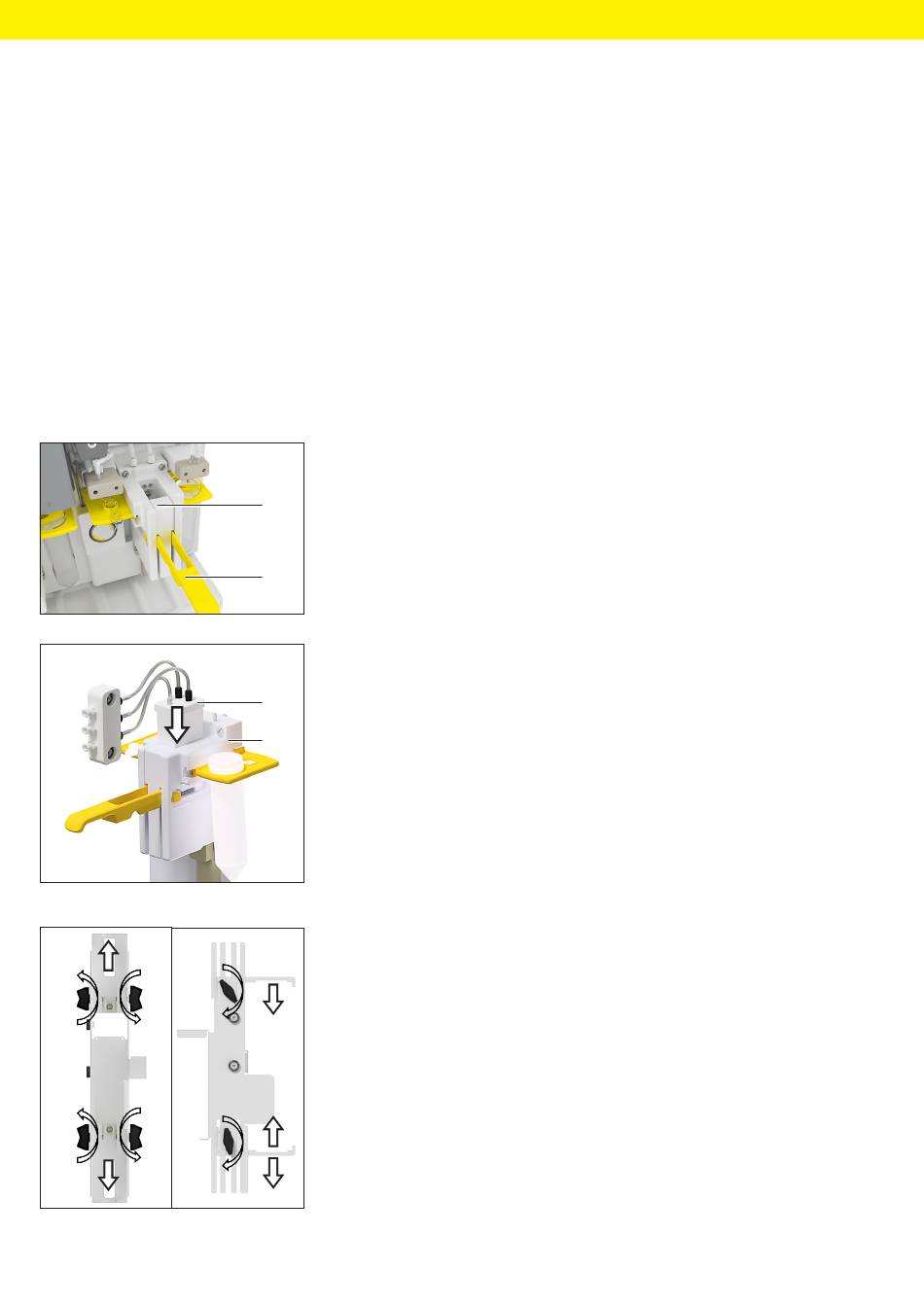

Loosen the filter holder clamp by lifting the handle (2) and pull the pres-
t
sure plate (1) forward.
1
2
Lower only the adapter (1) with the tubing interface block attached from
t
above into the filter holder (2).
The holes in the filter holder must be facing towards the Ambr
y
1
Crossflow module. The letters engraved on top of the adapter should be
the right way up when looking from above.
2
By default, and for shipping purposes, the filter clamps on the holder are
y
set up in the vertical orientation for hollow fiber filters.
To use flat sheet filters, unscrew the thumb screws on each side of the fil-
t
ter clamps at the top and bottom of the holder, to slide the filter clamps
out of the holder.
Turn the filter clamps 90° and reinsert them back in the holder.
t
Tighten the thumb screws to secure them in place.
t
Ensure the top clamp is at the bottom of its slot.
t
The position of the bottom clamp is adjusted depending on the filter
y
used.
