Inserting/replacing feed rollers

General remarks

In order to achieve optimum wire feed, the feed rollers must be suitable for the diameter
and alloy of the wire being welded.
Important! Use only feed rollers that match the welding wire.
An overview of the feed rollers available and their possible areas of use can be found in
the spare parts lists.

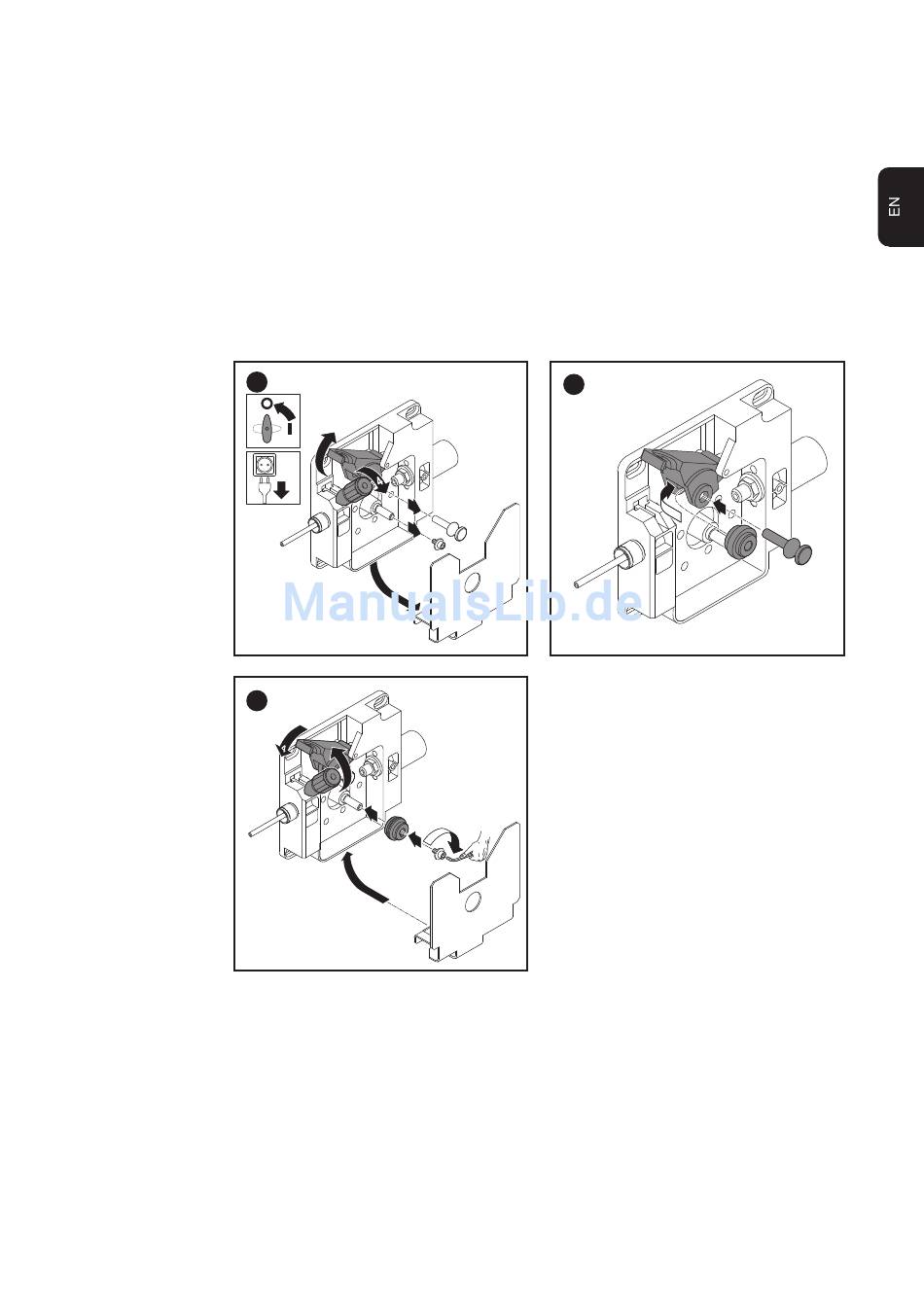

Inserting/repla-
1
cing feed rollers
3
1
5
2
6
7
3
5
1
2
3
2
13
2
1
