Correcting Wire Feed - Fronius VarioStar 2500 Bedienungsanleitung

Correcting wire To ensure that the welding wire is transported properly, it must feed into the torch
feed without rubbing against the sides.

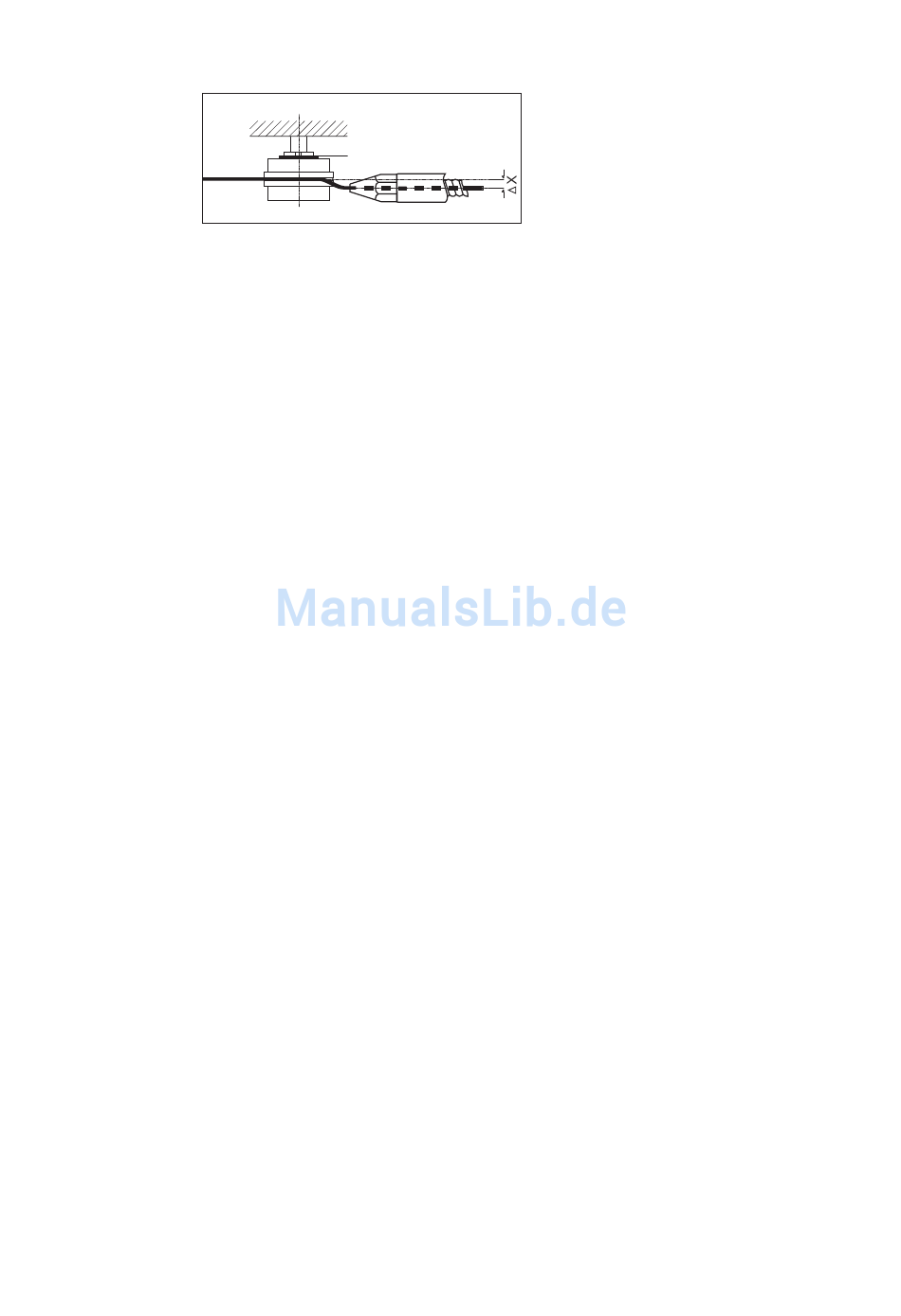

Fig.10 Non-permitted deviation
Note! The height can only be adjusted by Fronius After-Sales Service.
Spacers (10 x 0.1)
14
The wirefeed has been preset to obtain
the best results. If components are re-
placed, e.g. feed rollers, drive motor, etc,
a slight adjustment may be necessary.
The wirefeed can be adjusted by remo-
ving or adding spacers between the drive
roller and Seeger ring.
