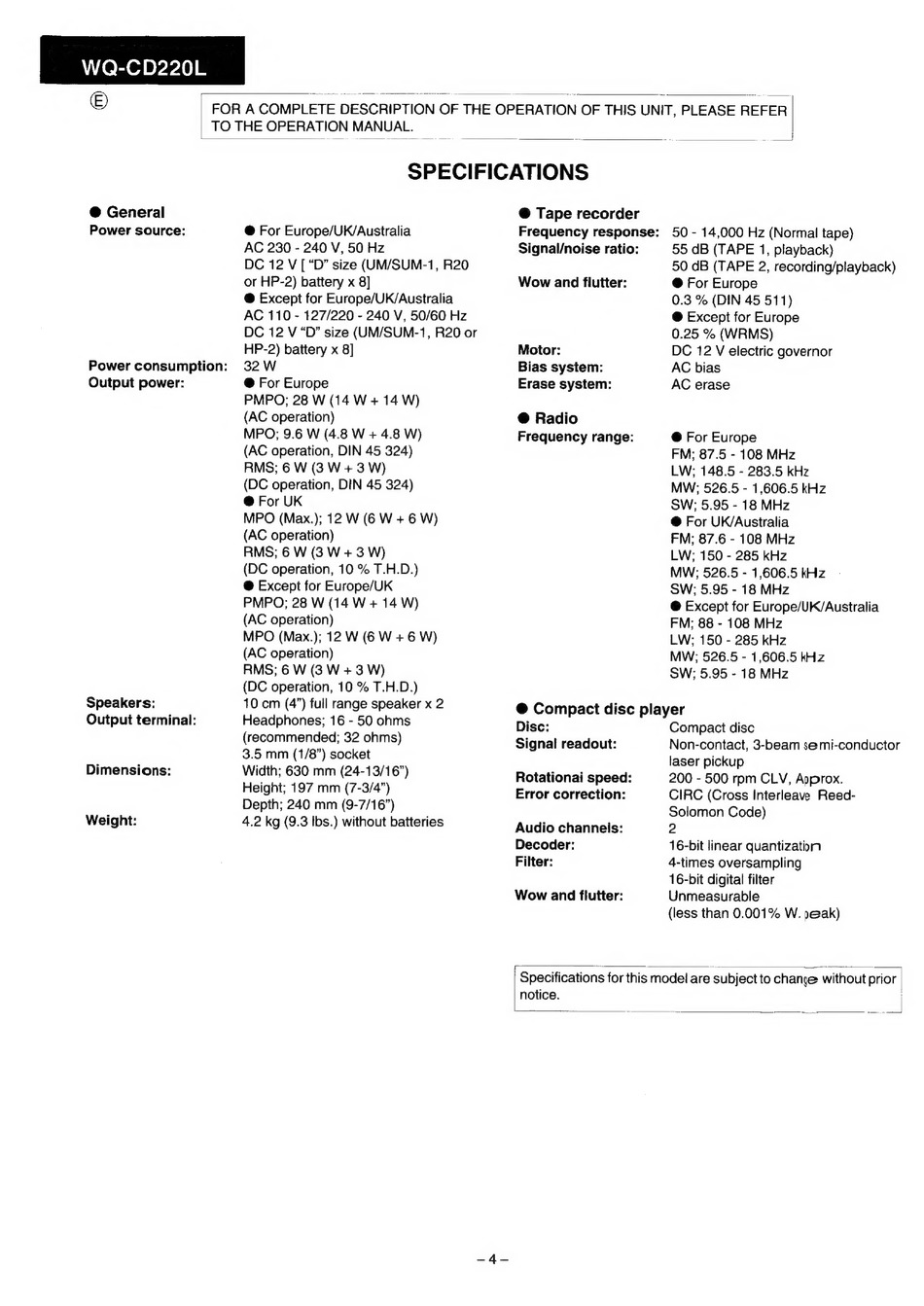

WQ-CD220L
©
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.
@ General
Power source:
Power consumption:
Output power:
Speakers:
Output terminal:
Dimensions:
Weight:
SPECIFICATIONS
@ For Europe/UK/Australia
AC 230 - 240 V, 50 Hz
DC 12 V [ "D' size (UM/SUM-1, R20
or HP-2) battery x 8]
@ Except for Europe/UK/Australia
AC 110 - 127/220 - 240 V, 50/60 Hz
DC 12 V "D" size (UM/SUM-1, R20 or
HP-2) battery x 8]
32 W
@ For Europe
PMPO; 28 W (14 W + 14 W)
(AC operation)
MPO; 9.6 W (4.8 W + 4.8 W)
(AC operation, DIN 45 324)
RMS; 6 W (3 W +3 W)
(DC operation, DIN 45 324)
@ For UK
MPO (Max.); 12 W (6 W + 6 W)
(AC operation)
RMS; 6 W (3 W +3 W)
(DC operation, 10 % T.H.D.)
@ Except for Europe/UK
PMPO; 28 W (14 W + 14 W)
(AC operation)
MPO (Max.); 12 W (6 W + 6 W)
(AC operation)
RMS; 6 W (3 W +3 W)
(DC operation, 10 % T.H.D.)
10 cm (4") full range speaker x 2
Headphones; 16 - 50 ohms
(recommended; 32 ohms)
3.5 mm (1/8") socket
Width; 630 mm (24-13/16")
Height; 197 mm (7-3/4")
Depth; 240 mm (9-7/16")
4.2 kg (9.3 Ibs.) without batteries
@ Tape recorder
Frequency response:
50 - 14,000 Hz (Normal tape)
Signal/noise ratio:
Wow and flutter:
Motor:
Bias system:
Erase system:
@ Radio
Frequency range:
55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/playback)
@ For Europe
0.3 % (DIN 45 511)
@ Except for Europe
0.25 % (WRMS)
DC 12 V electric governor
AC bias
AC erase
@ For Europe
FM; 87.5 - 108 MHz
LW; 148.5 - 283.5 kHz
MW; 526.5 - 1,606.5 kHz
SW; 5.95 - 18 MHz
@ For UK/Australia
FM; 87.6 - 108 MHz
LW; 150 - 285 kHz
MW; 526.5 - 1,606.5 KHz
SW; 5.95 - 18 MHz
@ Except for Europe/UK/Australia
FM; 88 - 108 MHz
LW; 150 - 285 kHz
MW; 526.5 - 1,606.5 kHz
SW; 5.95 - 18 MHz
@ Compact disc player
Disc:
Signal readout:
Rotationai speed:
Error correction:
Audio channels:
Decoder:
Filter:
Wow and flutter:
Compact disc
Non-contact, 3-beam semi-conductor
laser pickup
200 - 500 rom CLV, Approx.
CIRC (Cross Interleave Reed-
Solomon Code)
2
16-bit linear quantization
4-times oversampling
16-bit digital filter
Unmeasurable
(less than 0.001% W. peak)
| Specifications for this model are subject to chanje without prior
notice.
