WQ-CD220L
©

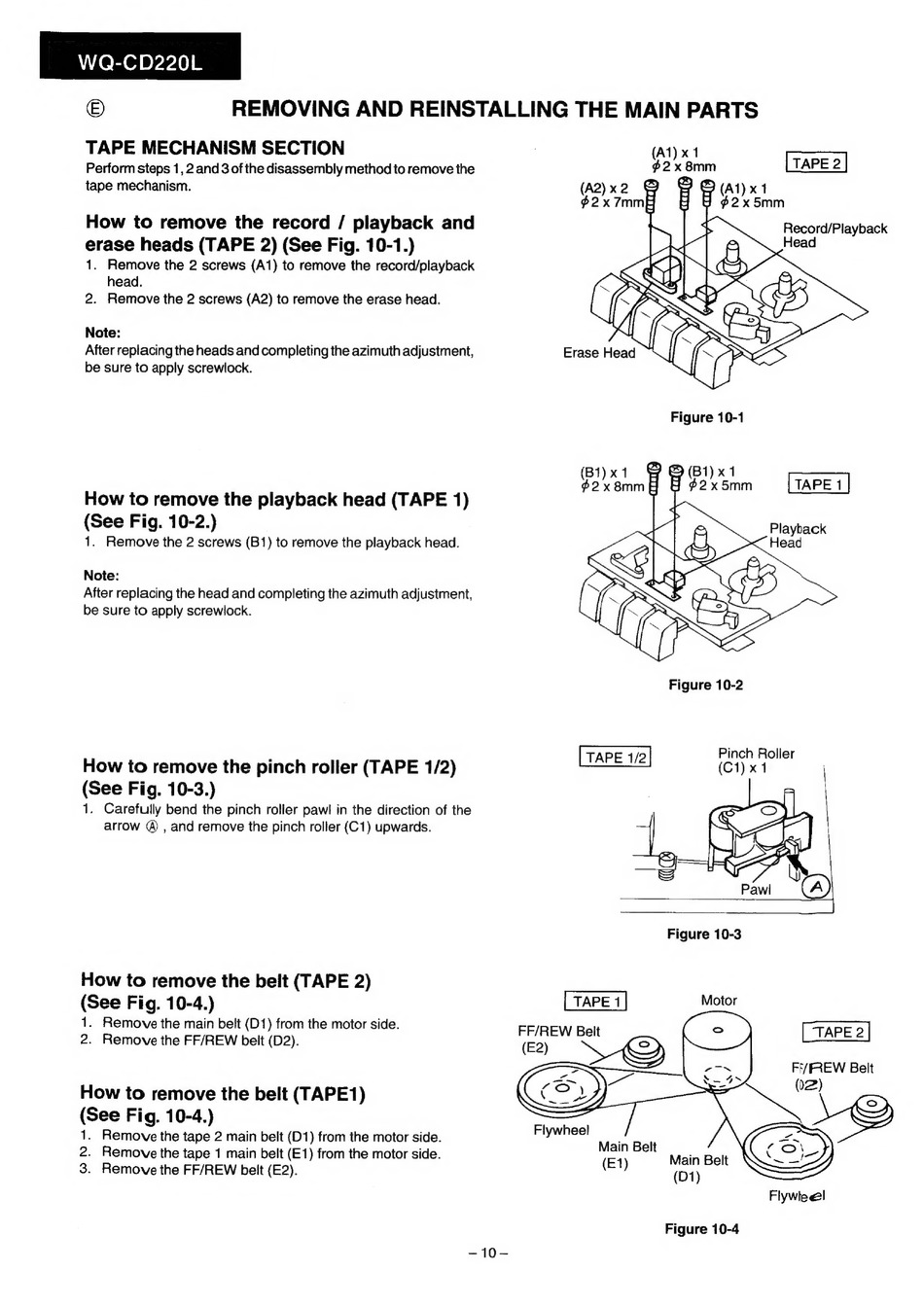

REMOVING AND REINSTALLING THE MAIN PARTS
TAPE MECHANISM SECTION
Perform steps 1, 2 and 3 of the disassembly method to remove the
tape mechanism.
How to remove the record / playback and
erase heads (TAPE 2) (See Fig. 10-1.)
1. Remove the 2 screws (A1) to remove the record/playback
head.
2. Remove the 2 screws (A2) to remove the erase head.
Note:
After replacing the heads and completing the azimuth adjustment,
be sure to apply screwlock.
;
'5mm
Playback
Head
How to remove the playback head (TAPE 1)
(See Fig. 10-2.)
1. Remove the 2 screws (B1) to remove the playback head.
Note:
After replacing the head and completing the azimuth adjustment,
be sure to apply screwlock.
Figure 10-2
.
| TAPE 1/2|
1/2
Pinch Roller
How to remove the pinch roller (TAPE 1/2)
[TAPE 1/2]
(C1) x 1
(See Fig. 10-3.)
1. Carefully bend the pinch roller pawl in the direction of the
arrow @ , and remove the pinch roller (C1) upwards.
How to remove the belt (TAPE 2)
2. Remove the FF/REW belt (D2).
(E2)
Cay
<>
Fi/FREW Belt
(02)
How to remove the belt (TAPE1)
(See Fig. 10-4.)
1. Remove the tape 2 main belt (D1) from the motor side.
(@
Flywheel
~10-
