WQ-CD220L
©)

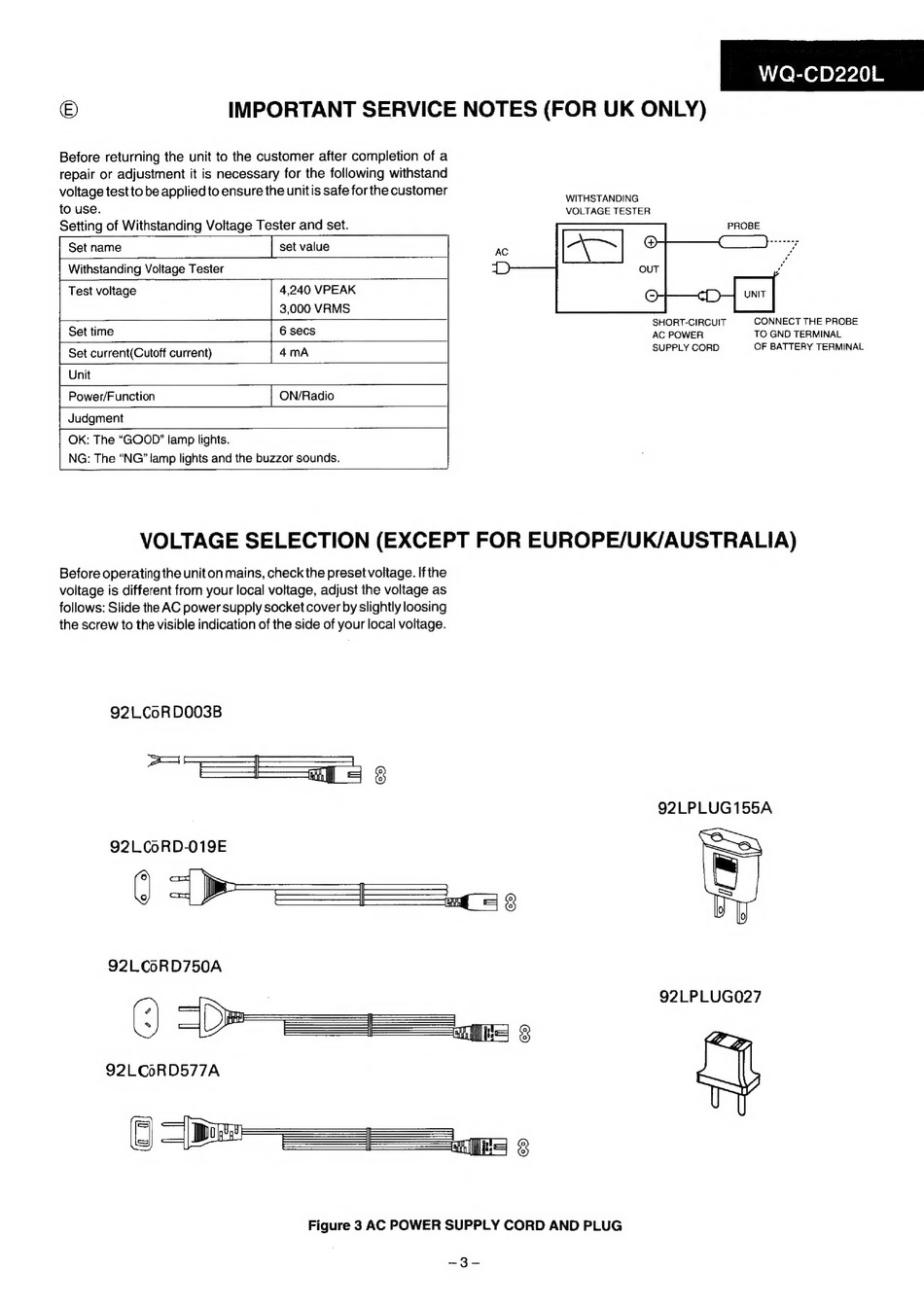

IMPORTANT SERVICE NOTES (FOR UK ONLY)
Before returning the unit to the customer after completion of a
repair or adjustment it is necessary for the following withstand
voltage test to be applied to ensure the unitis safe for the customer
WITHSTANDING
to use.
VOLTAGE TESTER
Setting of Withstanding Voltage Tester and set.
Set name
Z| set value
Withstanding Voltage Tester
Test voltage
4,240 VPEAK
3,000 VRMS
:
SHORT-CIRCUIT
CONNECT THE PROBE
Set time
6 secs
AC POWER
TO GND TERMINAL
Set current(Cutoff current)
4mA
SUPPLY CORD
OF BATTERY TERMINAL
Unit
Power/Function
ON/Radio
Judgment
OK: The "GOOD" lamp lights.
NG: The "NG" lamp lights and the buzzor sounds.
VOLTAGE SELECTION (EXCEPT FOR EUROPE/UK/AUSTRALIA)
Before operating the unit on mains, check the preset voltage. Ifthe
voltage is different from your local voltage, adjust the voltage as
follows: Slide the AC power supply socket cover by slightly loosing
the screw to the visible indication of the side of your local voltage.
92LCoRDOO03B
————— ee
92LPLUG155A
92LCoRD-019E
|
————_—
92LCORD750A
92LPLUG027
Figure 3 AC POWER SUPPLY CORD AND PLUG
age
