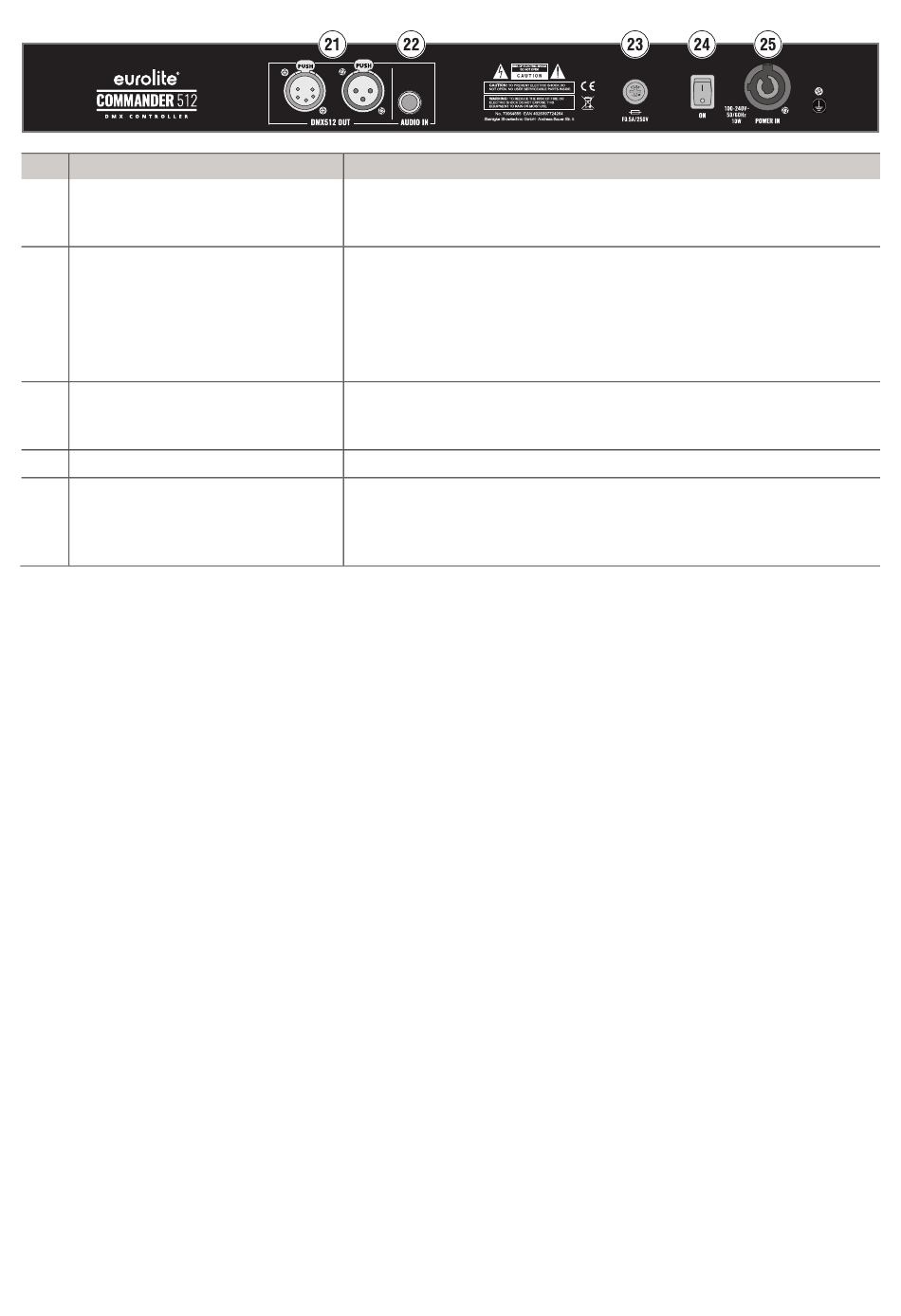

Rear panel
Nr. Element
21 DMX outputs
22 Audio input
23 Fuse holder
24 Power switch
25 Power input
Function
There are 3-pin and 5-pin DMX outputs, the signal is identical on
both sockets. You can use either one or the other output; they are
not designed for simultaneous use.
6.3mm mono jack socket for sound control. The DMX Commander
512 will use its built-in microphone if this socket is not connected.
The sensitivity of the sound control can be set via the menu.
With the DMX Commander 512, as with most lighting consoles,
sound control means that one or more programs with at least two
steps are controlled by a music signal.
Only replace the fuse when the device is disconnected from mains.
Only use fuses of the same rating and power. The correct value is
specified on the device.
Turns the console on and off.
The power supply for the DMX Commander 512 is plugged in here.
You may use a commercially available P-Con or powerCON cable.
The voltage must be between 100 and 240 volts and the mains
frequency must be 50 or 60 Hz.
