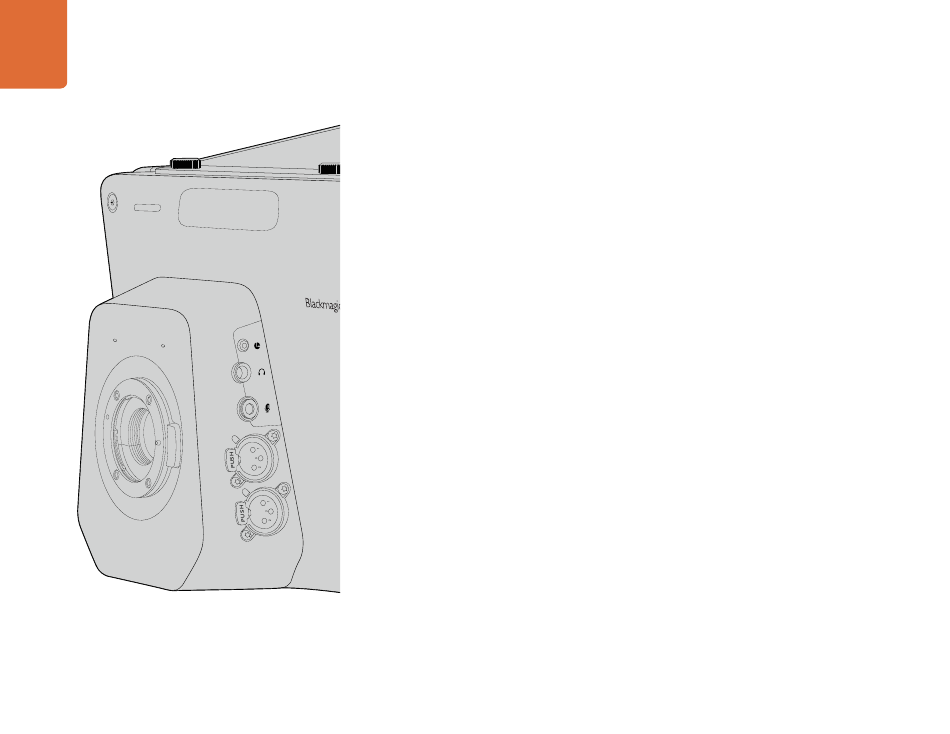

Blackmagic Studio Camera - Left Side

LANC Remote Control
The remote port on your camera is used to remotely control lens focus and iris adjustments when using a
compatible lens.
The port is a 2.5 mm stereo jack using the standard LANC protocol.
Headphones Output
For monitoring program and control room audio with aviation style headsets with "fixed wing" connectors.
Aviation headsets range from single ear models for use in studio environments to full size noise cancelling
models which are suitable for loud concerts or sporting events. Audio is taken from channel 15 and 16 of the
incoming SDI and optical fiber video. Channels 15 and 16 are rarely if ever used during production and so
are very suitable to serve for the audio talkback.
Headphones Microphone Input
For talking to the control room with aviation style headsets. Audio is embedded into channel 15 and 16 of
the SDI and optical fiber output back to the control room.
Audio Inputs
Two channels of professional balanced analog audio is supported via XLR connectors. Use the audio menu
1
to set the input levels for each channel. The inputs support both Mic level inputs and line level inputs and
the input type is also selected from the audio menu. Audio is embedded into Channel 1 and 2 of the
SDI stream.
2
