Getting Started
6
2
11 12
FOCUS IRIS PTT PGM LUT SET
13 14 15 16 17 18 19
23

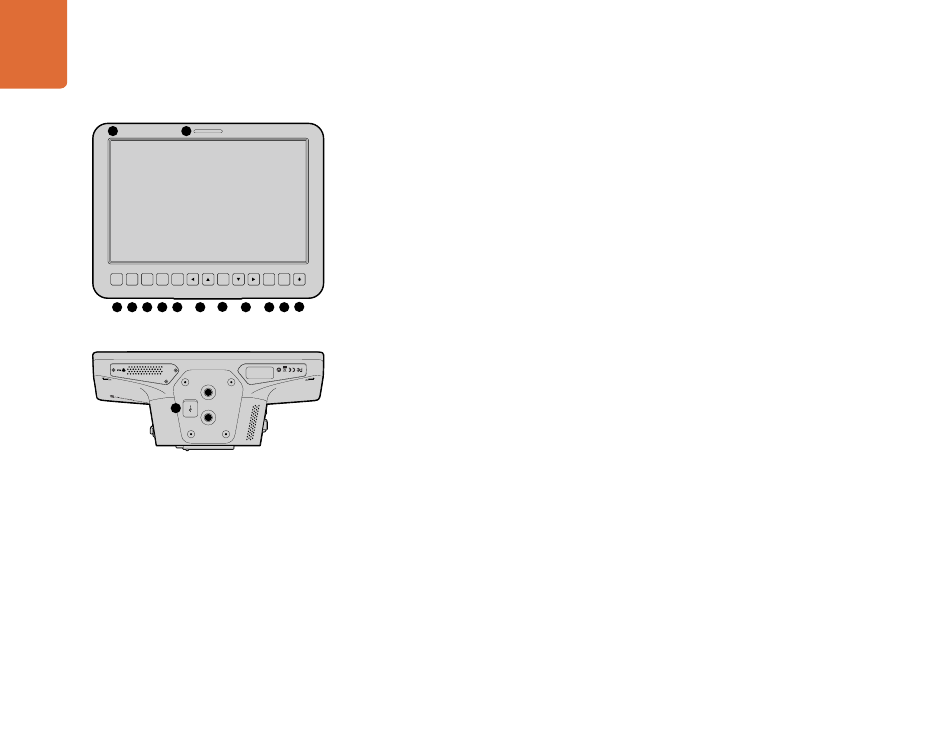

11. 10" LCD
Monitor live camera output or program output, or view the menu. See page 11.
12. REAR TALLY LIGHT
When lit it indicates to the camera operator that their camera is currently "live".
13. FOCUS BUTTON
Press once to autofocus or twice to display focus peaking on the LCD. See page 15.
14. IRIS BUTTON
Press once for auto exposure. See page 15.
15. PUSH TO TALK BUTTON (PTT)
DISPLAY MENU
Press and HOLD to talk. Press twice in quick succession for hands free communication. Press again to revert to the default
18 20 21 22
behavior. See page 16.
16. PROGRAM (PGM) BUTTON
Press to toggle between live camera output and program output from a switcher control room. See page 16.
17. LOOK UP TABLE (LUT) BUTTON
Currently not implemented.
18. MENU NAVIGATION BUTTONS
Navigate the menu on the LCD. See page 16.
19. SET BUTTON
Use this button to confirm your menu selection
20. DISPLAY BUTTON
Press this button to toggle overlays on and off. See page 16.
21. MENU BUTTON
Access the menu on the LCD. See page 11.
22. POWER BUTTON
Press the power button to turn on the Blackmagic Studio Camera. Press and hold the button to turn the camera off.
See page 7.
23. USB CONNECTOR
OPTICAL OUT
OPTICAL IN USB mini B port for camera firmware updates. See page 18.
SDI OUT
SDI IN
REF
12V
s. See page 16.
