Introducing Blackmagic Studio Camera

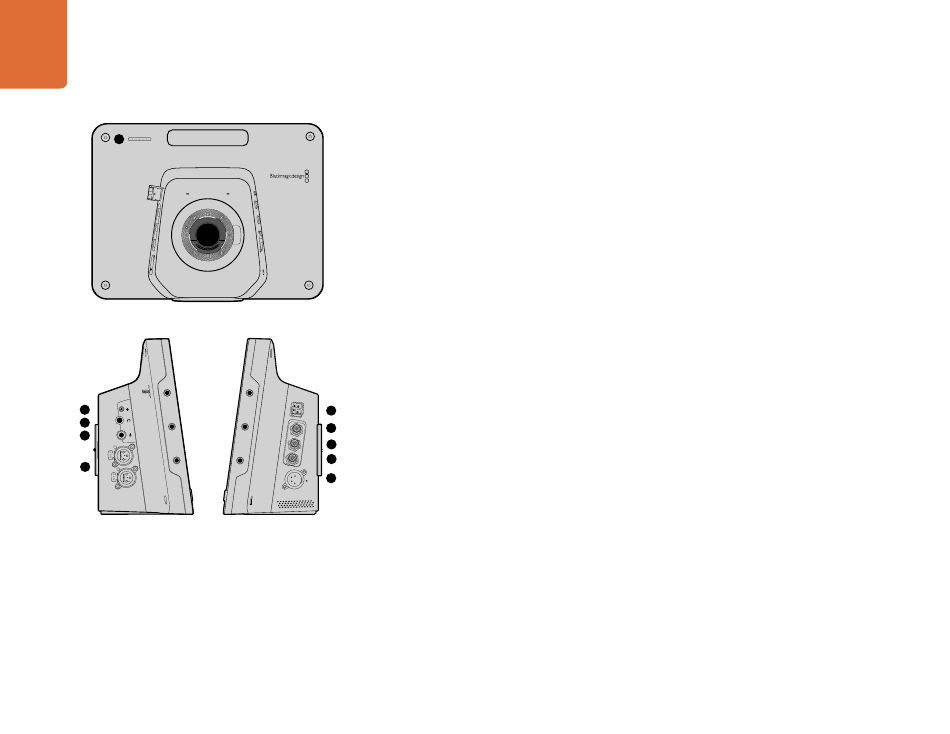

Features
1. FRONT TALLY LIGHT
Indicates to the on-air talent which camera is currently "live". See page 13.
2. LANC REMOTE
2.5mm stereo jack for LANC remote control supports iris, zoom and focus control. See page 9.
3. AVIATION HEADPHONES
0.25" TRS connector for monitoring PGM and control room audio with aviation style headsets. See page 9.
4. HEADPHONES MICROPHONE INPUT
0.206" TRS connector for talking to the control room with aviation style headsets. See page 9.
5. AUDIO INPUTS
2 x 1/4" balanced XLR connectors for audio input. See page 9.
6. OPTICAL INPUT/OUTPUT
Optical input and output allows cable runs of up to 28 miles. See page 10.
7. SDI OUT
OPTICAL OUT 6
OPTICAL IN
SDI output for connecting to a switcher or other device. See page 10.
7
SDI OUT
8
SDI IN 8. SDI IN
9
REF
SDI input allows the camera operator to view the Program (PGM) output. See page 10.
10
12V
9. REFERENCE INPUT
Allows multiple cameras to be genlocked to a blackburst or tri-level reference signal. See page 10.
10. POWER
12 – 24V power input for power supply and battery charging. See page 10.
FOCUS IRIS PTT PGM LUT SET DISPLAY MENU
