Camera Video Output

16

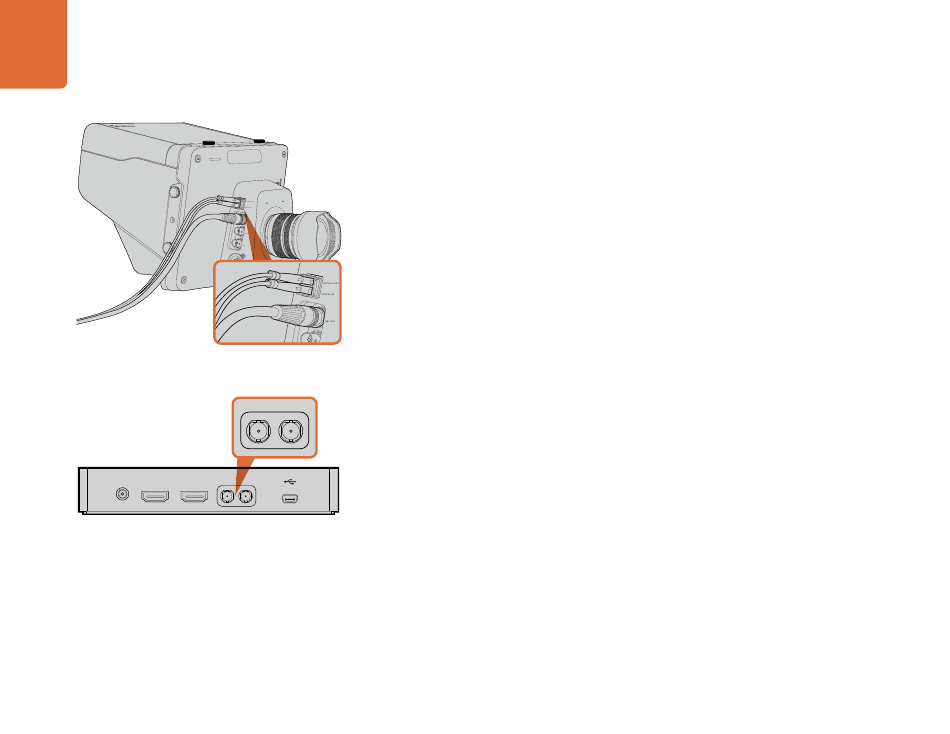

Connect either SDI or optical cables from your Studio Camera to
a production switcher or other device.
+12V POWER HDMI IN HDMI OUT
+12V POWER HDMI IN HDMI OUT
Connect the camera's SDI output to the Hyperdeck's SDI input
and connect the Hyperdeck's SDI output to the camera's SDI
input to view your recordings.
Camera Video Output

Connecting to Video Switchers

Blackmagic Studio Camera can be used to output uncompressed 10-bit 4:2:2 video to broadcast switchers
and other SDI devices.
The Blackmagic Studio Camera features optical input and output so ATEM Camera Converters are not
required at the camera end. The Studio Camera's optical input or SDI input allows the camera operator to
view the Program (PGM) output from the switcher.
The Studio Camera also features a reference input which allows multiple cameras to be genlocked to a
blackburst or tri-level reference signal. Genlocking cameras, VTRs and other devices to an external reference
signal helps to eliminate timing errors which may result in the picture jumping when switching between
different sources.

Connecting to Recorders

If you simply wish to record your Studio Camera's output, you can connect the SDI output to the SDI input
of an SSD recorder such as the Blackmagic Hyperdeck Shuttle. The SDI output from the Hyperdeck can
then be connected to the Studio Camera's SDI input, so you can view your recordings on the camera's LCD.
SDI IN SDI OUT
SDI IN SDI OUT
