Camera Settings
11

Audio Settings

To adjust audio input and audio monitoring settings on your Blackmagic Studio Camera, press the MENU
button and select the microphone icon to the left of the display.

Audio Input

Switches audio between using the camera's internal microphone and the XLR audio connectors.
Microphone Level
Microphone input adjusts the recording levels of the built in microphone. Move the audio slider left or right
to increase or decrease levels. Studio Camera has a built in stereo microphone. The built in microphone
records to audio channels 1 and 2 when no external audio source is connected.

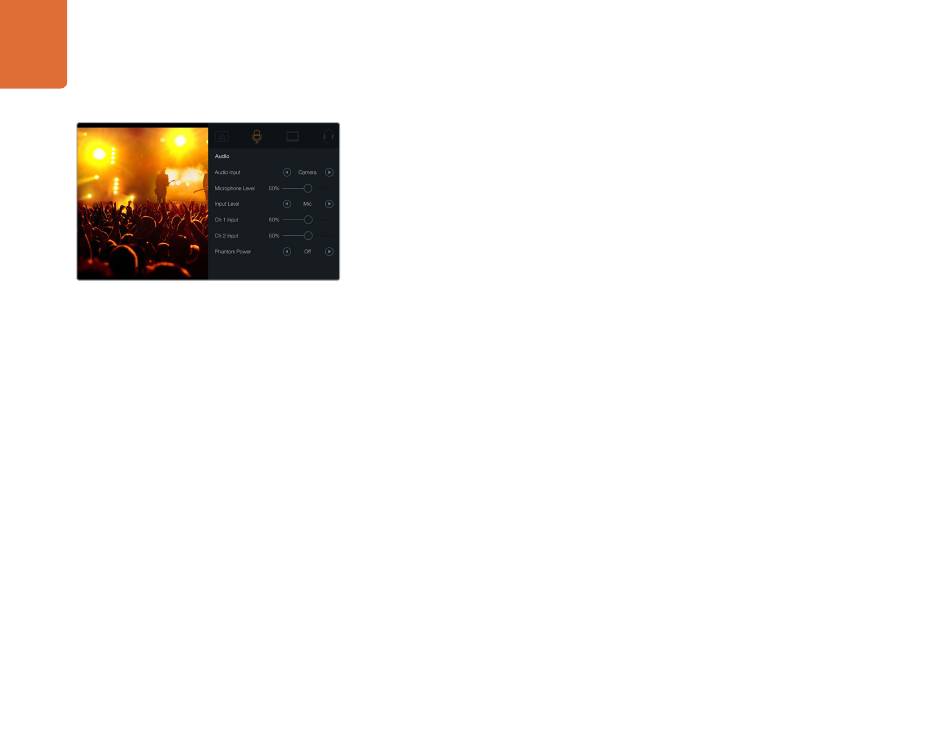

Audio Settings
Input Level
External audio connectors accept audio at microphone level or line level. It's important to select the
appropriate level to avoid your external audio sounding almost inaudible or too hot and distorted.
Set the external audio input levels by using the left and right arrows.
Ch 1 Input
Move the audio slider icon left or right to increase or decrease levels for channel 1. The external audio input
overrides the built in microphone and is output to audio channel 1.
Ch 2 Input
Move the audio slider icon left or right to increase or decrease levels for channel 2. The external audio input
overrides the built in microphone and is output to audio channel 2.
Phantom Power
Phantom power display setting turns power on and off on BOTH external inputs. Phantom power is a
method for transmitting power through microphone cables and it is best known as a convenient power
source for condenser microphones. Be sure to wait at least 10 seconds for Phantom power to discharge
after disconnecting. Older ribbon type microphones are not suitable for phantom power usage.
