Connections
9

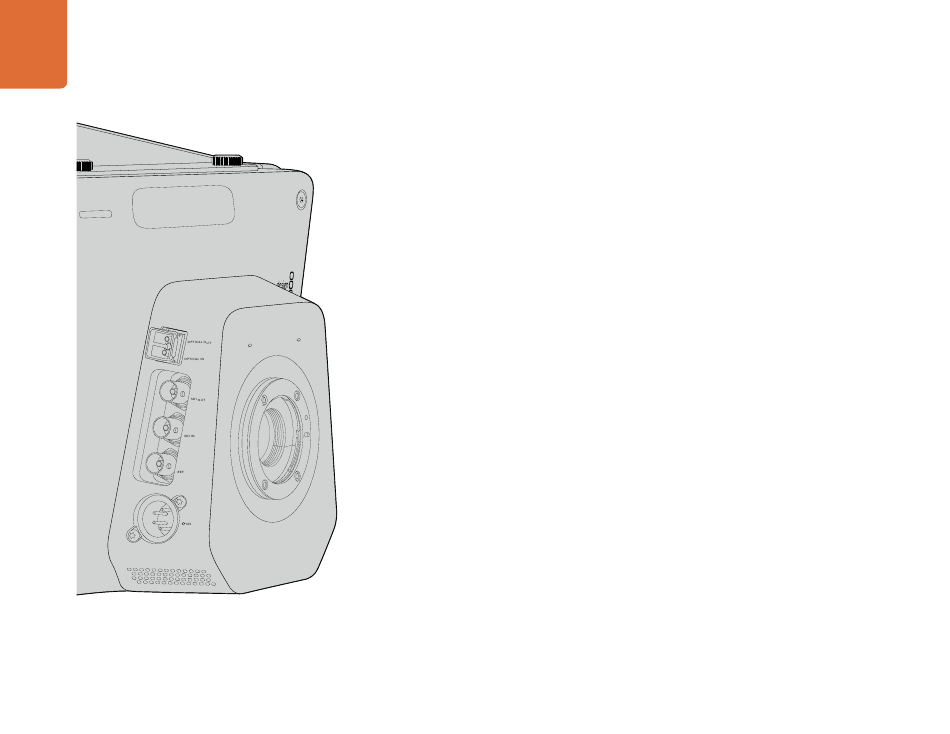

Blackmagic Studio Camera - Right Side

Optical Input/Output
The 3G optical fiber input and output uses industry standard LC connectors. Optical fiber cable is widely
available because it's the same cable used in computer networking. Optical fiber allows cable runs of up to
28 miles which is more than enough for even the most demanding outside broadcast event. If both optical
and SDI inputs are connected, the output from the device which was connected first will be used.
SDI Out
Use the SDI output for connecting to a switcher or other devices. Blackmagic Studio Camera HD supports
3G-SDI so it can be used to output uncompressed 10-bit 4:2:2 video to routers, monitors, SDI capture
devices, broadcast switchers and any other SDI devices.
SDI In
The SDI input allows the camera operator to view the Program (PGM) output. Simply press the PGM button
to toggle between live camera output and Program output from a switcher control room. If both optical and
SDI inputs are connected, the output from the device which was connected first will be used. If you're using
the Studio Camera to record to a device such as the Blackmagic Hyperdeck Shuttle, the output from the
Hyperdeck can be connected to the SDI input so you can playback what you have just recorded.
Reference Input
This allows multiple cameras to be genlocked to a blackburst or tri-level reference signal. Genlocking
cameras to an external reference signal helps to prevent timing errors which may result in the picture
jumping when switching between different cameras.
Power
Use the 12 – 24V power input for connecting your power supply and to charge the internal battery. When
the battery is fully charged it will power the camera for approximately 4 hours.
