dirna Bergstrom bycool green line COMPACT 1.4 Montageanweisungen Seite 29

COMPACT 1.4
M8 Studs
Cabin roof
EPDM Joint
Upholstery
All manuals and user guides at all-guides.com

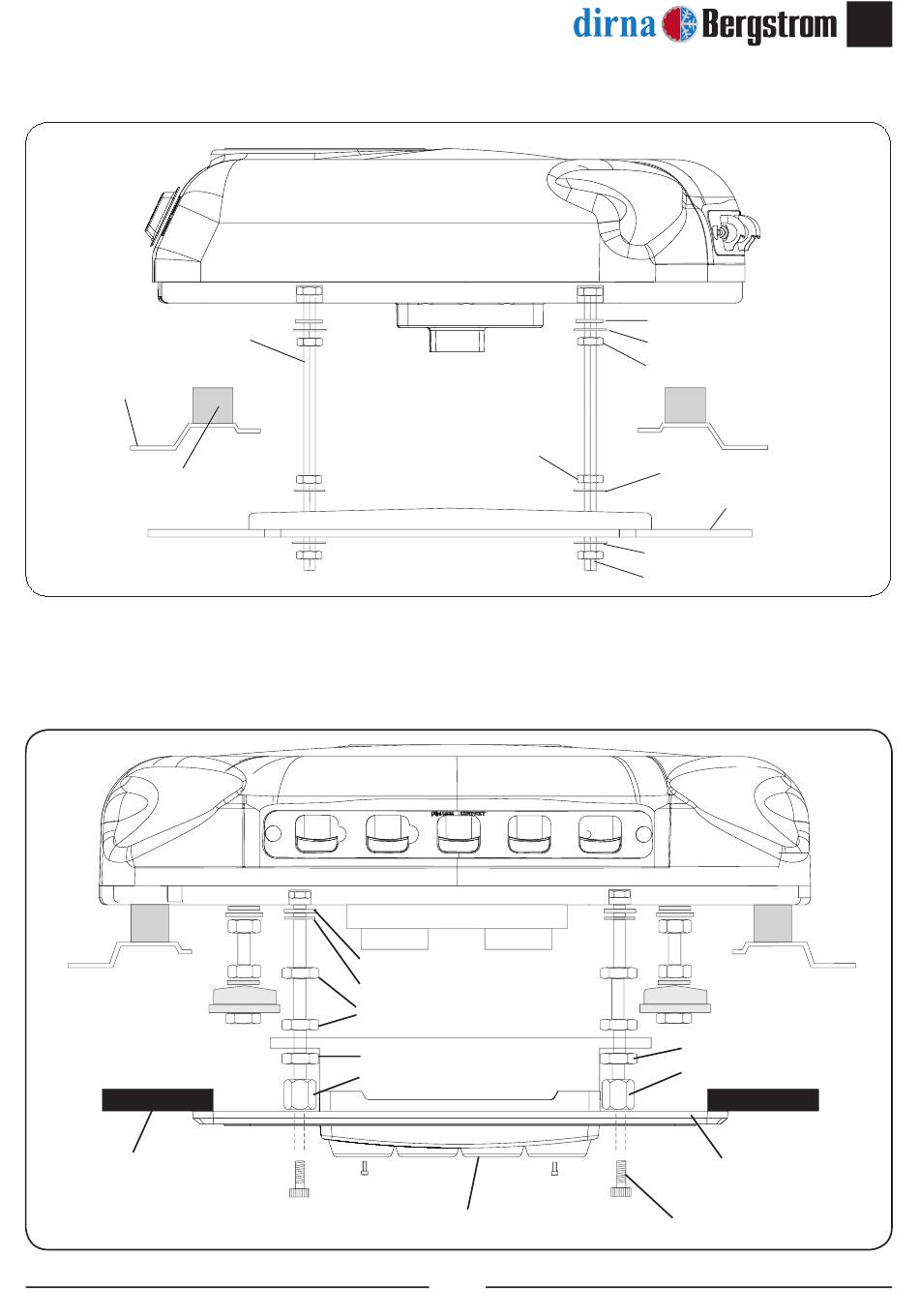

Exploded side view to supports fastening
Exploded rear view to consoles fastening
Rubber washer Ø6
Ø6 Wide wing flat washer
M6 Nut
M6 Nut
M6 Hexagons
Interior air distribution panel
M8 Nut
29
ø 7 Rubber washer
wide wing flat washer ø 8
M8 Nut
Wide wing flat washer ø 6
Fastening support
Wide wing flat washer
M8 self-blocking nut
M6 Nut
M6 Hexagons
Console
6/100x15 allen
EN
®
