COMPACT 1.4

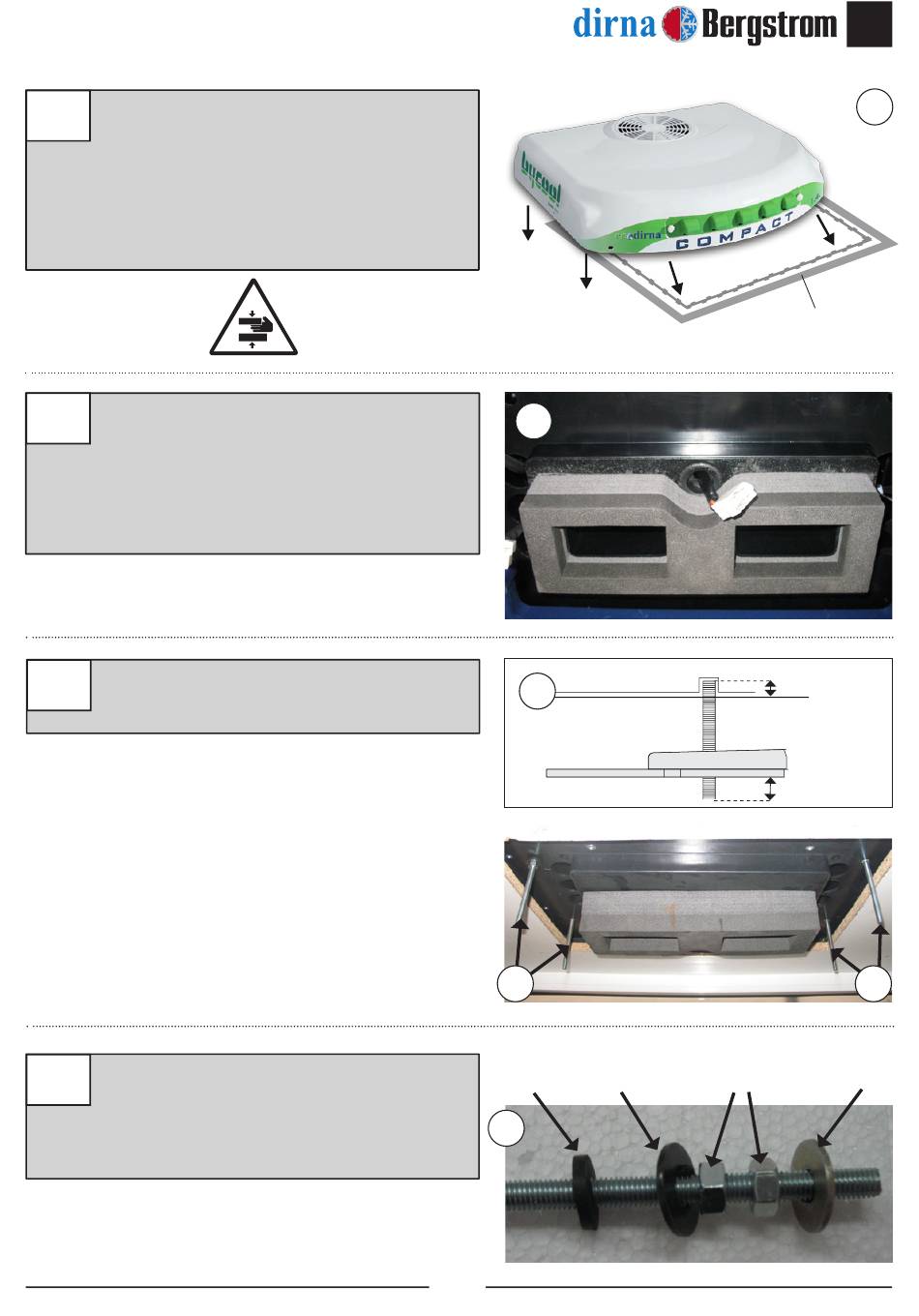

OUTSIDE CABIN:
3
Position Compact in sun hatch hole.
Caution! When positioning the unit above
the hatch gap, check that the wastewater
run-offs are not blocked by the EPDM
seal.
Position the foam rubber, ensuring the softest
4
part is placed on the base of the unit.
Caution: Depending on the cabin, it may be
necessary to use the (2) supplied ducts in
order for the distribution panel to be completely
adjusted.
INSIDE CABIN:
5
Screw about 5 mm (4) 8/125x100.
Following this order:
6
• Ø 7 plane rubber wash
• Plane ruber wash wide wing diameter 8
• Nut M8
• Plane washer diameter 8 wide wing
All manuals and user guides at all-guides.com
21
4
Unit base
5
Stud
5
Plane ruber wash
Ø 7 plane
rubber wash wide wing Ø 8
6
EN
®
3
Sun hatch
5 mm
Bracket
20 mm
5
Plane washer Ø8
Nut M8 wide wing
