dirna Bergstrom bycool green line COMPACT 1.4 Montageanweisungen Seite 26

COMPACT 1.4
EN

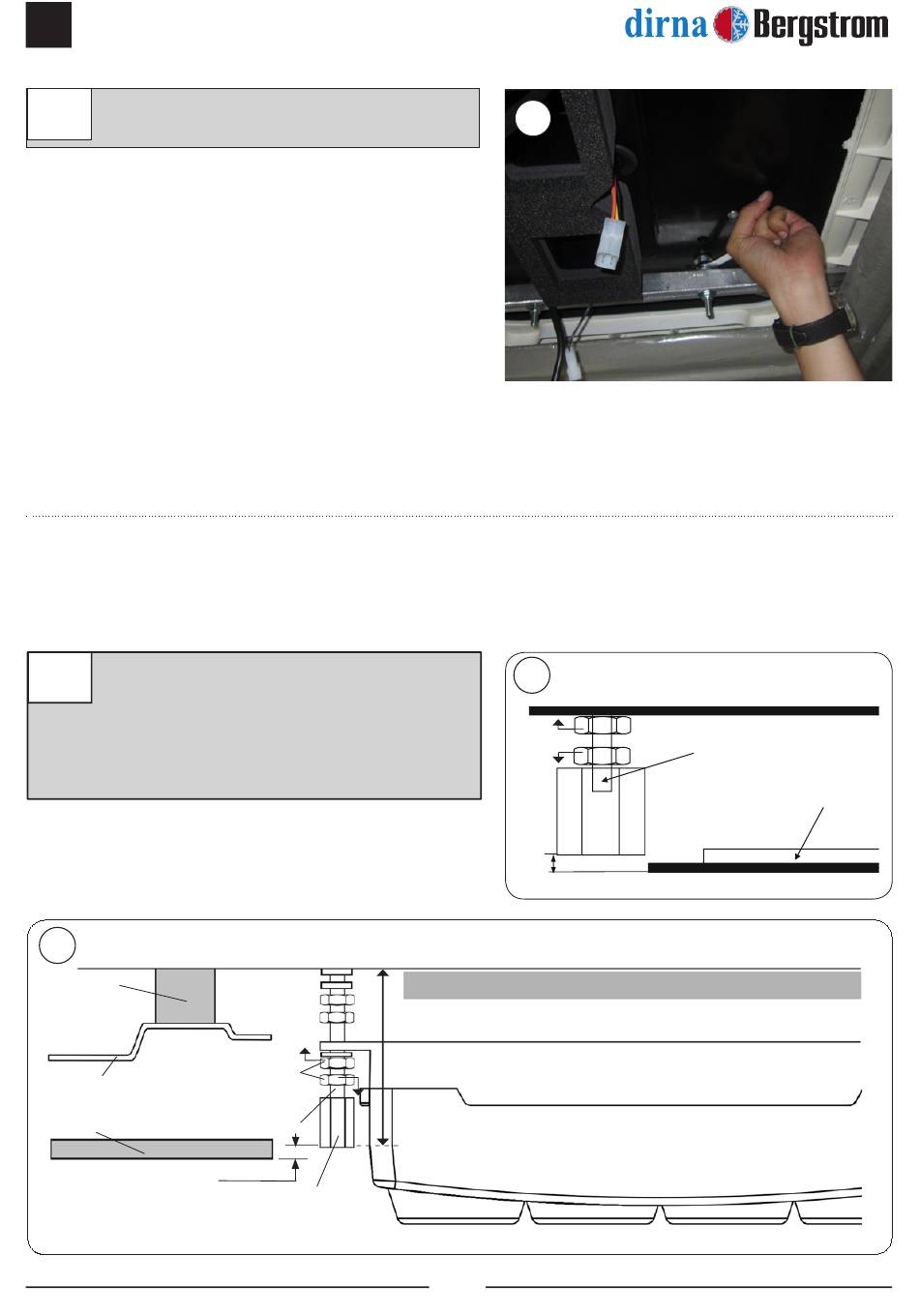

Tighten (4) M8 nuts to support and (4) to Unit
16
base.
Position nut M6 (A) after the fastening nut of
17
the interior air distribution panel on each stud.
Screw on M6 hexagons up to 1 mm above the
upholstery. Unscrew M6 nuts (A) of this point
until they come into contact with the hexagons,
and tighten against them.
17
EPDM
Gasket
Cabin roof
Upholstey
All manuals and user guides at all-guides.com
Base
D
(A)
M6 Nut
M6 stud
1 mm.
M6 Hexagons
16
17
1 mm
Approx.
Interior air distribution panel
26
Base Compact
M6 Hexagons
(A)
Upholstery
Foam
®
