Basic Orientation
Chest Pad
1
2
3

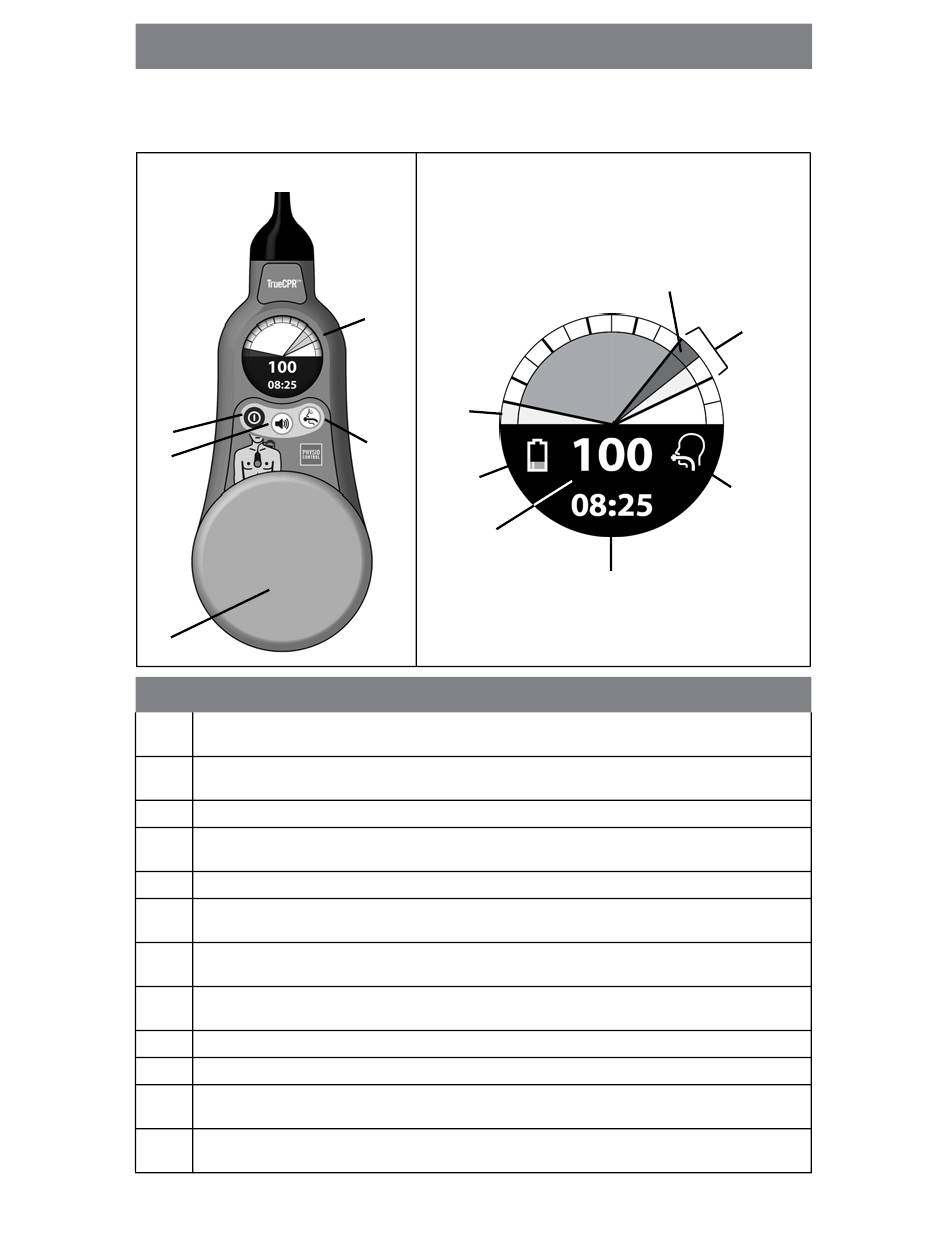

Item Description
Power Button: Press green button to turn device on. Press and hold for
1
2 seconds to turn device off.
Mute Button: Press to turn metronome on or off.
2
In Event Review mode, press to switch between screens.
3 Palm Pad: Hand placement area.
Airway Button: Press to switch metronome between Airway
4
(continuous compressions) mode and No Airway mode.
5 Screen: Displays compression feedback and other indicators.
Recoil Target Zone: Changes from light green to dark green when
6
compression is completely released.
Low Battery Indicator: Appears when remaining battery capacity is
7
less than 30 minutes of operation.
Compression Rate Meter: Displays rate as compressions per minute.
8
Changes to Inactivity Timer when compressions stop.
9 Elapsed Time Meter: Displays elapsed time since beginning of event.
10 Airway Indicator: Appears when device is in Airway mode.
Compression Target Zone: Changes from light green to dark green
11
when compression reaches target depth of 5–6 cm (2–2.5 in).
Compression Depth History: Dark green or gray segment in outer
12
circle shows depth of previous compression.
