Dynacode II IP
Water and Dust Protection Unit
After installing all of the necessary connections at the control unit and the covers of the not used connections with the
appropriate accessories (contained in delivery) the control unit is protected from water and dust at each time in accordance to
the degree of protection of enclosure IP65.
Owing to the conditions during the operation of direct print modules of this construction type the print mechanics cannot be
protected at the time of printing completely from ingress of water.
However it is possibly by means of the special Cleaning Cassette (contained in delivery) to protect the print mechanics
according to the degree of protection of enclosure IP65 during standstill times of machinery from ingress of water and dust.

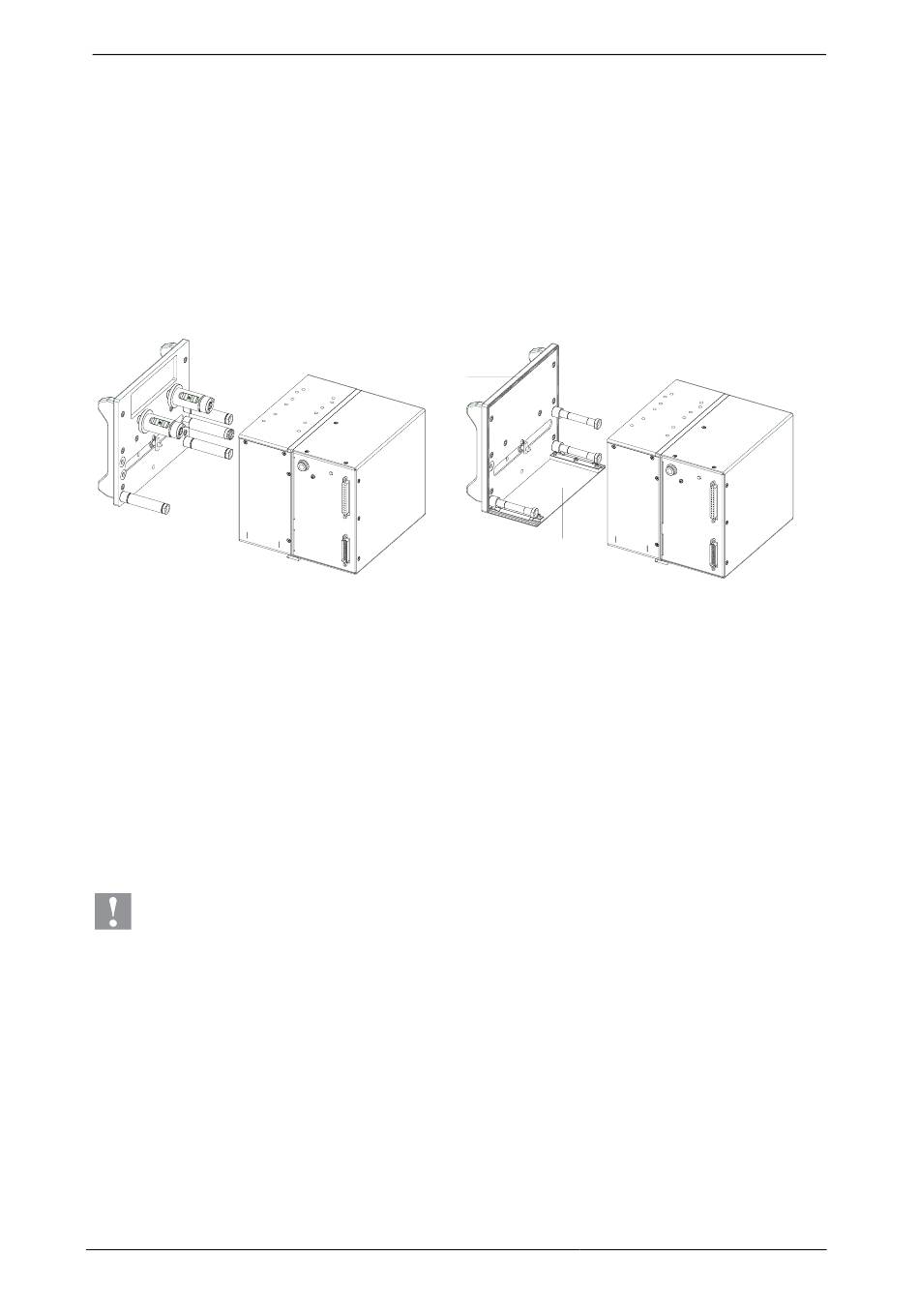

Transfer Ribbon Cassette / Cleaning Cassette
Transfer ribbon cassette
A
Use the Cleaning Cassette

Remove the transfer ribbon cassette necessary for printing.

Push and lock the cleaing cassette in the same way.

By an inserted sealing profile (A) and a cover (B) the print mechanics is protected in such a way for ingress of water and
B
dust.

The pneumatic tube and the connection cables to the control unit with the waterproof housings may not be removed.

Indications for maintenance and cleaning are described in the last chapter.

Before the resumption of printing the cleaning cassette must be changed again with the transfer ribbon cassette.
CAUTION!
The direct print module can be damaged by ingress of water due to incorrect operation/locking.

After removing the cleaning cassette examine the print mechanics for ingress of water.

Before the device is again taken into operation, dry the approriate place well.
