Operation

5.2

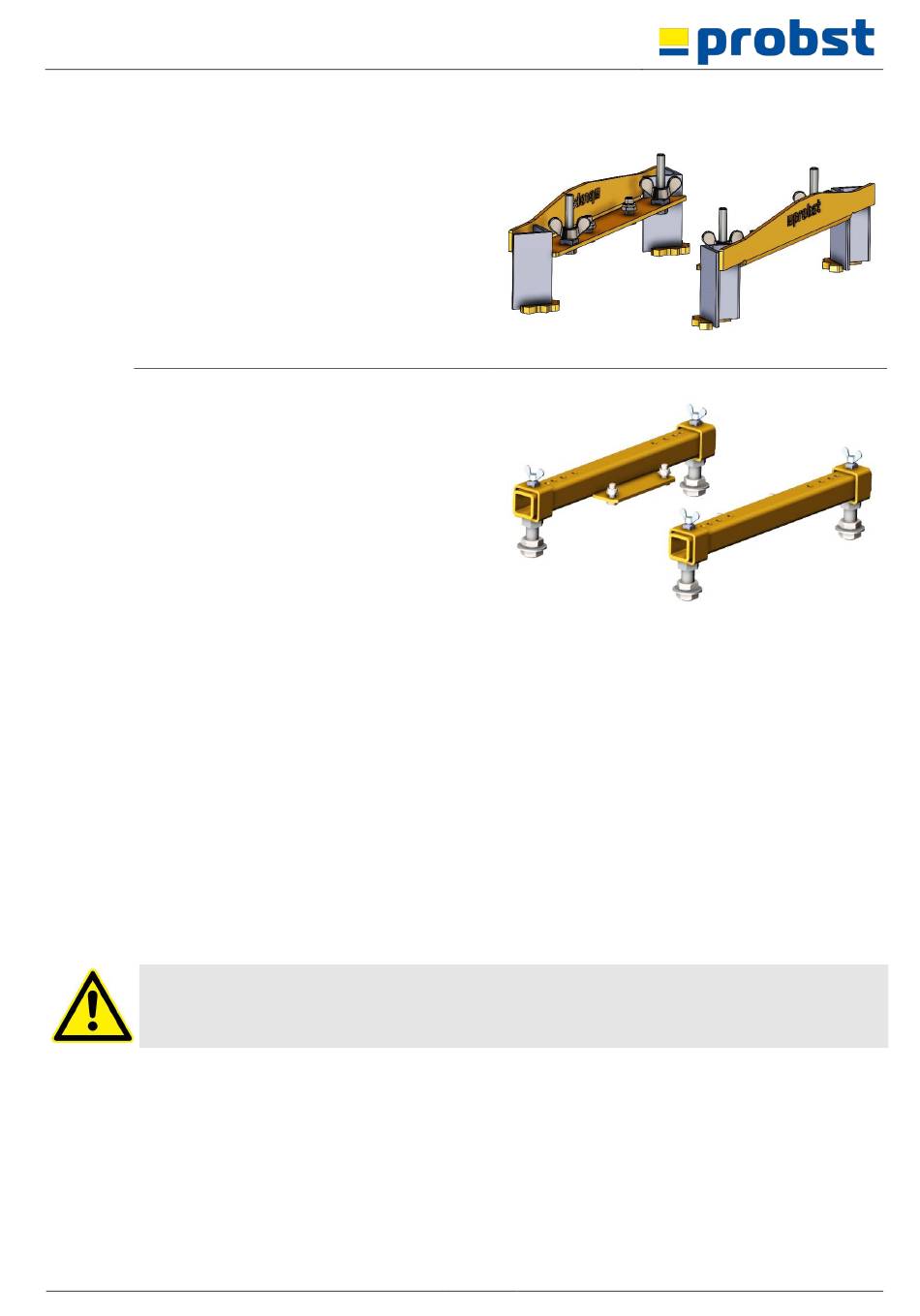

Accessories RGV adapter

RGV-AS-9/9 (43101153)
for inside height 20-60 mm
Adapter set for hole size: 9 x 9 cm
RGV-UA (43101730)
for inside height 25-50 mm
Universal adapter for hole size distances: 200/
256/ 300/ 331/ 400 mm
6 Operation
6.1

Operating for devices with automatic release

•
The device is connected to the lifting equipment/carrier (e.g. excavator).
•
Before lifting the device, the gripping range has to be adjusted.
•
The device is placed over the product, set down, the device closes round the product and it can be
lifted.
•
Set down on the ground again, the device opens automatically, the automatic release locks it into
position so that the device can be lifted without closing up.
•
Placed over the next product, the automatic release disengages itself and the product can be lifted.
The device therefore is a ONE-MAN-MACHINE.
Shut-down the device without lifting equipment/carrier only on even ground. The gripping arms
must be opened enough, to ensure a secure standing of the device. Otherwise there is a danger
of overturning!
53100436 15 / 20
Fig. 5
Fig. 6
