Fork Sleeves (Optional) - probst 53100436 Betriebsanleitung

Installation

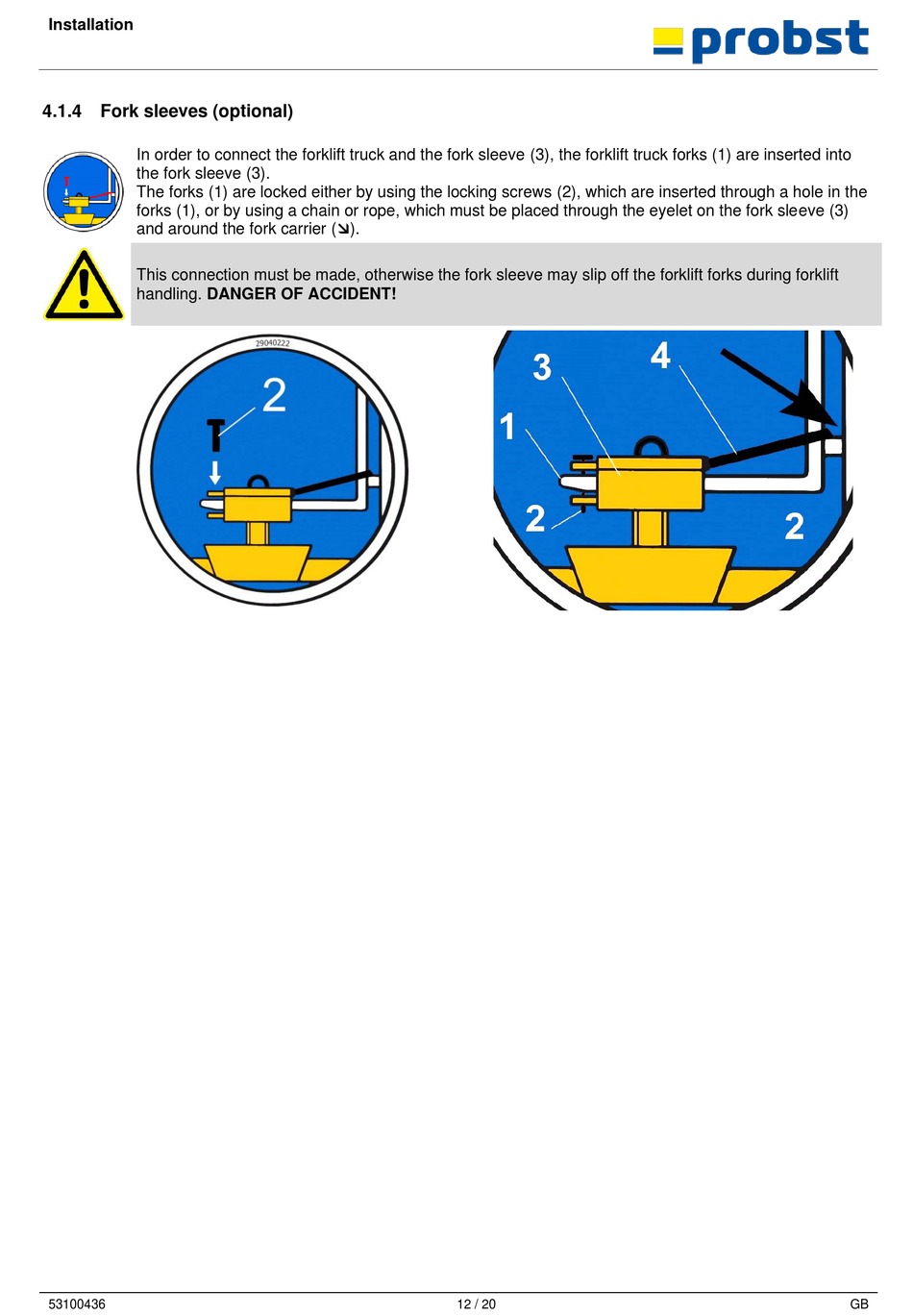

4.1.4 Fork sleeves (optional)

In order to connect the forklift truck and the fork sleeve (3), the forklift truck forks (1) are inserted into
the fork sleeve (3).
The forks (1) are locked either by using the locking screws (2), which are inserted through a hole in the
forks (1), or by using a chain or rope, which must be placed through the eyelet on the fork sleeve (3)
and around the fork carrier ().
This connection must be made, otherwise the fork sleeve may slip off the forklift forks during forklift
handling. DANGER OF ACCIDENT!
53100436 12 / 20 GB
