• Feed the cable through the empty pipes in the
foundation before the columns are set up. Then
move the columns to the installation location.
Place the cables through the holes in the base-
plate and guide them through the column to the
column head. Carefully place the columns up-
right to prevent kinking or clamping.
• Connect the cables according to the drawing
(Figure 24).
• When merging the cable connections at the
head plate, ensure that the cable does not con-
tact rotating parts.
• Pay particular attention to secure contact of the
plug connections.

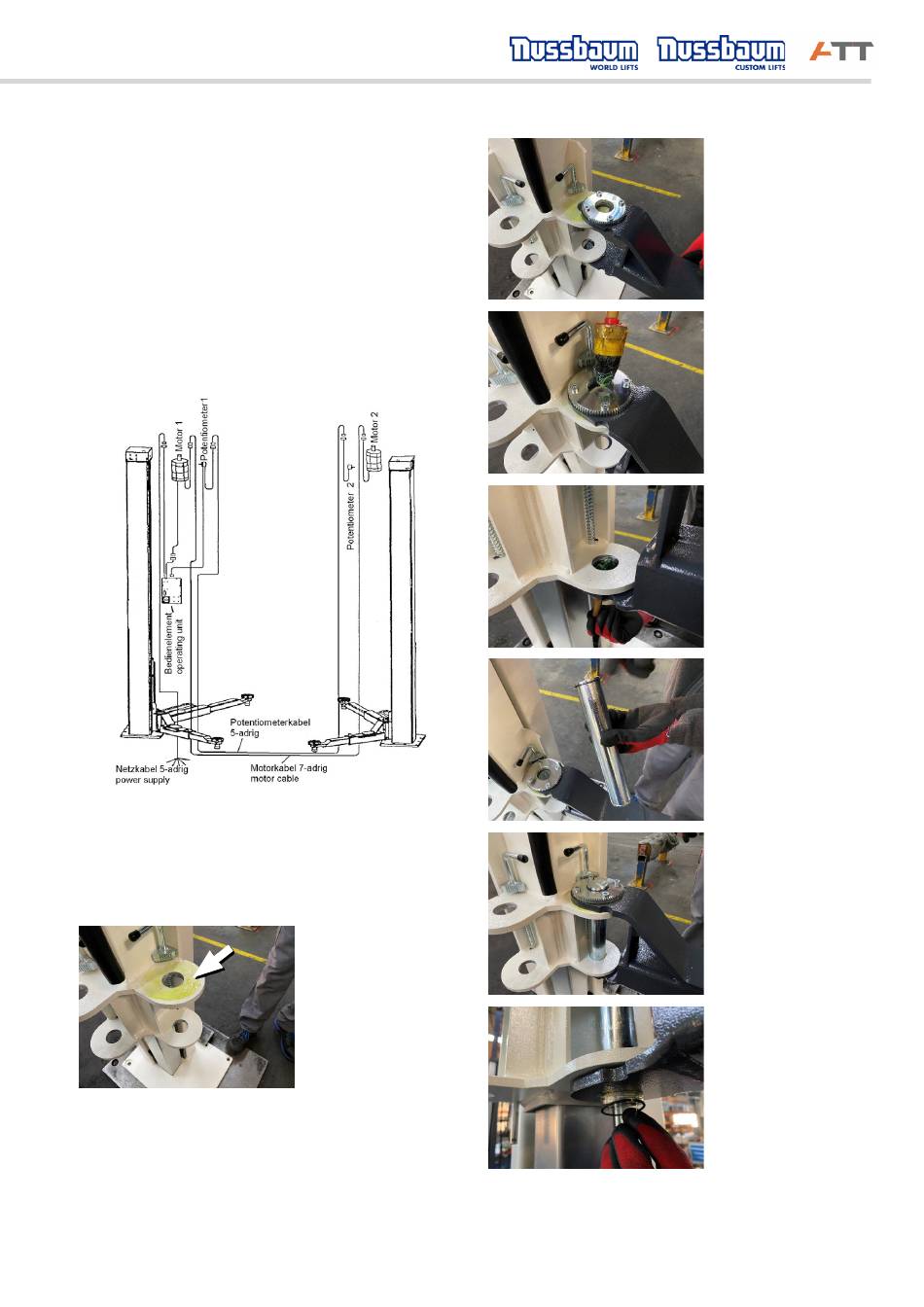

Figure 24: Cable path without using riser and cross-pipe
8.3

Support arm assembly

8.3.1 Mounting and greasing the support arms
The procedure for mounting the support arms is as
follows:
OPI_SMART LIFT 2.30 SL-2.35 SL-2.40 SL_V3.4_DE-EN-FR-ES-IT
Grease the sup-
port arm support
with an acid-free
multi-purpose
grease.
Position support
arm
Grease upper
aperture
Grease the lower
aperture
Pin with upper
circlip
Insert pin
Fit lower circlip to
pin
