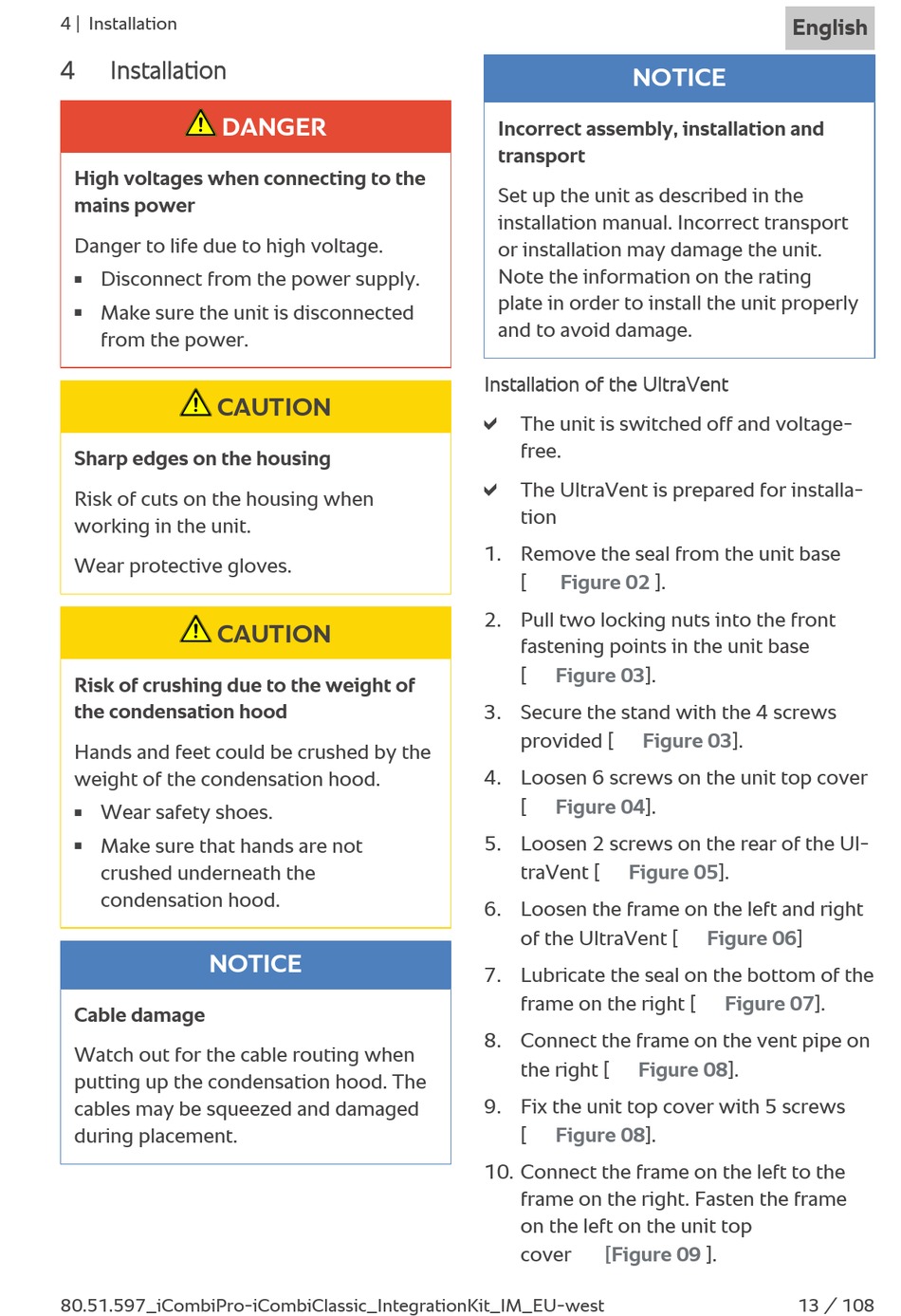

4 | Installation

4
Installation
DANGER
High voltages when connecting to the
mains power
Danger to life due to high voltage.
Disconnect from the power supply.
n
Make sure the unit is disconnected
n
from the power.
CAUTION
Sharp edges on the housing
Risk of cuts on the housing when
working in the unit.
Wear protective gloves.
CAUTION
Risk of crushing due to the weight of
the condensation hood
Hands and feet could be crushed by the
weight of the condensation hood.
Wear safety shoes.
n
Make sure that hands are not
n
crushed underneath the
condensation hood.
NOTICE
Cable damage
Watch out for the cable routing when
putting up the condensation hood. The
cables may be squeezed and damaged
during placement.
80.51.597_iCombiPro-iCombiClassic_IntegrationKit_IM_EU-west
NOTICE
Incorrect assembly, installation and
transport
Set up the unit as described in the
installation manual. Incorrect transport
or installation may damage the unit.
Note the information on the rating
plate in order to install the unit properly
and to avoid damage.
Installation of the UltraVent
a
The unit is switched off and voltage-
free.
a
The UltraVent is prepared for installa-
tion
1. Remove the seal from the unit base
[
Figure 02
2. Pull two locking nuts into the front
fastening points in the unit base
[
Figure
03].
3. Secure the stand with the 4 screws
provided [
Figure
4. Loosen 6 screws on the unit top cover
[
Figure
04].
5. Loosen 2 screws on the rear of the Ul-
traVent [
Figure
6. Loosen the frame on the left and right
of the UltraVent [
7. Lubricate the seal on the bottom of the
frame on the right [
8. Connect the frame on the vent pipe on
the right [
Figure
9. Fix the unit top cover with 5 screws
[
Figure
08].
10. Connect the frame on the left to the
frame on the right. Fasten the frame
on the left on the unit top
cover
[Figure 09
English
].
03].
05].
Figure
06]
Figure
07].
08].
].
13 / 108
