Electrical connection

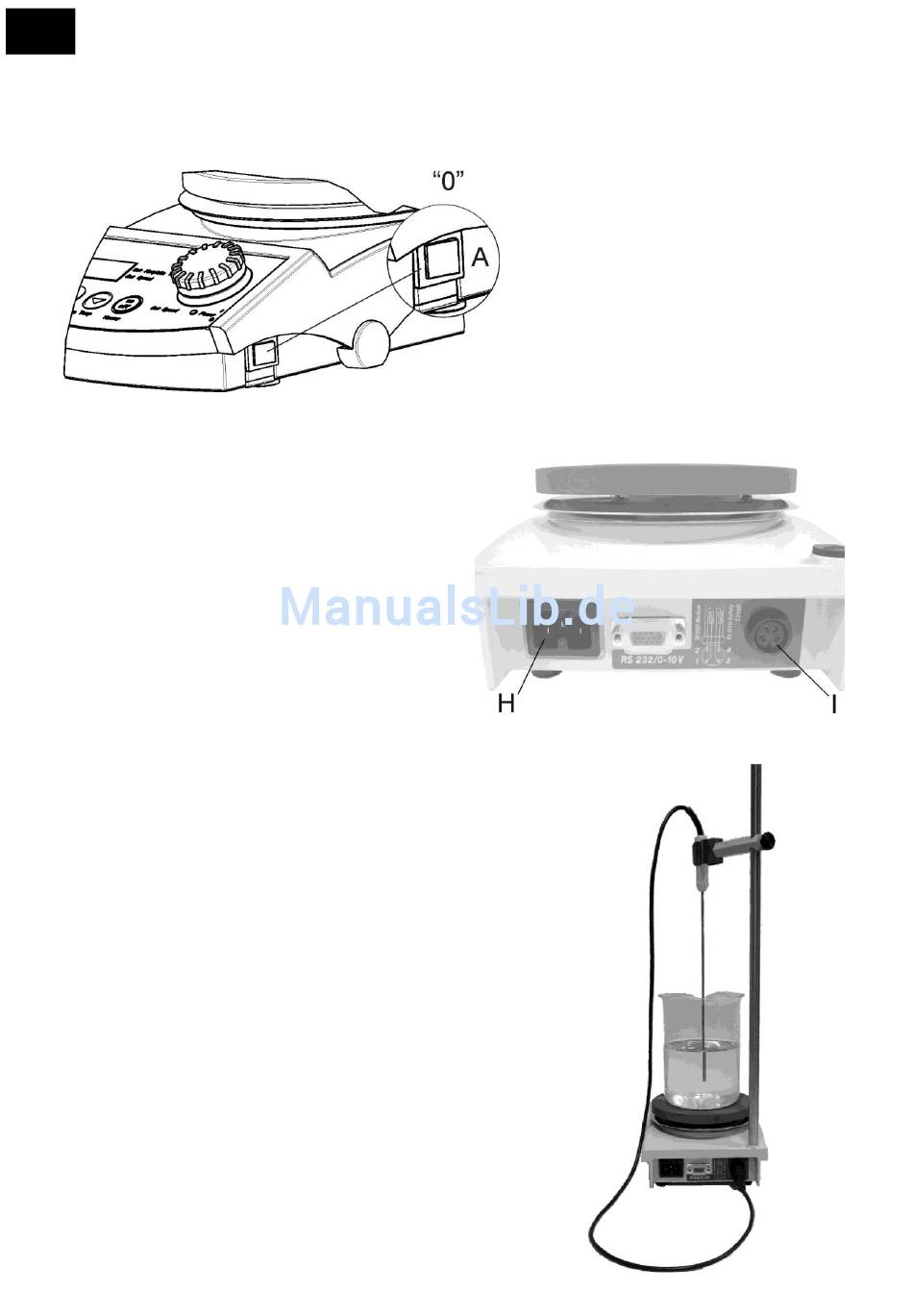

Plug the AC power cord into its socket (H) on
the rear panel. Connect the power cord to an
AC power outlet.
4 Connecting the external Pt1000
temperature sensor
 Before connecting the temperature
sensor, turn off the instrument's power
with the rocker switch (A).
 Connect the bayonet connector of the
temperature sensor to the flange socket
(I) on the rear of the instrument.
 Before inserting the plug, turn the ring on
the plug to the left. Once the plug is in
place, turn the ring to the right.
Before connecting the instrument to
an AC power outlet, ensure that the
rocker switch (A) is set to "OFF".
