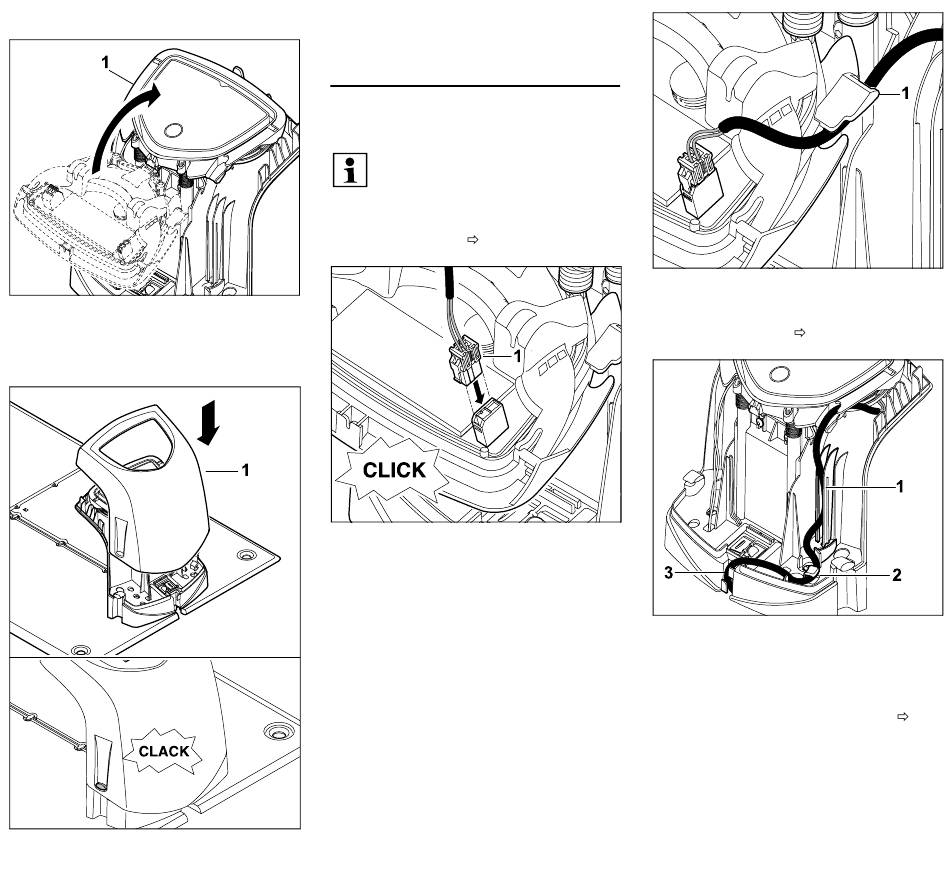

Closing the panel:
Fold the panel (1) rearwards – do not
pinch any cables.
Fitting the cover:
112
Fit the cover (1) onto the docking station
and allow it to engage – do not pinch any
cables.
9.3 Connecting the power cable to the
docking station
Note:
The plug and connection socket
must be clean.
● Remove the docking station cover and
open the panel. (
9.2)
Connect the connector of the power supply
unit (1) to the circuit board of the docking
station.
Guide the power cable through the cable
guide (1) on the panel.
● Close the panel. (
9.2)
Press the power cable into the cable
guide (1) as illustrated and guide through
the strain relief (2) and the cable duct (3)
to the power supply unit.
● Close the docking station cover. (
0478 131 9942 C - EN
