WARNING
Heavy valve
Risk of injury Suitable transport and lifting devices
are to be used. Wear suitable protective clothing (e.g.
safety shoes) during installation and use safety devi-
ces. External components like handwheels or pres-
sure test points must not be misused for the absorp-
tion of external forces, e.g. as connection point for
lever tools etc.
Hot and cold surfaces
Risk of injury Do not touch the valve without safety
gloves. It may get very hot during operation.
Sharp edges
Risk of injury Only touch with safety gloves. Threads,
bore holes and edges are sharp.
Small pieces
Risk of ingestion Store and install the valve out of
reach of children.
Allergies
Health hazard Do not touch the valve and avoid any
contact if allergies against the used materials are
.
known
3 Transport, storage and
packaging

3.1 Transport inspection

Upon receipt, check delivery for any damages caused
during transit.
Any damages must be reported immediately upon receipt.
3.2 Storage
The "Hydrocontrol MFC" must only be stored under the
following conditions:
Do not store in open air, keep dry and free from dust.
Do not expose to aggressive fluids or heat sources.
Protect from direct sunlight and mechanical agita-
tion.
Storage temperature: -20°C up to +55°C,
max. relative humidity of air: 95
3.3 Packaging
All packaging material must be disposed of environmen-
tally friendly.

4 Technical data

4.1 Performance data

Max. operating temperature:
Min. operating temperature:
Max. operating pressure:
Fluids: Non-aggressive fluids (e.g. water and suitable wa-
ter and glycol mixtures according to VDI 2035). Not suit-
able for steam or oily and aggressive fluids.
DANGER
Suitable measures (e.g. safety valves) have to be ta-
ken to ensure that the maximum operating pressures
and maximum and minimum operating temperatures
are not exceeded or undercut.
6
4.2 Materials
DN 65 – DN 150:
Valve body made of cast iron (EN-GJL-250 according to
DIN EN 1561), bonnet, disc and stem made of bronze /
dezincification resistant brass or cast iron, disc with
PTFE seal. Main-tenance-free stem seal due to double
EPDM O-ring.
DN 200 – DN 300:
Valve body made of cast iron (EN-GJL-250 according to
DIN EN 1561), bonnet made of nodular cast iron (EN
GJS-400-15 according to DIN EN 1563), disc made of
bronze, stem made of brass resistant to dezincification,
disc with PTFE seal. Maintenance-free stem seal due
to double EPDM O-ring.
4.3 Dimensions/Connection dimensions
Lengths according to DIN EN 558-1 basic series 1 (cor-
responds to ISO 5752 series 1)
Round flanges according to DIN EN 1092-2, PN 16 (cor-
responds to ISO 7005-2, PN 16)

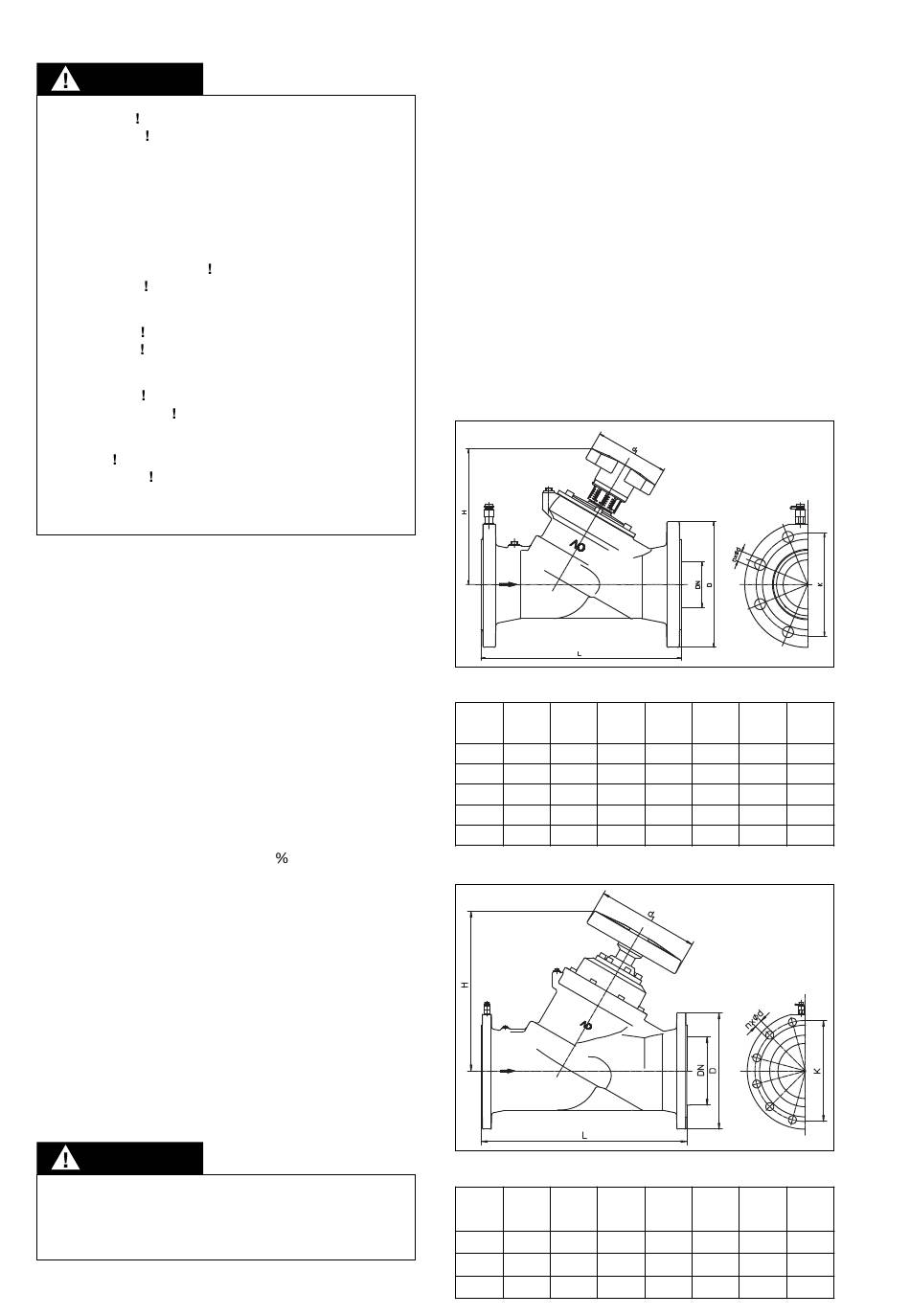

Illustr. 2 Dimensions DN 65 - DN 150
150 °C
-10 °C
16 bar (1600 kPa)
Illustr. 3 Dimensions DN 200 - DN 300
DN
L
H
d 1
65
188
290
110
80
310
203
110
100
350
240
160
125
400
283
160
150
480
285
160
DN
L
H
d
1
600
300
200
467
250
730
480
300
300
850
515
300
Approx.
D
K
nxØd
weight
[kg]
185
4x19
145
17
200
160
8x19
22
220
180
8x19
33
250
210
8x19
45
285
240
8x23
57
Approx.
D
K
nxØd
weight
[kg]
295 12x23 172
340
405
355 12x28 197
460
410 12x28 265
