Instruction Manual PCR Workstation Pro

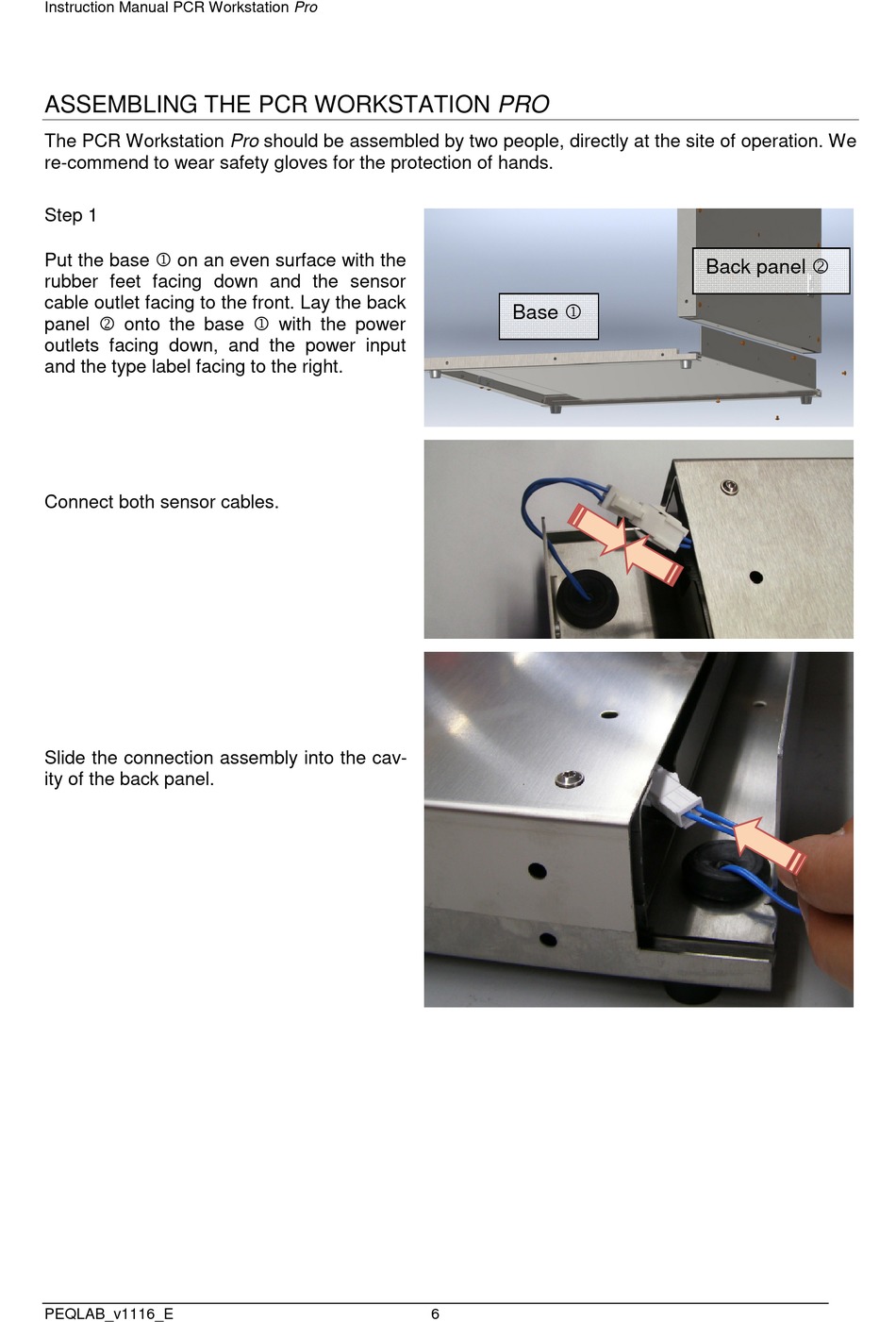

ASSEMBLING THE PCR WORKSTATION PRO

The PCR Workstation Pro should be assembled by two people, directly at the site of operation. We
re-commend to wear safety gloves for the protection of hands.
Step 1
Put the base 1 on an even surface with the

Back panel 2

rubber feet facing down and the sensor
cable outlet facing to the front. Lay the back
Base 1
panel 2 onto the base 1 with the power
outlets facing down, and the power input
and the type label facing to the right.
Connect both sensor cables.
Slide the connection assembly into the cav-
ity of the back panel.
PEQLAB_v1116_E 6
