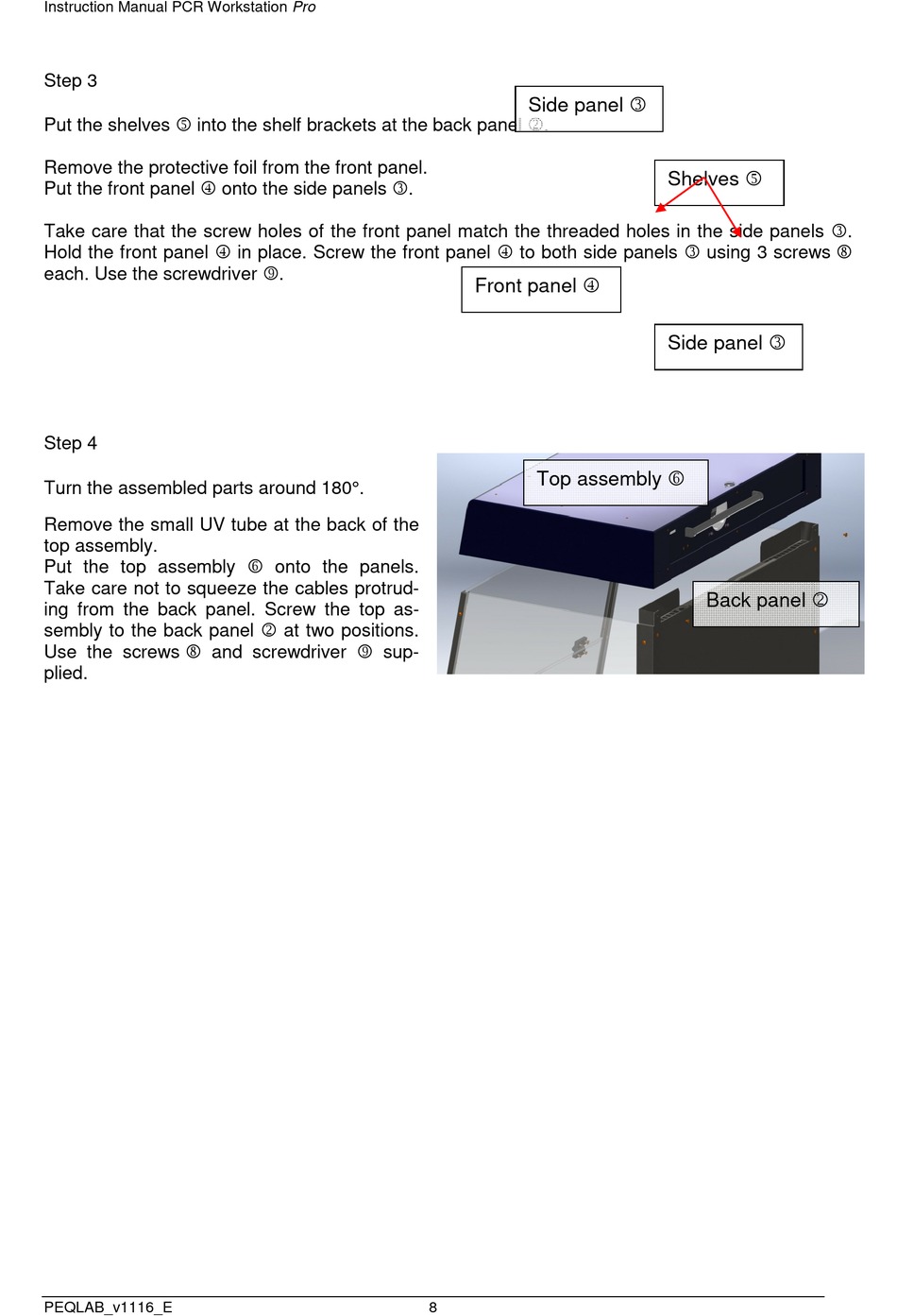

Instruction Manual PCR Workstation Pro
Step 3
Put the shelves 5 into the shelf brackets at the back panel 2.
Remove the protective foil from the front panel.
Put the front panel 4 onto the side panels 3.
Take care that the screw holes of the front panel match the threaded holes in the side panels 3.
Hold the front panel 4 in place. Screw the front panel 4 to both side panels 3 using 3 screws 8
each. Use the screwdriver 9.
Step 4
Turn the assembled parts around 180°.
Remove the small UV tube at the back of the
top assembly.
Put the top assembly 6 onto the panels.
Take care not to squeeze the cables protrud-
ing from the back panel. Screw the top as-
sembly to the back panel 2 at two positions.
Use the screws 8 and screwdriver 9 sup-
plied.
PEQLAB_v1116_E
Side panel 3
Front panel 4
Top assembly 6
8
Shelves 5
Side panel 3
Back panel 2
