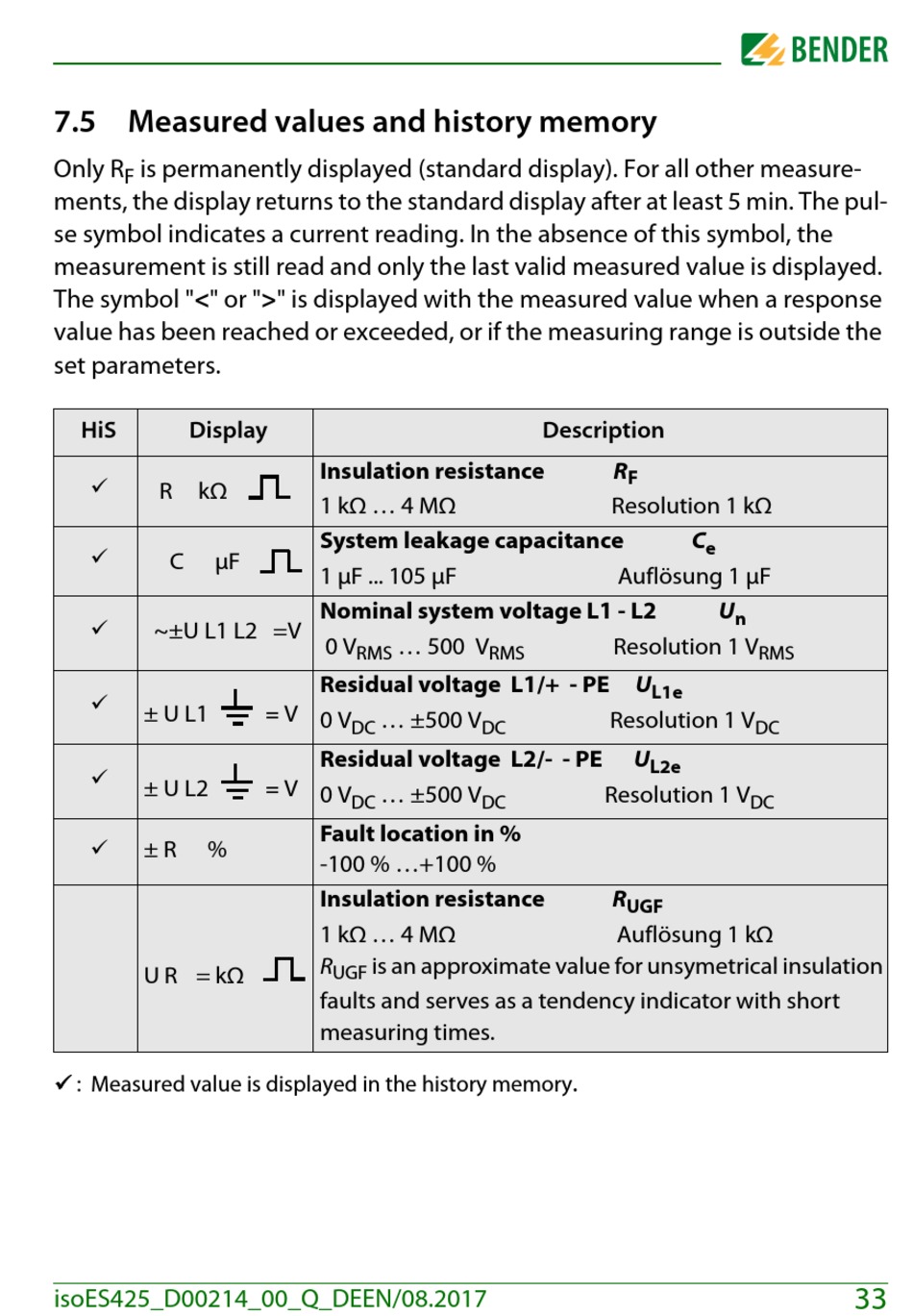

7.5 Measured values and history memory
Only R is permanently displayed (standard display). For all other measure-
F
ments, the display returns to the standard display after at least 5 min. The pul-
se symbol indicates a current reading. In the absence of this symbol, the
measurement is still read and only the last valid measured value is displayed.
The symbol "<" or ">" is displayed with the measured value when a response
value has been reached or exceeded, or if the measuring range is outside the
set parameters.
HiS Display

R kΩ

C μF

~±U L1 L2 =V

± U L1

± U L2

± R %
U R = kΩ
 : Measured value is displayed in the history memory
isoES425_D00214_00_Q_DEEN/08.2017
Insulation resistance
1 kΩ ... 4 MΩ
System leakage capacitance
1 μF ... 105 μF
Nominal system voltage L1 - L2
0 V ... 500 V
RMS
Residual voltage L1/+ - PE
V
=
0 V ... ±500 V
DC
Residual voltage L2/- - PE
V
=
0 V ... ±500 V
DC
Fault location in %
-100 % ...+100 %
Insulation resistance
1 kΩ ... 4 MΩ
R is an approximate value for unsymetrical insulation
UGF
faults and serves as a tendency indicator with short
measuring times.
Description
R
F
Resolution 1 kΩ
Auflösung 1 μF
Resolution 1 V
RMS
U
L1e
Resolution 1 V
DC
U
L2e
Resolution 1 V
DC
R
UGF
Auflösung 1 kΩ
.
C
e
U
n
RMS
DC
DC
