Ensure that the charging cable is not driven over, kinked or pinched. Always treat charging plugs, connec-
x
tors and sockets with special care.
Only have the product repaired by a qualified specialist electrical contractor authorised by ABL.
x

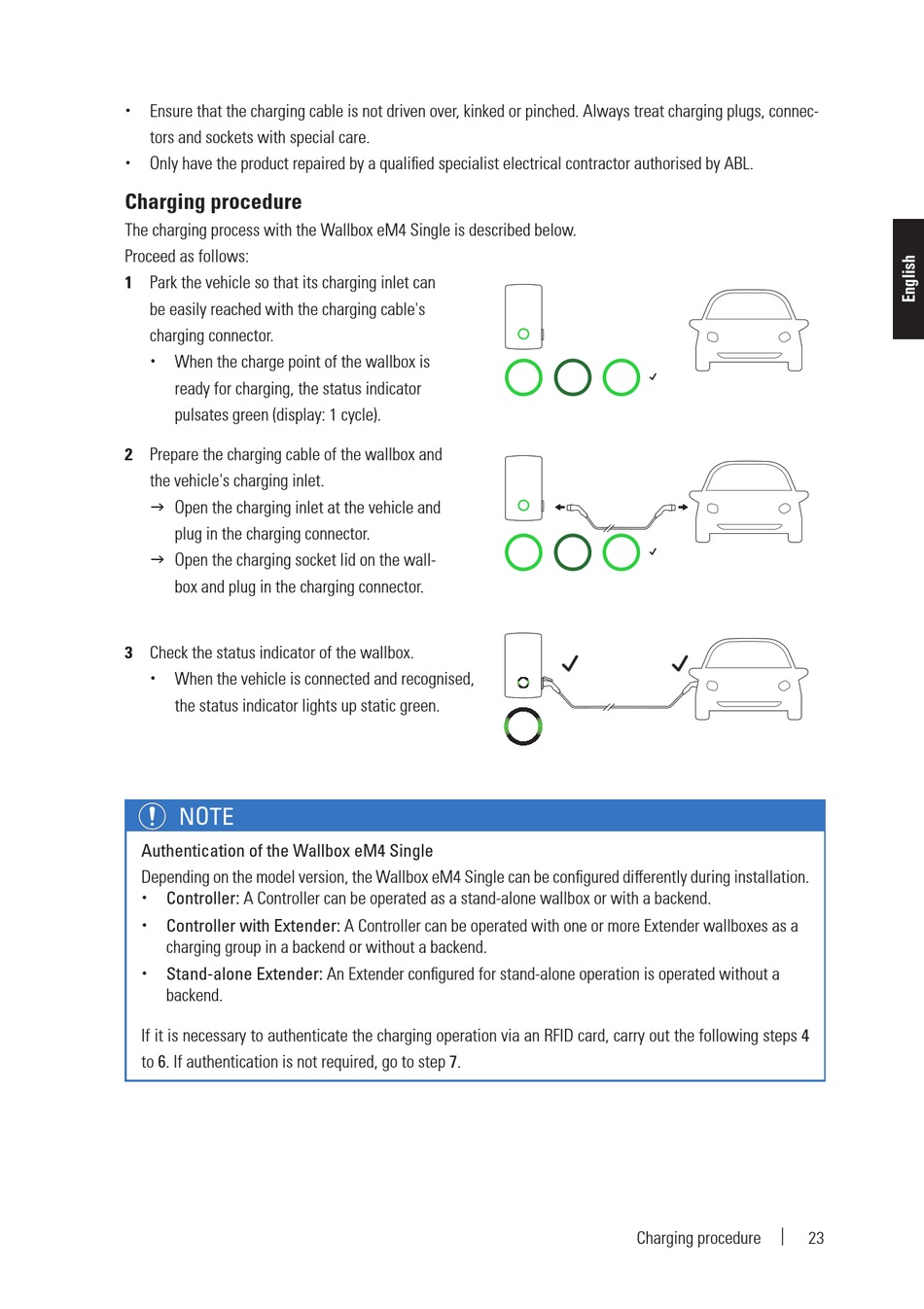

Charging procedure

The charging process with the Wallbox eM4 Single is described below.
Proceed as follows:
1 Park the vehicle so that its charging inlet can
be easily reached with the charging cable's
charging connector.
When the charge point of the wallbox is
x
ready for charging, the status indicator
pulsates green (display: 1 cycle).
2 Prepare the charging cable of the wallbox and
the vehicle's charging inlet.
J Open the charging inlet at the vehicle and
plug in the charging connector.
J Open the charging socket lid on the wall-
box and plug in the charging connector.
3 Check the status indicator of the wallbox.
When the vehicle is connected and recognised,
x
the status indicator lights up static green.
NOTE
Authentication of the Wallbox eM4 Single
Depending on the model version, the Wallbox eM4 Single can be configured differently during installation.
Controller: A Controller can be operated as a stand-alone wallbox or with a backend.
x
Controller with Extender: A Controller can be operated with one or more Extender wallboxes as a
x
charging group in a backend or without a backend.
Stand-alone Extender: An Extender configured for stand-alone operation is operated without a
x
backend.
If it is necessary to authenticate the charging operation via an RFID card, carry out the following steps 4
to 6. If authentication is not required, go to step 7.
|
Charging procedure 23
