Reading the energy meter

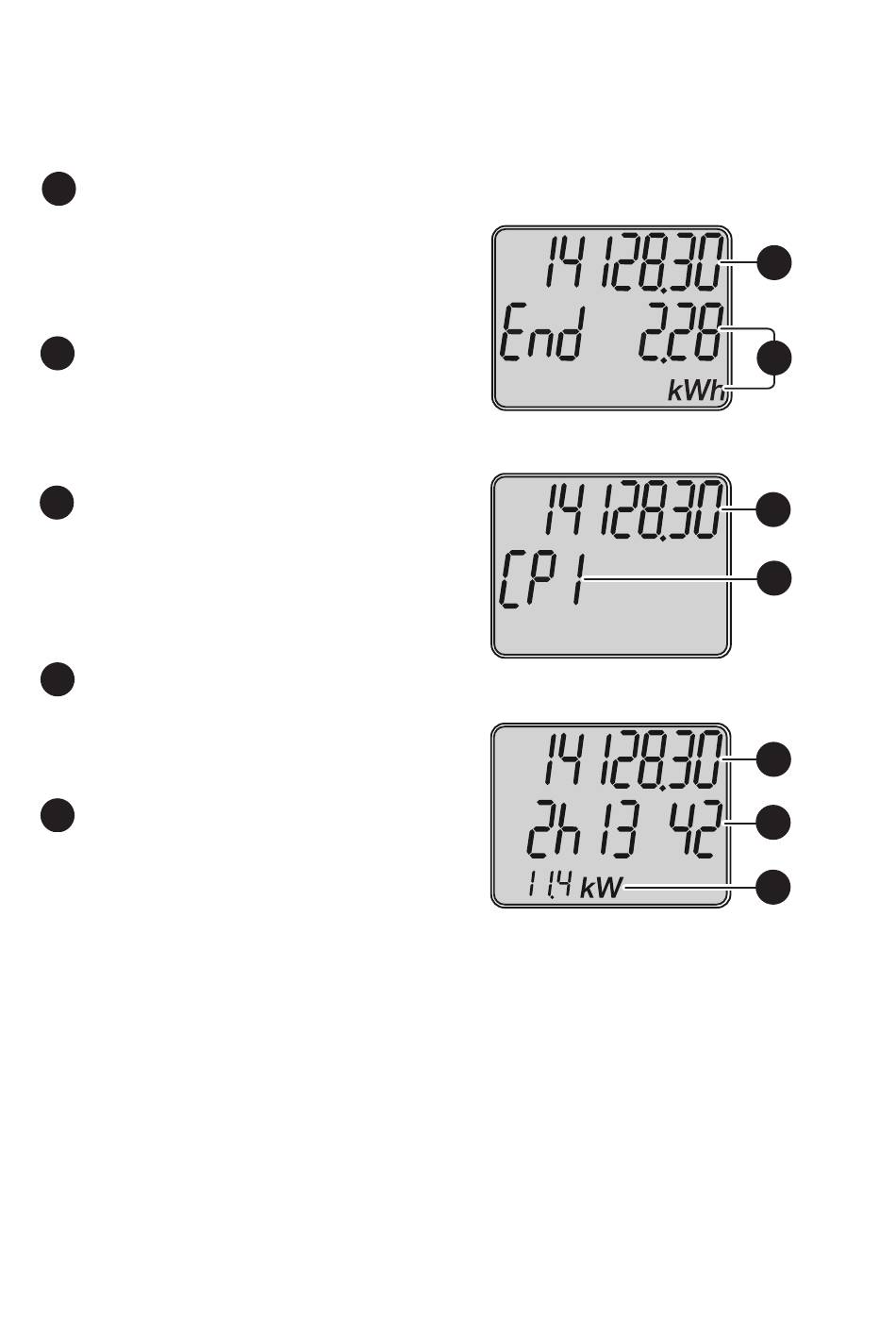

The energy meter on the side of the Wallbox eM4 Single shows various information about the charging oper-
ation via three display lines. In contrast to the top line, the values displayed in lines 2 and 3 are switched
cyclically:
A
Total electric energy consumed
The top line always shows the total electric
B
power consumed in kWh, and therefore the
C
sum of all the electrical charge obtained via the
A
D
charge point. This line is not switched.
B E
Current electric energy consumed
In this state, the second line shows the active
C F
energy in kWh that has been drawn so far during
A
D
the active charging operation.
B
E
C
Charge point allocation
F
After switching, the second line in this state
D
A
shows the identification that was assigned to
E
the charge point during installation.
B
F
C
A
D
Duration of the charging operation
B
After switching, the second line in this state
E
C
shows the duration of the active charging opera-
F
D tion in hours, minutes and seconds.
E
Current electric power consumption
In this state, the third line shows the active
F
power that is currently being drawn by the vehi-
cle: During charging, the value varies dynami-
cally; without a vehicle connected, the value is
0.0 kW.
|
30 Reading the energy meter
