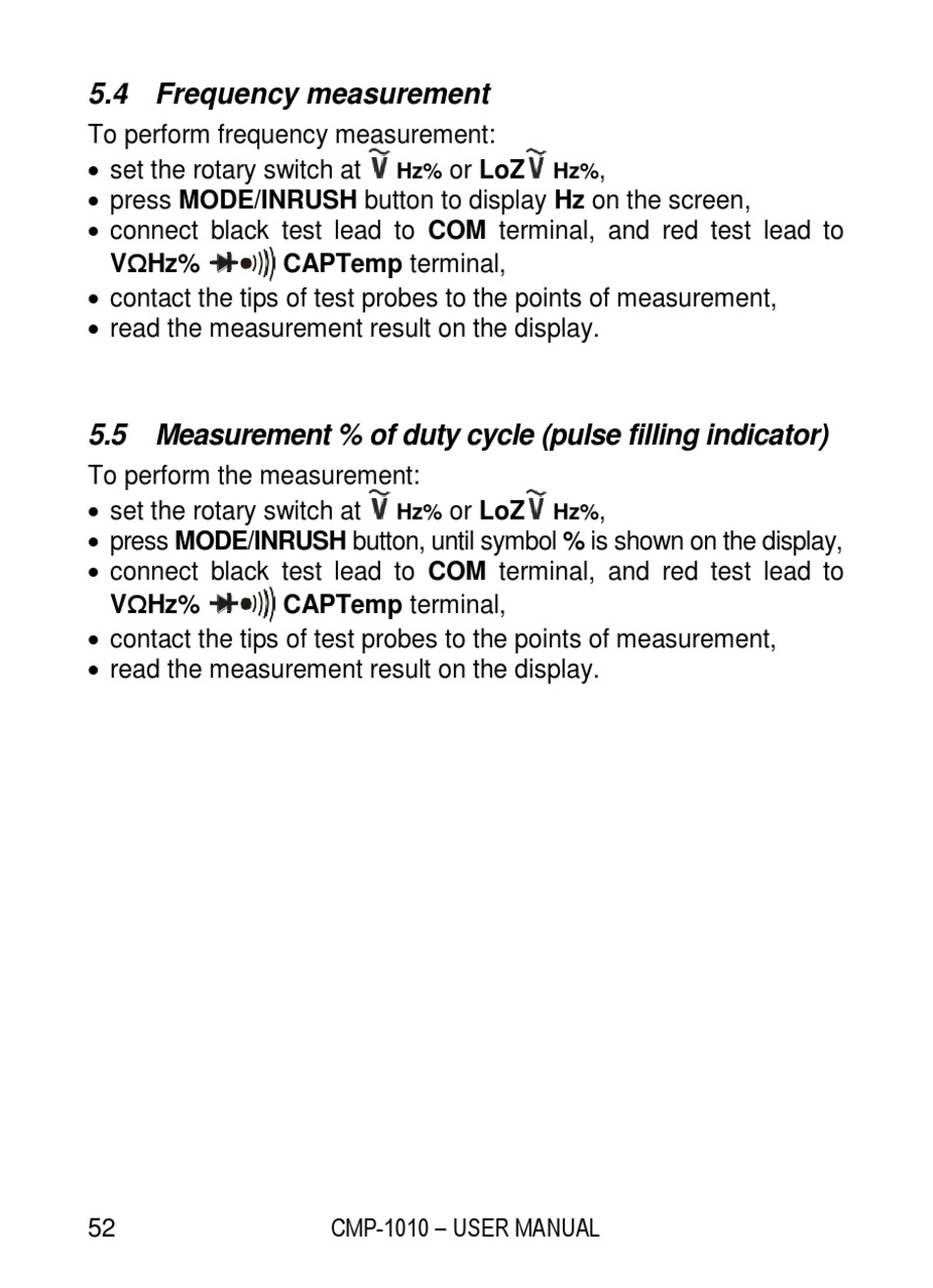

5.4 Frequency measurement

To perform frequency measurement:
 set the rotary switch at
 press MODE/INRUSH button to display Hz on the screen,
 connect black test lead to COM terminal, and red test lead to
VΩHz%
 contact the tips of test probes to the points of measurement,
 read the measurement result on the display.

5.5 Measurement % of duty cycle (pulse filling indicator)

To perform the measurement:
 set the rotary switch at
 press MODE/INRUSH button, until symbol % is shown on the display,
 connect black test lead to COM terminal, and red test lead to
VΩHz%
 contact the tips of test probes to the points of measurement,
 read the measurement result on the display.
