Promag 53
Endress+Hauser

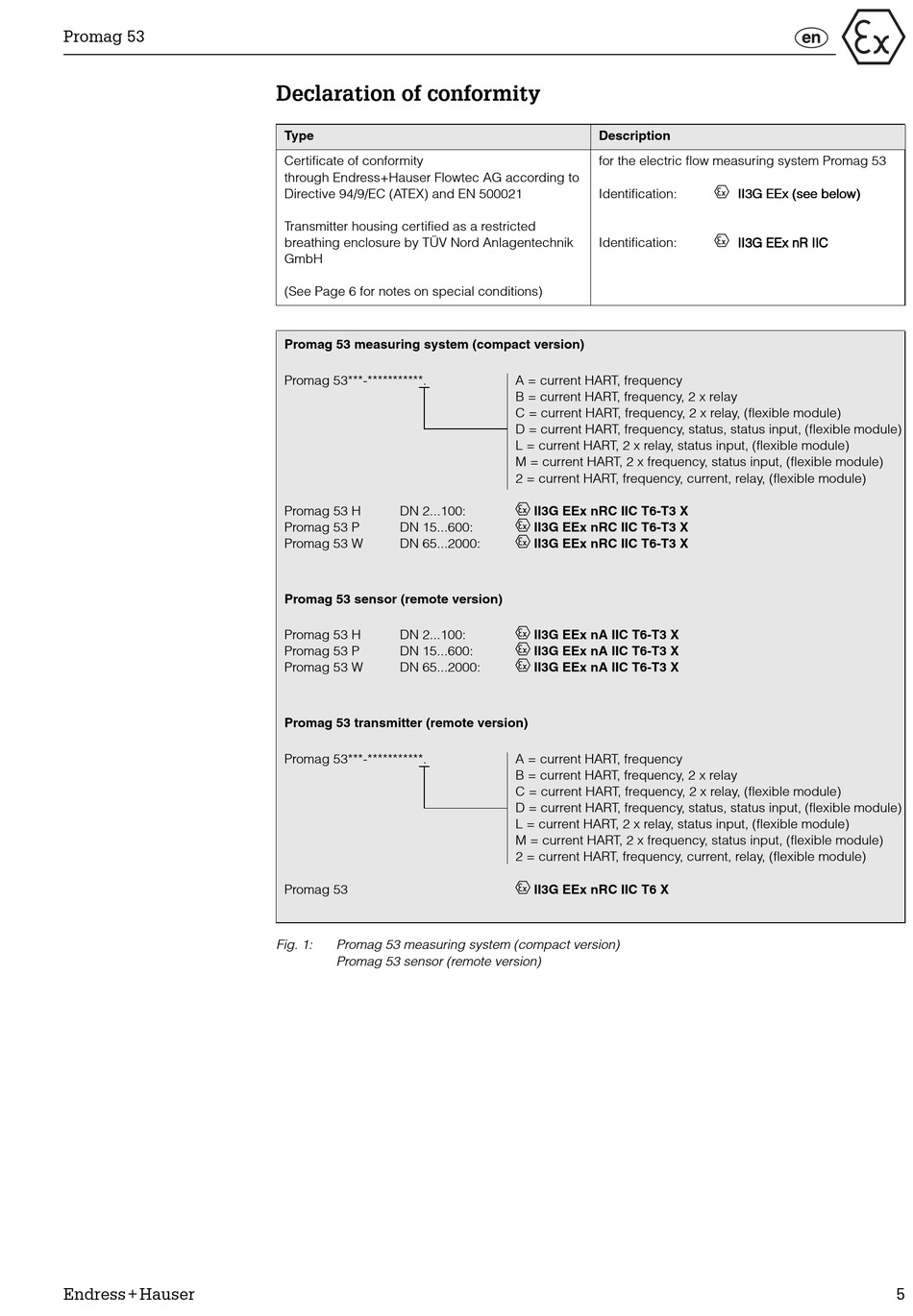

Declaration of conformity

Type
Certificate of conformity
through Endress+Hauser Flowtec AG according to
Directive 94/9/EC (ATEX) and EN 500021
Transmitter housing certified as a restricted
breathing enclosure by TÜV Nord Anlagentechnik
GmbH
(See Page 6 for notes on special conditions)
Promag 53 measuring system (compact version)
Promag 53***-***********.
Promag 53 H DN 2...100:
Promag 53 P DN 15...600:
Promag 53 W DN 65...2000:
Promag 53 sensor (remote version)
Promag 53 H DN 2...100:
Promag 53 P DN 15...600:
Promag 53 W DN 65...2000:
Promag 53 transmitter (remote version)
Promag 53***-***********.
Promag 53
Fig. 1: Promag 53 measuring system (compact version)
Promag 53 sensor (remote version)
Description
for the electric flow measuring system Promag 53
Identification:
Identification:
A = current HART, frequency
B = current HART, frequency, 2 x relay
C = current HART, frequency, 2 x relay, (flexible module)
D = current HART, frequency, status, status input, (flexible module)
L = current HART, 2 x relay, status input, (flexible module)
M = current HART, 2 x frequency, status input, (flexible module)
2 = current HART, frequency, current, relay, (flexible module)
f II3G EEx nRC IIC T6-T3 X
f II3G EEx nRC IIC T6-T3 X
f II3G EEx nRC IIC T6-T3 X
f II3G EEx nA IIC T6-T3 X
f II3G EEx nA IIC T6-T3 X
f II3G EEx nA IIC T6-T3 X
A = current HART, frequency
B = current HART, frequency, 2 x relay
C = current HART, frequency, 2 x relay, (flexible module)
D = current HART, frequency, status, status input, (flexible module)
L = current HART, 2 x relay, status input, (flexible module)
M = current HART, 2 x frequency, status input, (flexible module)
2 = current HART, frequency, current, relay, (flexible module)
f II3G EEx nRC IIC T6 X
f II3G EEx (see below)
II3G EEx (see below)
II3G EEx (see below) II3G EEx (see below)
f II3G EEx nR IIC
II3G EEx nR IIC
II3G EEx nR IIC II3G EEx nR IIC
5
