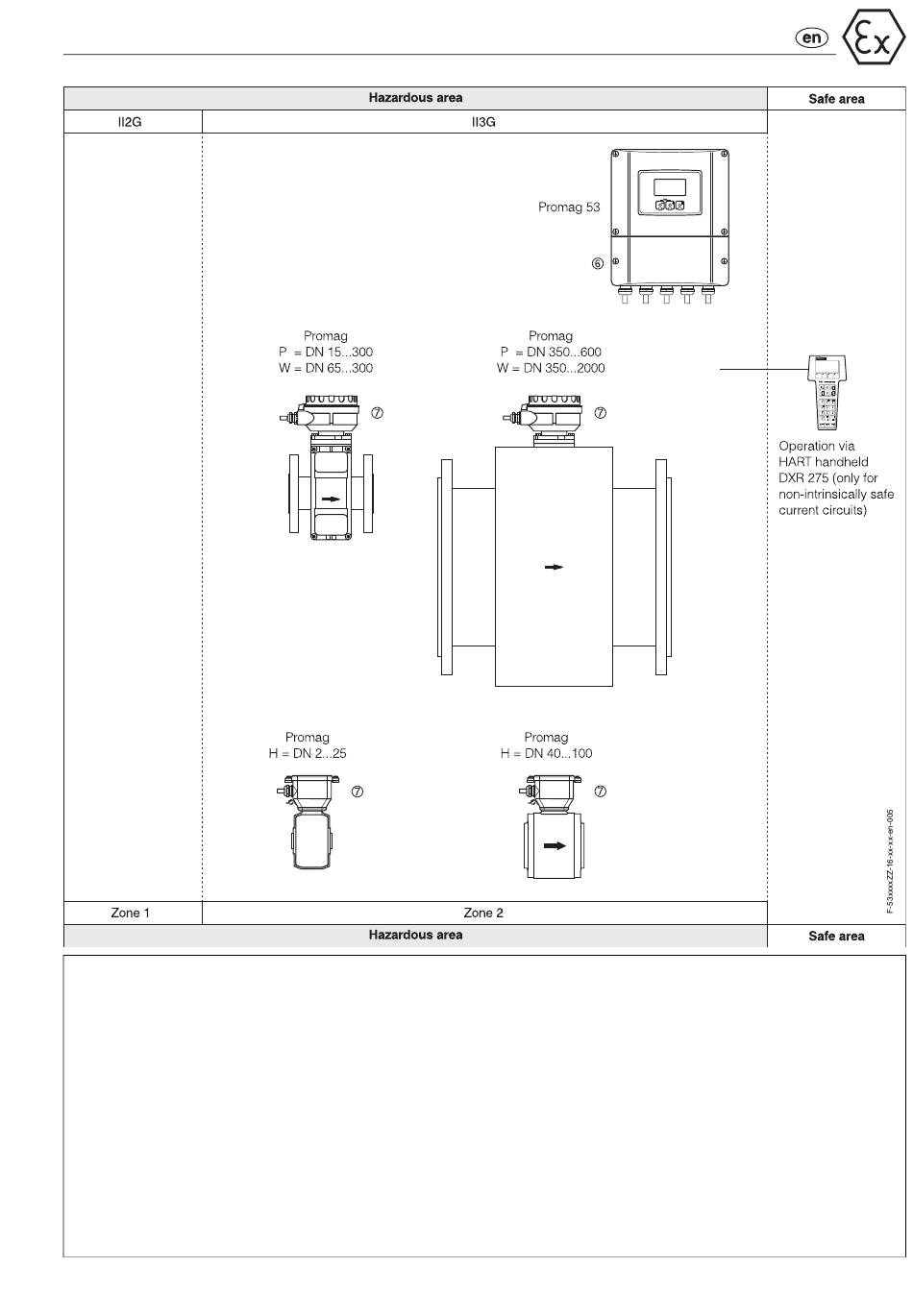

Promag 53
• Promag 53 transmitter in:
II3G EEx nRC IIC T6 X
Transmitter housing in IP 67
• Promag H/P sensor in:
II3G EEx nA IIC T6-T3 X
Sensor housing in IP 67*
• Promag W sensor in:
II3G EEx nA IIC T6 X
Sensor housing in IP 67*
• See page 4 for details of ambient and medium temperatures and
temperature classes
• *The W/P sensors are available with IP 68 housings (3m immersion depth)
as an option.
Endress+Hauser
➅
Transmitter terminal compartment
sensor-cable connection
➆
Sensor terminal compartment
sensor-cable connection
3
