Safety instructions
4
1.4

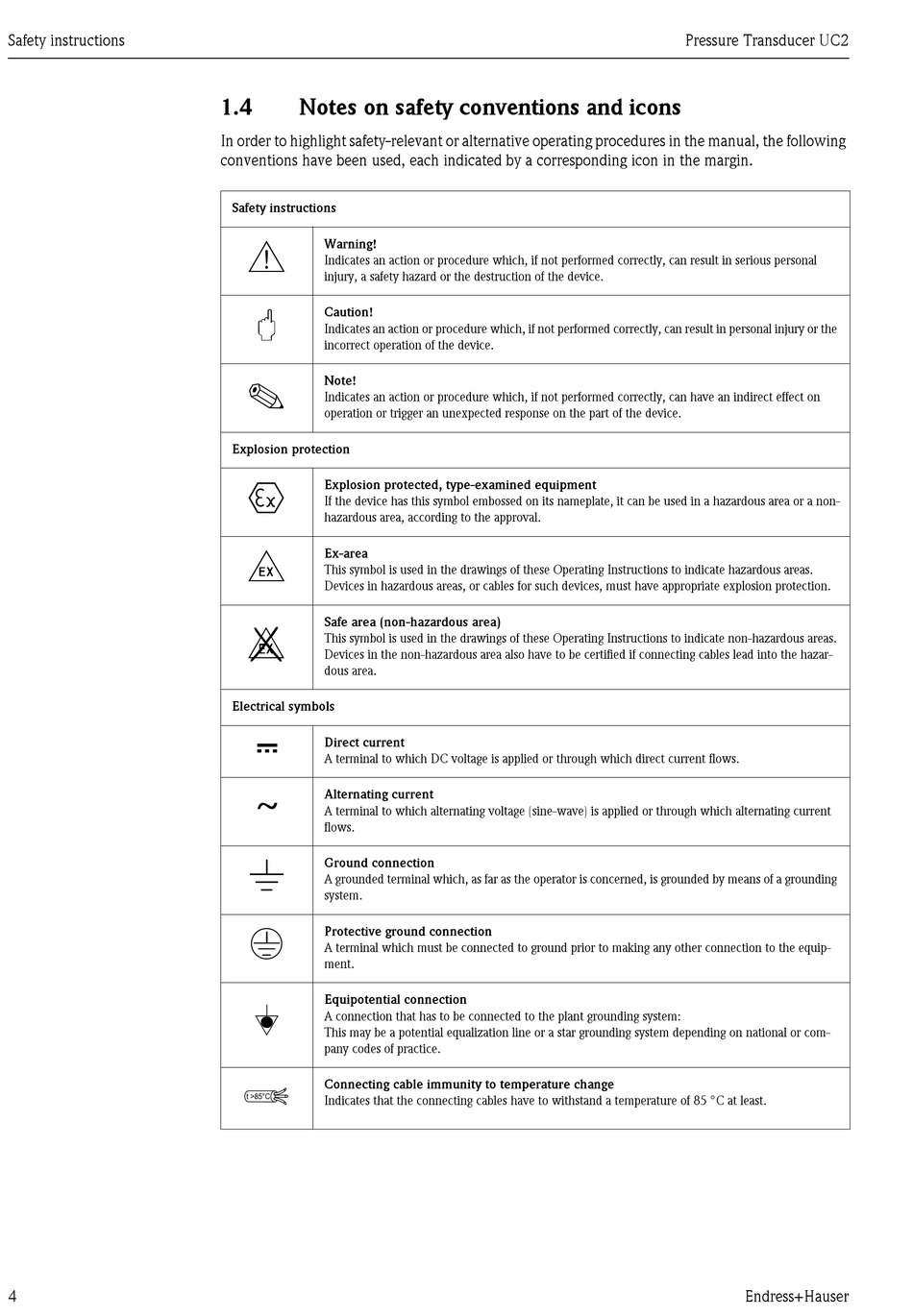

Notes on safety conventions and icons

In order to highlight safety-relevant or alternative operating procedures in the manual, the following
conventions have been used, each indicated by a corresponding icon in the margin.
Safety instructions
#
Warning!
Indicates an action or procedure which, if not performed correctly, can result in serious personal
injury, a safety hazard or the destruction of the device.
"
Caution!
Indicates an action or procedure which, if not performed correctly, can result in personal injury or the
incorrect operation of the device.
!
Note!
Indicates an action or procedure which, if not performed correctly, can have an indirect effect on
operation or trigger an unexpected response on the part of the device.
Explosion protection
0
Explosion protected, type-examined equipment
If the device has this symbol embossed on its nameplate, it can be used in a hazardous area or a non-
hazardous area, according to the approval.
-
Ex-area
This symbol is used in the drawings of these Operating Instructions to indicate hazardous areas.
Devices in hazardous areas, or cables for such devices, must have appropriate explosion protection.
Safe area (non-hazardous area)
.
This symbol is used in the drawings of these Operating Instructions to indicate non-hazardous areas.
Devices in the non-hazardous area also have to be certified if connecting cables lead into the hazar-
dous area.
Electrical symbols
%
Direct current
A terminal to which DC voltage is applied or through which direct current flows.
&
Alternating current
A terminal to which alternating voltage (sine-wave) is applied or through which alternating current
flows.
)
Ground connection
A grounded terminal which, as far as the operator is concerned, is grounded by means of a grounding
system.
*
Protective ground connection
A terminal which must be connected to ground prior to making any other connection to the equip-
ment.
Equipotential connection
+
A connection that has to be connected to the plant grounding system:
This may be a potential equalization line or a star grounding system depending on national or com-
pany codes of practice.
Connecting cable immunity to temperature change
t >85°C
Indicates that the connecting cables have to withstand a temperature of 85 °C at least.
