PegaSys Wall reader stainless steel/
pin code 2.1/4.1
Feedback signals
1 × beep (high tone)
1 × beep (low tone)

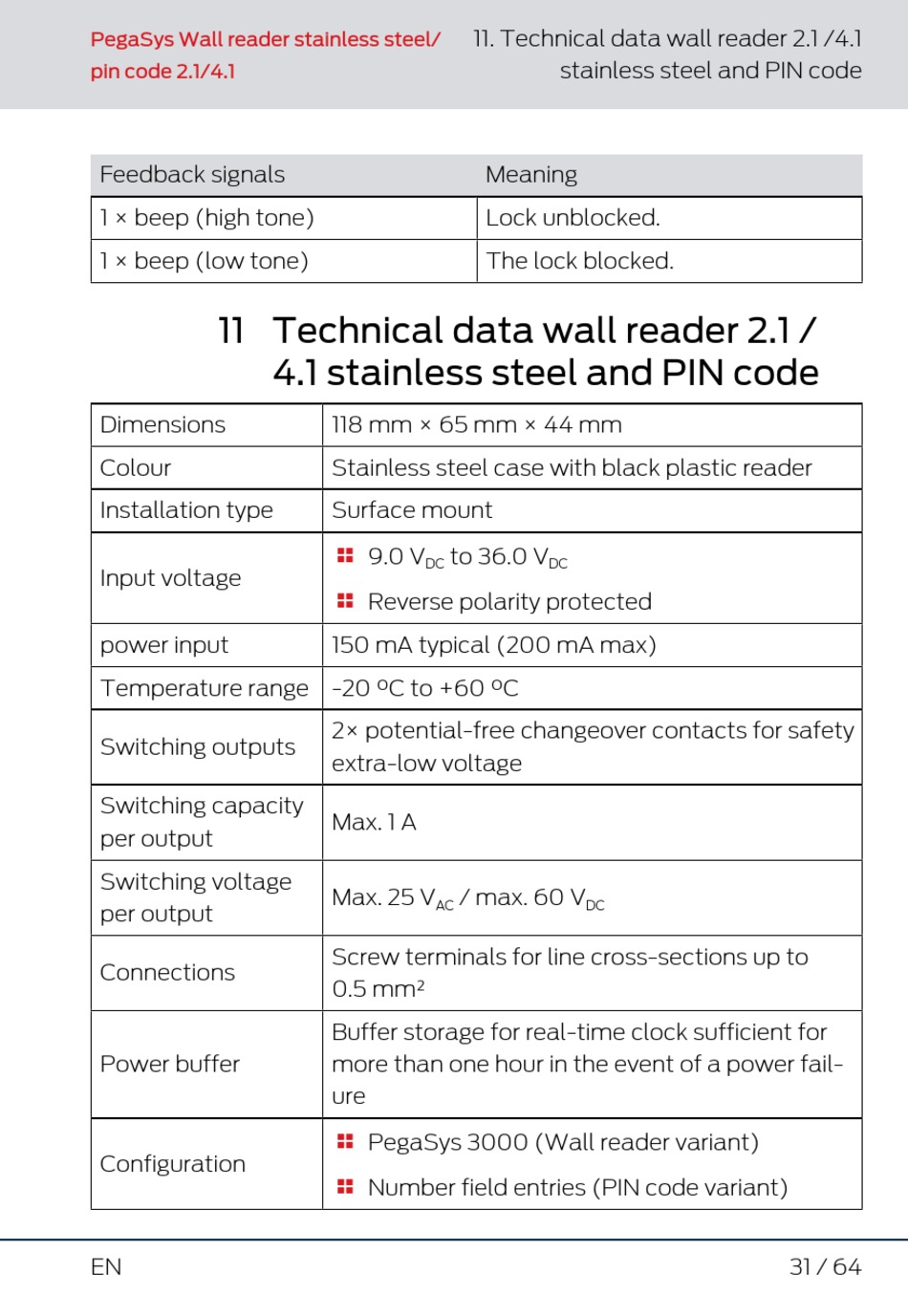

11 Technical data wall reader 2.1 /
Dimensions
Colour
Installation type
Input voltage
power input
Temperature range -20 °C to +60 °C
Switching outputs
Switching capacity
per output
Switching voltage
per output
Connections
Power buffer
Configuration
EN
4.1 stainless steel and PIN code
118 mm × 65 mm × 44 mm
Stainless steel case with black plastic reader
Surface mount
9.0 V

DC
Reverse polarity protected

150 mA typical (200 mA max)
2× potential-free changeover contacts for safety
extra-low voltage
Max. 1 A
Max. 25 V
AC
Screw terminals for line cross-sections up to
0.5 mm²
Buffer storage for real-time clock sufficient for
more than one hour in the event of a power fail-
ure
PegaSys 3000 (Wall reader variant)

Number field entries (PIN code variant)

11. Technical data wall reader 2.1 /4.1
stainless steel and PIN code
Meaning
Lock unblocked.
The lock blocked.
to 36.0 V
DC
/ max. 60 V
DC
31 / 64
