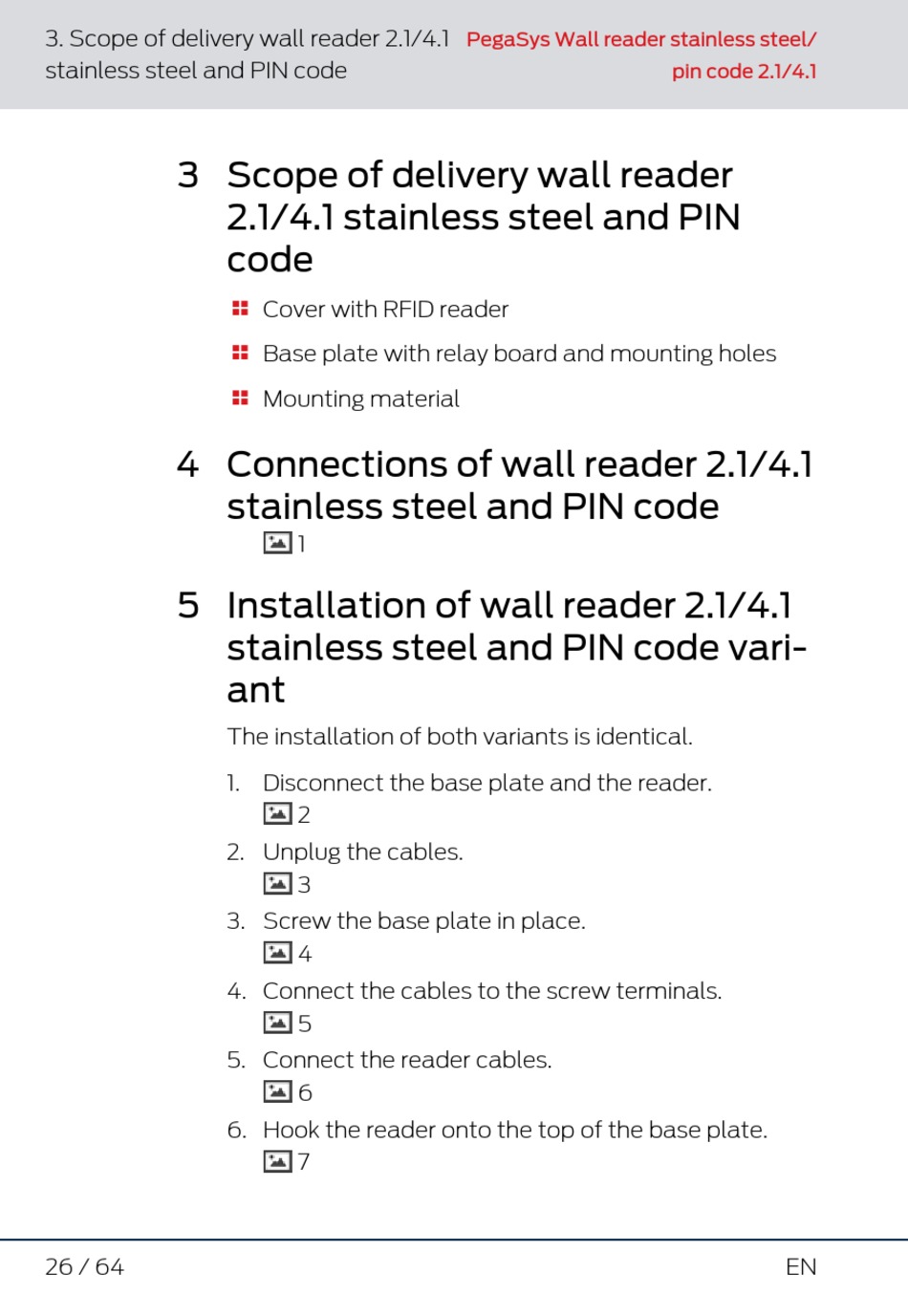

3. Scope of delivery wall reader 2.1/4.1
stainless steel and PIN code
3 Scope of delivery wall reader
4 Connections of wall reader 2.1/4.1
5 Installation of wall reader 2.1/4.1
26 / 64
2.1/4.1 stainless steel and PIN
code
Cover with RFID reader

Base plate with relay board and mounting holes

Mounting material

stainless steel and PIN code
1
stainless steel and PIN code vari-
ant
The installation of both variants is identical.
1. Disconnect the base plate and the reader.
2
2. Unplug the cables.
3
3. Screw the base plate in place.
4
4. Connect the cables to the screw terminals.
5
5. Connect the reader cables.
6
6. Hook the reader onto the top of the base plate.
7
