Simons Voss Technologies PegaSys 2.1 Kurzanleitung Seite 3

PegaSys Wall reader stainless steel/
pin code 2.1/4.1
4
1
5
2
Abbildungen/Images

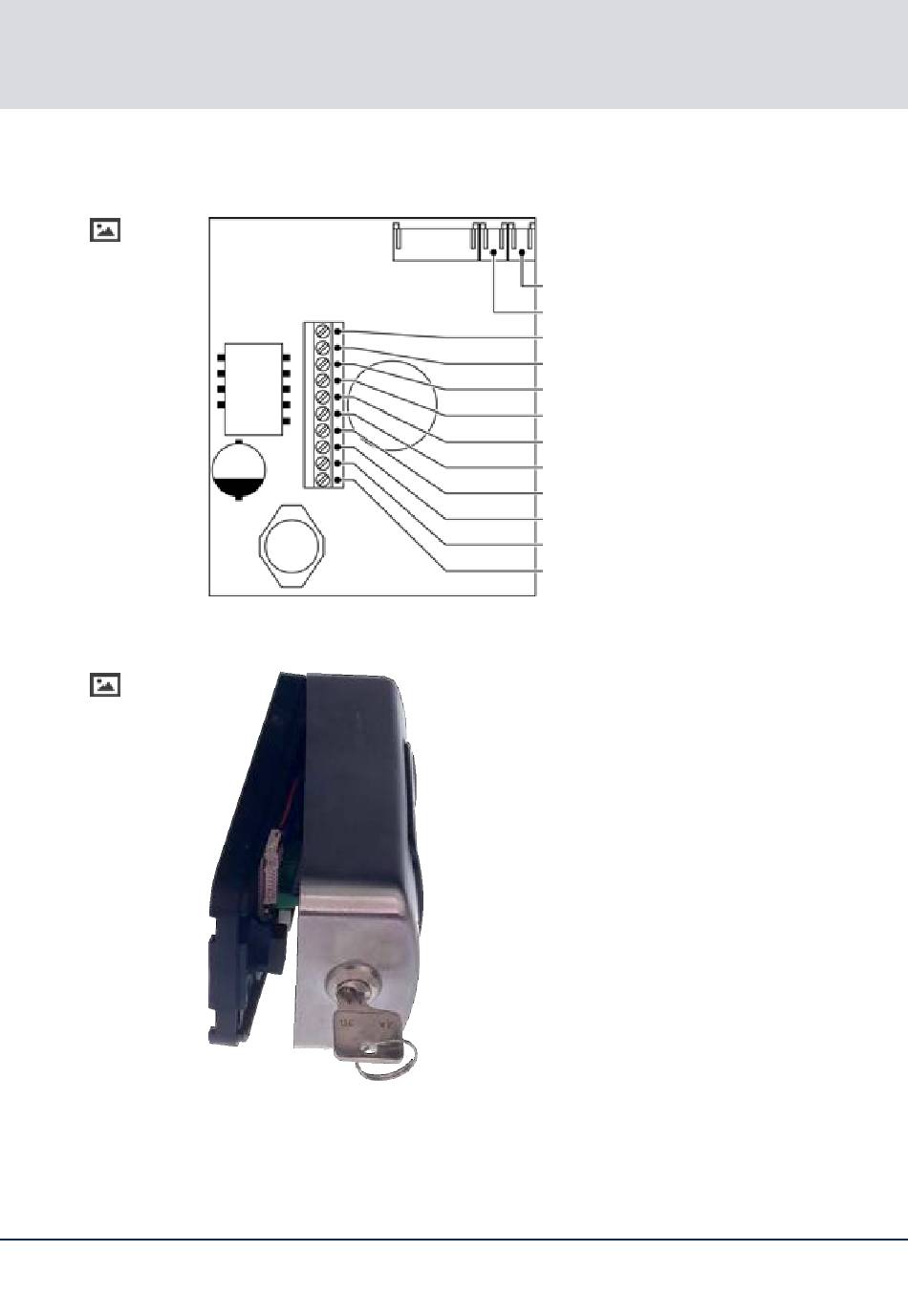

Connections of wall reader 2.1/4.1 stainless steel and
PIN code
Installation of wall reader 2.1/4.1 stainless steel and
PIN code variant
4. Connections of wall reader 2.1/4.1
stainless steel and PIN code
RFID module cable (red-black)
RFID module cable (blue-brown)
10: Input/output (optional)
9: Input/output (optional)
8: NO contact 2
7: COM contact 2
6: NC contact 2
5: NO contact 1
4: COM contact 1
3: NC contact 1
2: 9-36 VDC (max. 150 mA)
1: Earth
3 / 64
