Installation instructions, only for experts
2. FITTING INSTRUCTIONS

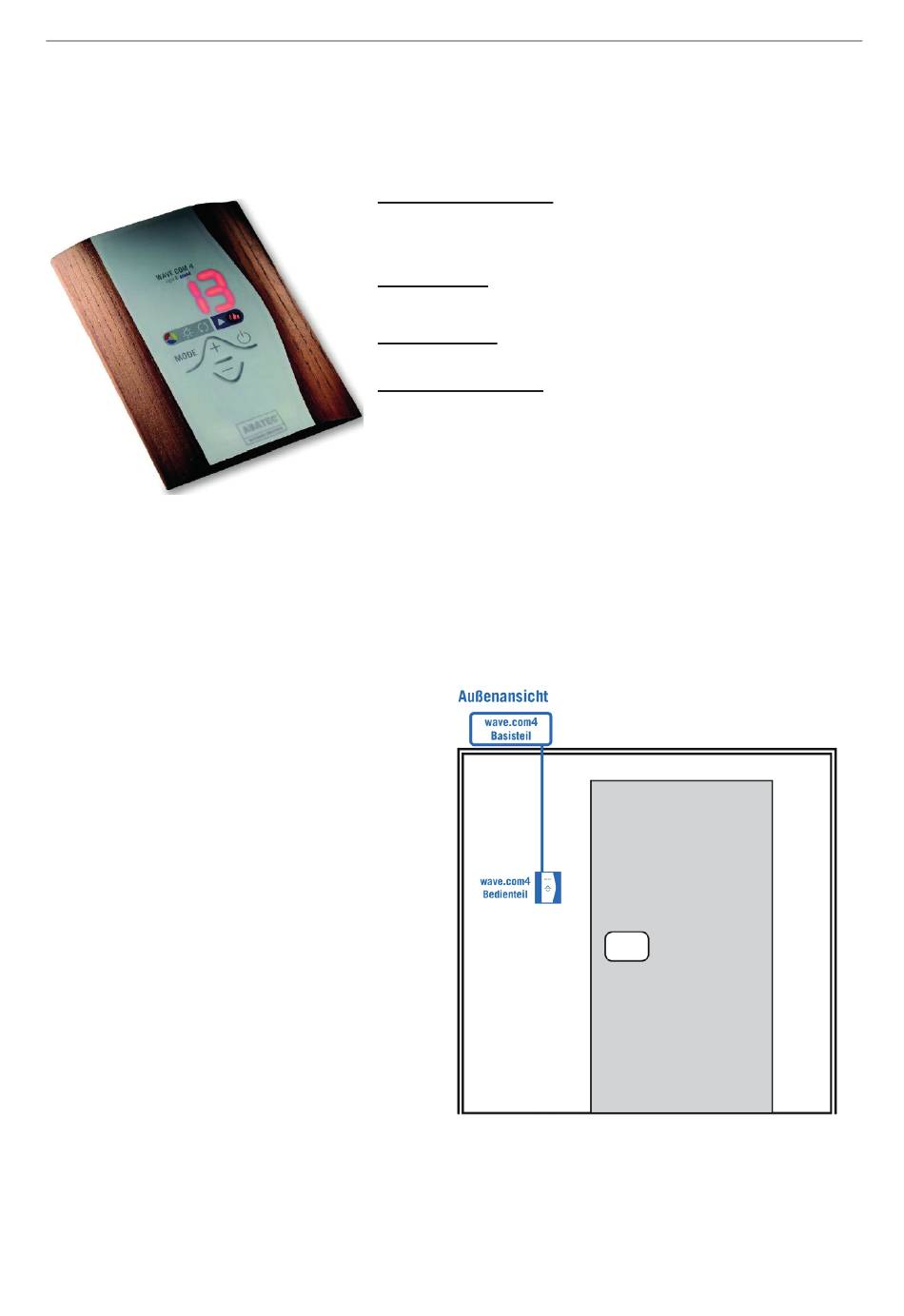

2.1. DIMENSIONS / FITTING OPERATING ELEMENT + USB DOCK
Insert the colour operating element into the fitting hole and fasten to the sauna
wall using the 4 screws supplied. The operating element can be fitted either
outside or inside the sauna cabin.
2.2. FITTING THE CONTROL ELEMENT
The power element is fitted preferably
on the part of the cabin roof where
the cables come together (see Figure
1). Open the housing. The cover can
be removed. The electrical connec-
tion must comply with standards. The
connection diagram is described in
Chapter 4.1.
Figure 1: Fitting the control element
WORLD OF WELLNESS
Operating element: L x W x D = 120 x 92 x 44,5 mm;
~200 g without cable and loose; differences possible
depending on customer finishes.
USB DOCK:
Recess size:
Fitting suggestion:
To fit the operating element, a normal hole cutter Ø
70 mm is required.
L x W x D= 30 x 92 x 9.5 mm
40 x 25 mm
