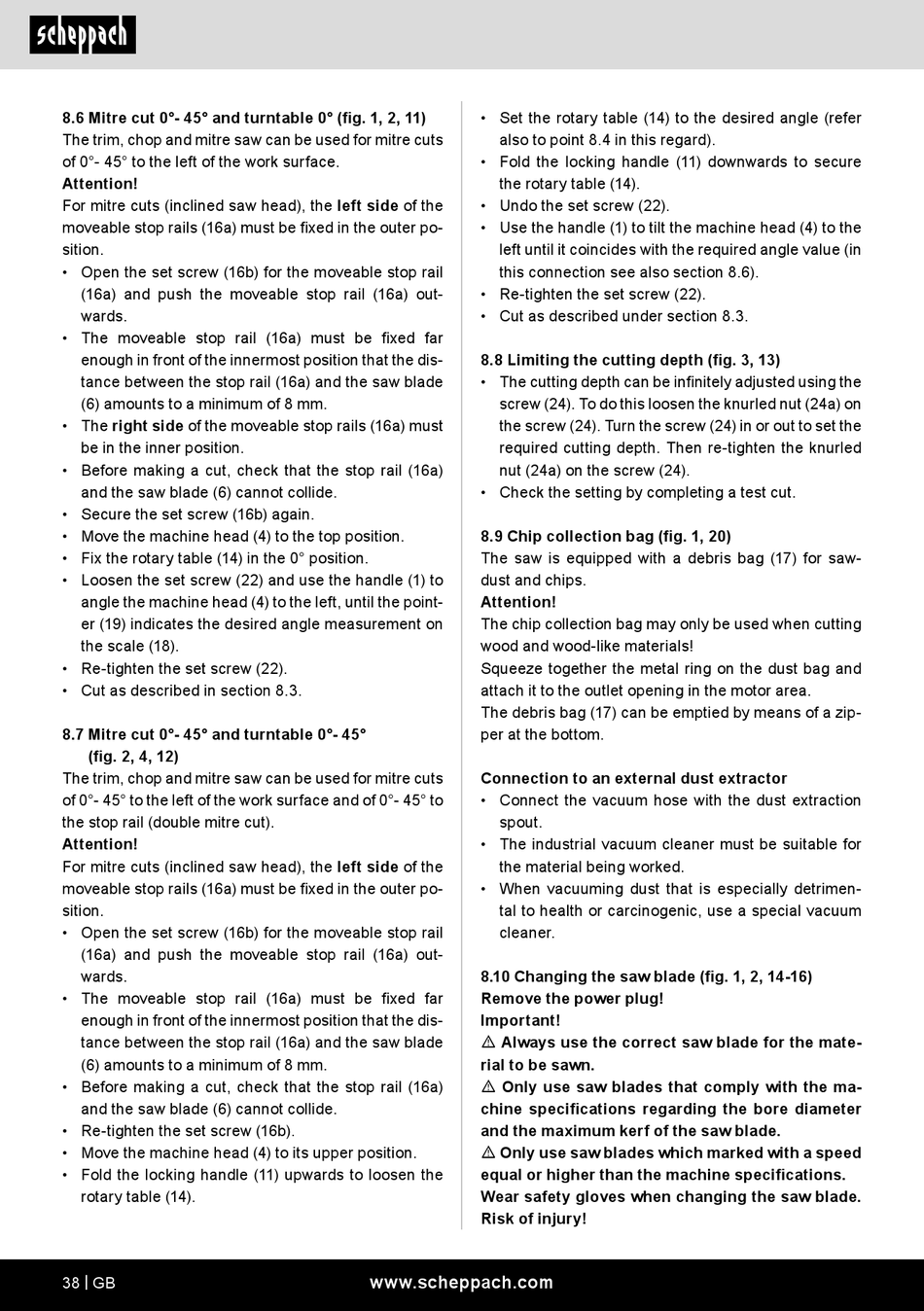

8.6 Mitre cut 0°- 45° and turntable 0° (fig. 1, 2, 11)
The trim, chop and mitre saw can be used for mitre cuts
of 0°- 45° to the left of the work surface.
Attention!
For mitre cuts (inclined saw head), the left side of the
moveable stop rails (16a) must be fixed in the outer po-
sition.
• Open the set screw (16b) for the moveable stop rail
(16a) and push the moveable stop rail (16a) out-
wards.
• The moveable stop rail (16a) must be fixed far
enough in front of the innermost position that the dis-
tance between the stop rail (16a) and the saw blade
(6) amounts to a minimum of 8 mm.
• The right side of the moveable stop rails (16a) must
be in the inner position.
• Before making a cut, check that the stop rail (16a)
and the saw blade (6) cannot collide.
• Secure the set screw (16b) again.
• Move the machine head (4) to the top position.
• Fix the rotary table (14) in the 0° position.
• Loosen the set screw (22) and use the handle (1) to
angle the machine head (4) to the left, until the point-
er (19) indicates the desired angle measurement on
the scale (18).
• Re-tighten the set screw (22).
• Cut as described in section 8.3.
8.7 Mitre cut 0°- 45° and turntable 0°- 45°
(fig. 2, 4, 12)
The trim, chop and mitre saw can be used for mitre cuts
of 0°- 45° to the left of the work surface and of 0°- 45° to
the stop rail (double mitre cut).
Attention!
For mitre cuts (inclined saw head), the left side of the
moveable stop rails (16a) must be fixed in the outer po-
sition.
• Open the set screw (16b) for the moveable stop rail
(16a) and push the moveable stop rail (16a) out-
wards.
• The moveable stop rail (16a) must be fixed far
enough in front of the innermost position that the dis-
tance between the stop rail (16a) and the saw blade
(6) amounts to a minimum of 8 mm.
• Before making a cut, check that the stop rail (16a)
and the saw blade (6) cannot collide.
• Re-tighten the set screw (16b).
• Move the machine head (4) to its upper position.
• Fold the locking handle (11) upwards to loosen the
rotary table (14).
38 | GB
• Set the rotary table (14) to the desired angle (refer
also to point 8.4 in this regard).
• Fold the locking handle (11) downwards to secure
the rotary table (14).
• Undo the set screw (22).
• Use the handle (1) to tilt the machine head (4) to the
left until it coincides with the required angle value (in
this connection see also section 8.6).
• Re-tighten the set screw (22).
• Cut as described under section 8.3.
8.8 Limiting the cutting depth (fig. 3, 13)
• The cutting depth can be infinitely adjusted using the
screw (24). To do this loosen the knurled nut (24a) on
the screw (24). Turn the screw (24) in or out to set the
required cutting depth. Then re-tighten the knurled
nut (24a) on the screw (24).
• Check the setting by completing a test cut.
8.9 Chip collection bag (fig. 1, 20)
The saw is equipped with a debris bag (17) for saw-
dust and chips.
Attention!
The chip collection bag may only be used when cutting
wood and wood-like materials!
Squeeze together the metal ring on the dust bag and
attach it to the outlet opening in the motor area.
The debris bag (17) can be emptied by means of a zip-
per at the bottom.
Connection to an external dust extractor
• Connect the vacuum hose with the dust extraction
spout.
• The industrial vacuum cleaner must be suitable for
the material being worked.
• When vacuuming dust that is especially detrimen-
tal to health or carcinogenic, use a special vacuum
cleaner.
8.10 Changing the saw blade (fig. 1, 2, 14-16)
Remove the power plug!
Important!
m Always use the correct saw blade for the mate-
rial to be sawn.
m Only use saw blades that comply with the ma-
chine specifications regarding the bore diameter
and the maximum kerf of the saw blade.
m Only use saw blades which marked with a speed
equal or higher than the machine specifications.
Wear safety gloves when changing the saw blade.
Risk of injury!
